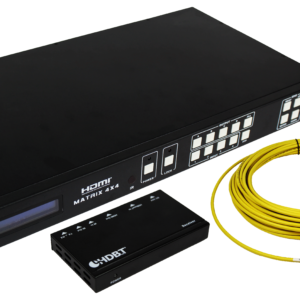

HDBaseT 4×4 HDMI Matrix Switcher Kit

SKU: 79055-K

79055-K_1 zoom

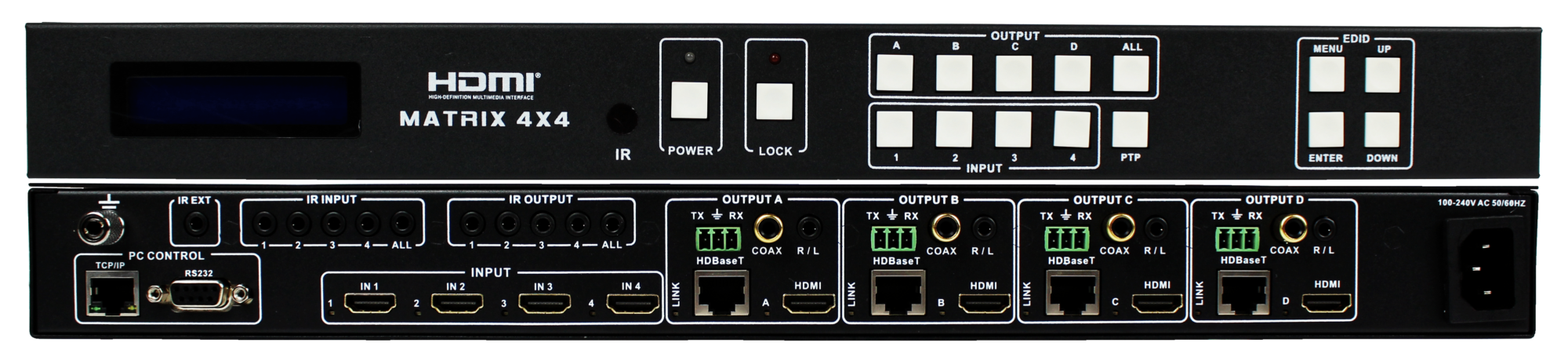

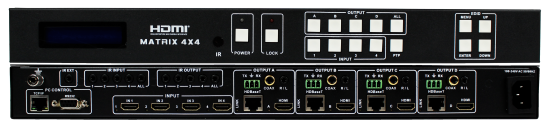

79055-H_frontback zoom

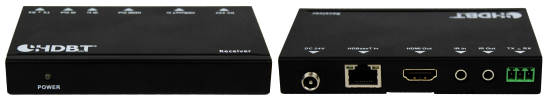

79055-H-RX_frontback_sbs zoom

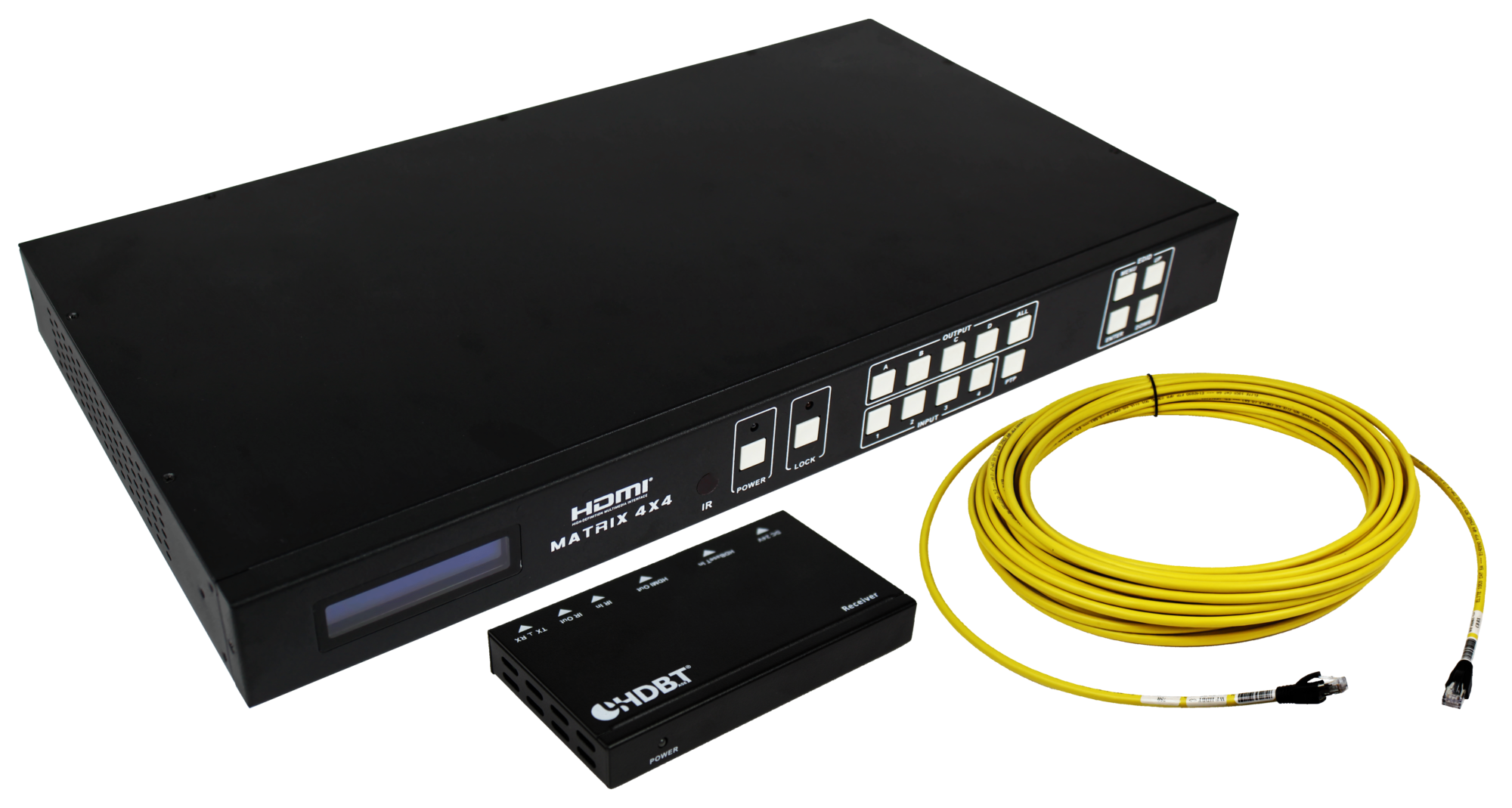

79055-K_1

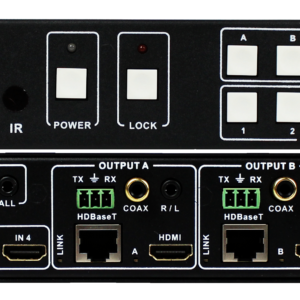

79055-H_frontback
79055-H-RX_frontback_sbs
Full Screen

Features

  • Supports resolutions up to 4Kx2K@30Hz
  • HDBaseT outputs capable of transmitting video, audio, and control signals up to 230ft (70m)
  • 4 HDMI inputs switched to 4 pairs of mirrored HDBase-T/HDMI outputs
  • Controllable via IR remote, RS-232, TCP/IP, and front panel buttons
  • 1U rack-mountable form factor
Contact a Sales Rep

Description

The HDBase-T 4×4 HDMI Matrix with simultaneous HDBaseT and HDMI outputs connects four HDMI sources to eight displays. This matrix features four HDMI outputs and each HDMI output is mirrored to provide a CAT-Cable output which runs simultaneously. Any source is accessible at all times by any display by selecting it via the supplied IR Remote Control, RS-232, TCP/IP or by using the selection buttons on the front panel. This device supports High Definition Audio and 3D signal compatibility.

Kit includes:

  • 1x 79055-H 4×4 Matrix Switcher
  • 4x HDBase-T Lite PoH-Compatible Receivers
  • 4x 75 ft. Premium, Plenum-Rated HDBase-T Cables
4x4 HDBaseT/HDMI Matrix Switcher Kit Part Number: 79055-K
Inputs 4 HDMI (Female)
Outputs 4 HDMI (Female, mirrored w/ HDBaseT) 4 HDBaseT (RJ45 Female, mirrored w/ HDMI)
Supported Resolutions 4Kx2K@30Hz, 1080p@60/50/30/24Hz, 1080i, 720p, 576p, 480p, 576i, 480i
Included Hardware 4 Plenum-Rated, Shielded HDBaseT Cables (75 ft. / 23m) 4 PoH-Capable HDBaseT Lite Receivers
Name
Category
Last Updated
Download

79055-K Data Sheet

Data Sheets
09/09/2019
Data Sheets

TFX-OAU Audio output card with EQ Control

SKU: 79250

TFX-IBT+ 4K HDBaseT 100m PoE Input Card

SKU: 79253

TekFlex-32 Flexible Matrix

SKU: 79202

MV71 4K Multiviewer Switcher

SKU: 79064
Summary

The HDBase-T 4x4 HDMI Matrix with simultaneous HDBaseT and HDMI outputs connects four HDMI sources to eight displays. This matrix features four HDMI outputs and each HDMI output is mirrored to provide a CAT-Cable output which runs simultaneously. Any source is accessible at all times by any display by selecting it via the supplied IR Remote Control, RS-232, TCP/IP or by using the selection buttons on the front panel. This device supports High Definition Audio and 3D signal compatibility.

Kit includes:

  • 1x 79055-H 4x4 Matrix Switcher
  • 4x HDBase-T Lite PoH-Compatible Receivers
  • 4x 75 ft. Premium, Plenum-Rated HDBase-T Cables
Specifications
4x4 HDBaseT/HDMI Matrix Switcher Kit Part Number: 79055-K
Inputs 4 HDMI (Female)
Outputs 4 HDMI (Female, mirrored w/ HDBaseT) 4 HDBaseT (RJ45 Female, mirrored w/ HDMI)
Supported Resolutions 4Kx2K@30Hz, 1080p@60/50/30/24Hz, 1080i, 720p, 576p, 480p, 576i, 480i
Included Hardware 4 Plenum-Rated, Shielded HDBaseT Cables (75 ft. / 23m) 4 PoH-Capable HDBaseT Lite Receivers
