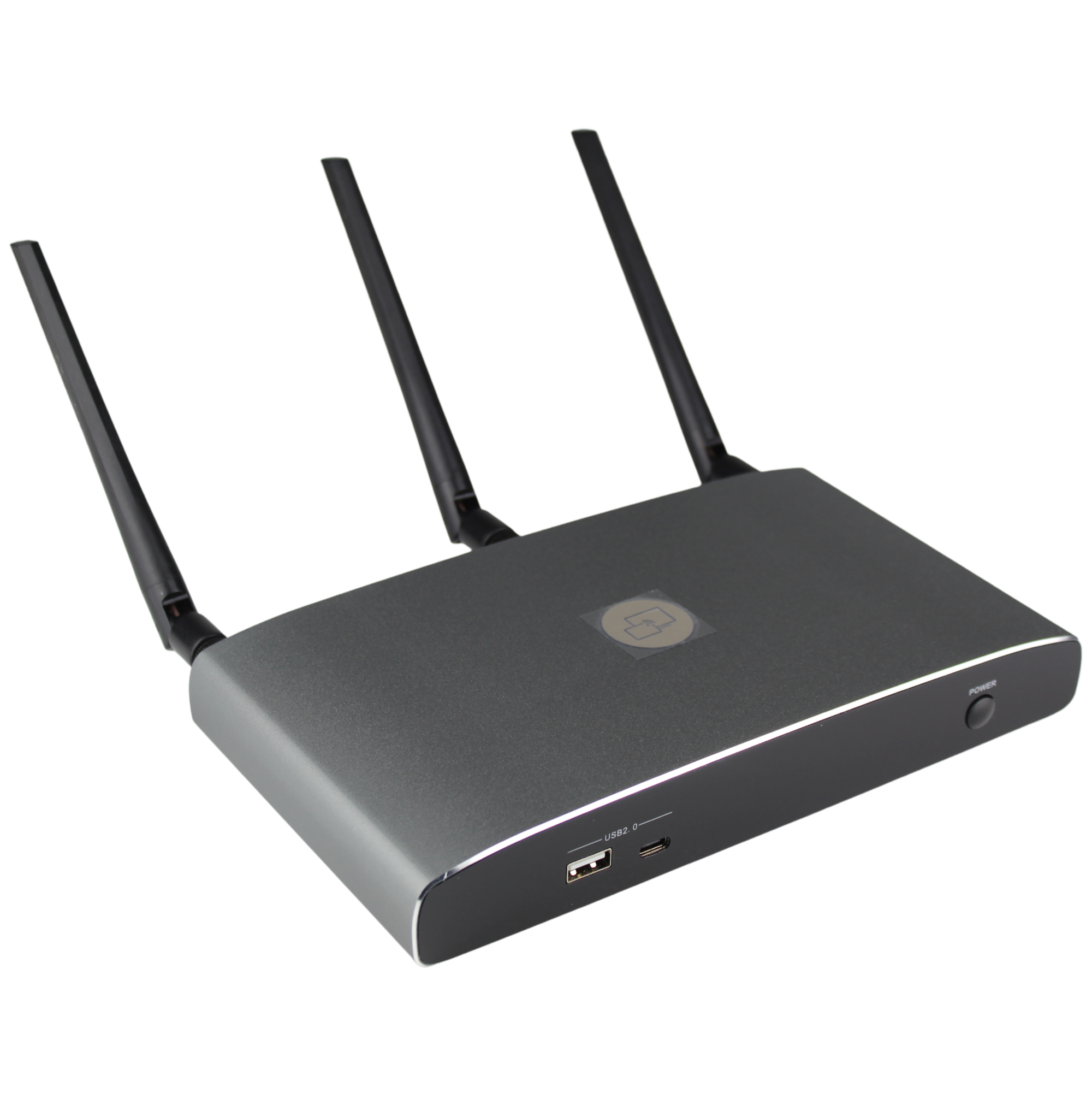

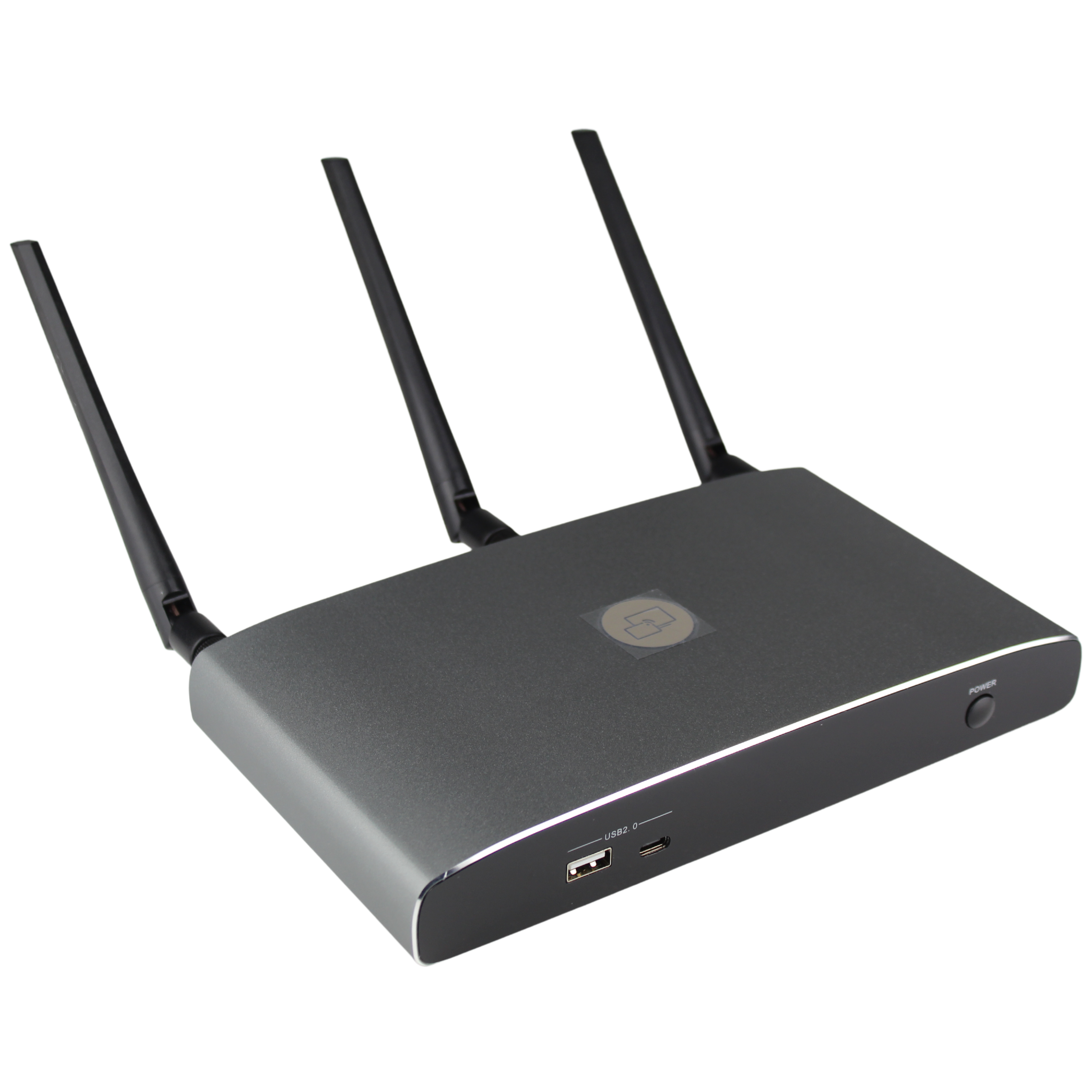

ShareView Wireless Pro Presentation System

SKU: 79060-WPSPro

79060-WPSPro_1-Web zoom
79060-WPSPro_back-Web zoom
79060-WPSPro_1-Web
79060-WPSPro_back-Web
Full Screen

Features

  • Wireless video conferencing, BYOM, and local presentation
  • Supports Apple AirPlay, Android Miracast, and Chromecast
  • USB passthrough for wireless access to room camera(s), microphone(s), and interactive display(s)
  • Supports HDMI 2.0 and video resolutions up to 4K @ 60Hz
  • Seamless multiview for viewing up to 4 sources at once
  • Supports PoE and multiple infrastructure modes for universal compatibility
Buy on Dealer StoreContact a Sales Rep

Description

The ShareView Wireless Pro offers professional-quality presentation, multiview, and BYOM (Bring Your Own Meeting) video conferencing, all completely wireless. Users can wirelessly present content from their laptop or tablet using the HDMI or USB-C dongle, or by a free application. The ShareView Wireless Pro supports 1080P resolution, up to 16 users presenting simultaneously, and seamless switching. Laptops connected wirelessly to a display via the ShareView Wireless Pro can access a single USB camera with a separate USB microphone connected to the base receiver unit. Presenters can control any wirelessly-connected device via an interactive display or a mouse connected to the base unit.

With the ShareView Wireless Pro, users can enjoy wireless, plug-and-play, seamless presentation, and BYOM video conferencing with a wealth of premium features and advanced functionality.

Video Output 1 HDMI (19-pin, female)
Output Resolution Up to 3840×2160 @ 60Hz
Input Resolutions Up to 1080p @ 60Hz
Audio Output 1 LINE Out (3.5mm mini jack) 1 HDMI Embedded Audio (19-pin, female)
USB Camera Resolution Up to 1080p @ 30Hz (MJPG)
Wi-Fi Data Rate Up to 1200 Mbps
Temperature -4 ~ 113°F (-20 ~ 45°C)
Humidity 20 ~ 85%
Power Supply Input: 100 ~ 240 VAC, 50/60Hz Output: DC 12V, 1.5AORPoE (IEEE.3AF or IEEE802.3AT)
Power Consumption 10W (max)
Product Dimensions 8.66” (220mm) x 4.72” (120mm) x 1.61” (41mm)
Product Weight 2.09 lbs. (950g)
Compliances HDMI 1.4/2.0 HDCP 1.4/2.2
Name
Category
Last Updated
Download

79060-WPSPro ShareView Wireless Pro Data Sheet

Data Sheets
01/19/2022
Data Sheets

TFX-OAU Audio output card with EQ Control

SKU: 79250

TFX-IUH 4K HDMI Input Card

SKU: 79230

TFX-IBT+ 4K HDBaseT 100m PoE Input Card

SKU: 79253

TPHD2-WP1 HDBase-T Wall Plate Transmitter

SKU: 79066
Summary

The ShareView Wireless Pro offers professional-quality presentation, multiview, and BYOM (Bring Your Own Meeting) video conferencing, all completely wireless. Users can wirelessly present content from their laptop or tablet using the HDMI or USB-C dongle, or by a free application. The ShareView Wireless Pro supports 1080P resolution, up to 16 users presenting simultaneously, and seamless switching. Laptops connected wirelessly to a display via the ShareView Wireless Pro can access a single USB camera with a separate USB microphone connected to the base receiver unit. Presenters can control any wirelessly-connected device via an interactive display or a mouse connected to the base unit.

With the ShareView Wireless Pro, users can enjoy wireless, plug-and-play, seamless presentation, and BYOM video conferencing with a wealth of premium features and advanced functionality.

Specifications
Video Output 1 HDMI (19-pin, female)
Output Resolution Up to 3840×2160 @ 60Hz
Input Resolutions Up to 1080p @ 60Hz
Audio Output 1 LINE Out (3.5mm mini jack) 1 HDMI Embedded Audio (19-pin, female)
USB Camera Resolution Up to 1080p @ 30Hz (MJPG)
Wi-Fi Data Rate Up to 1200 Mbps
Temperature -4 ~ 113°F (-20 ~ 45°C)
Humidity 20 ~ 85%
Power Supply Input: 100 ~ 240 VAC, 50/60Hz Output: DC 12V, 1.5AORPoE (IEEE.3AF or IEEE802.3AT)
Power Consumption 10W (max)
Product Dimensions 8.66” (220mm) x 4.72” (120mm) x 1.61” (41mm)
Product Weight 2.09 lbs. (950g)
Compliances HDMI 1.4/2.0 HDCP 1.4/2.2
