HD/1080p HDMI/USB PTZ Camera – 5x Zoom

SKU: 79068-HDMI/USB-5

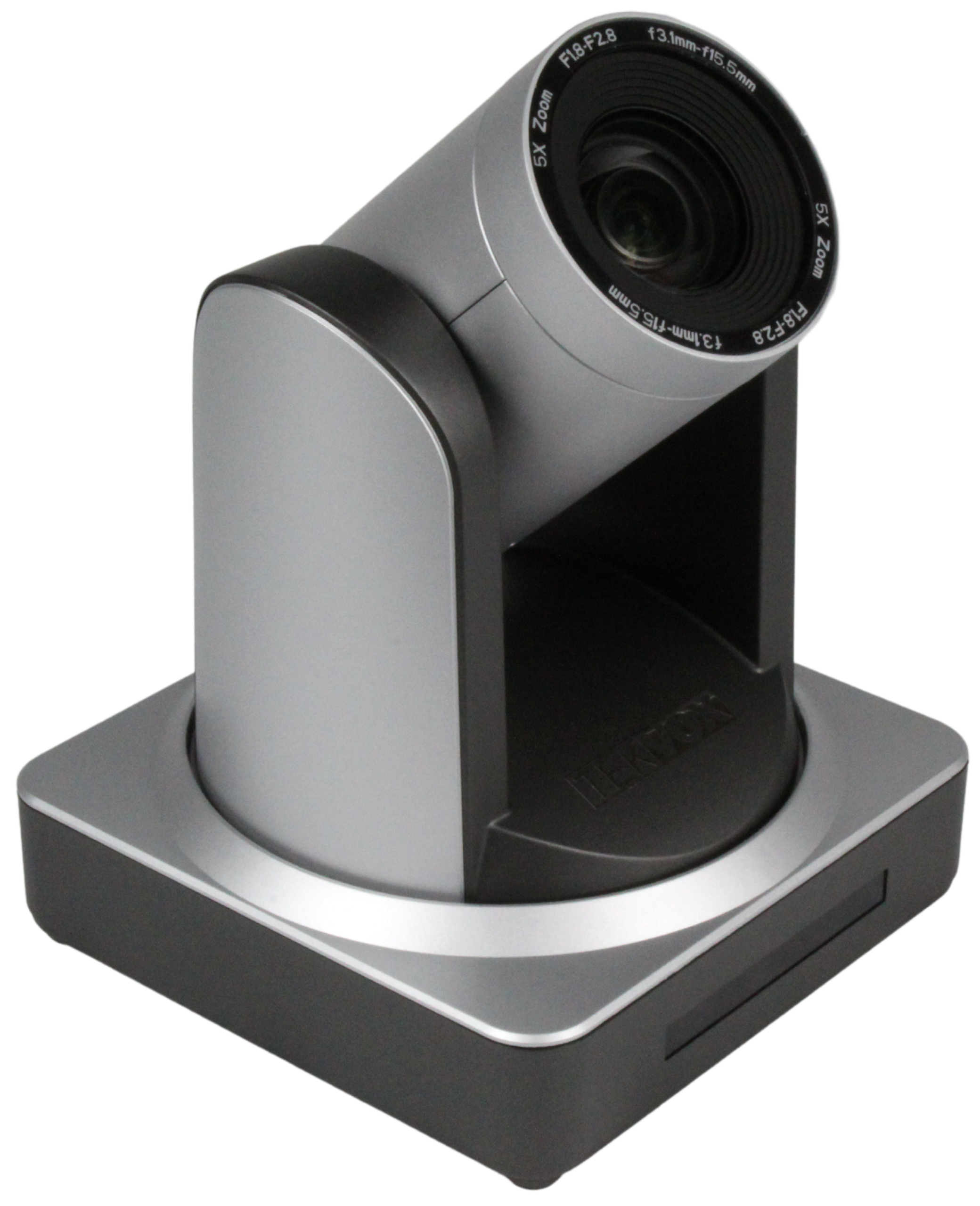

79068-HDMI_USB-5_1 zoom

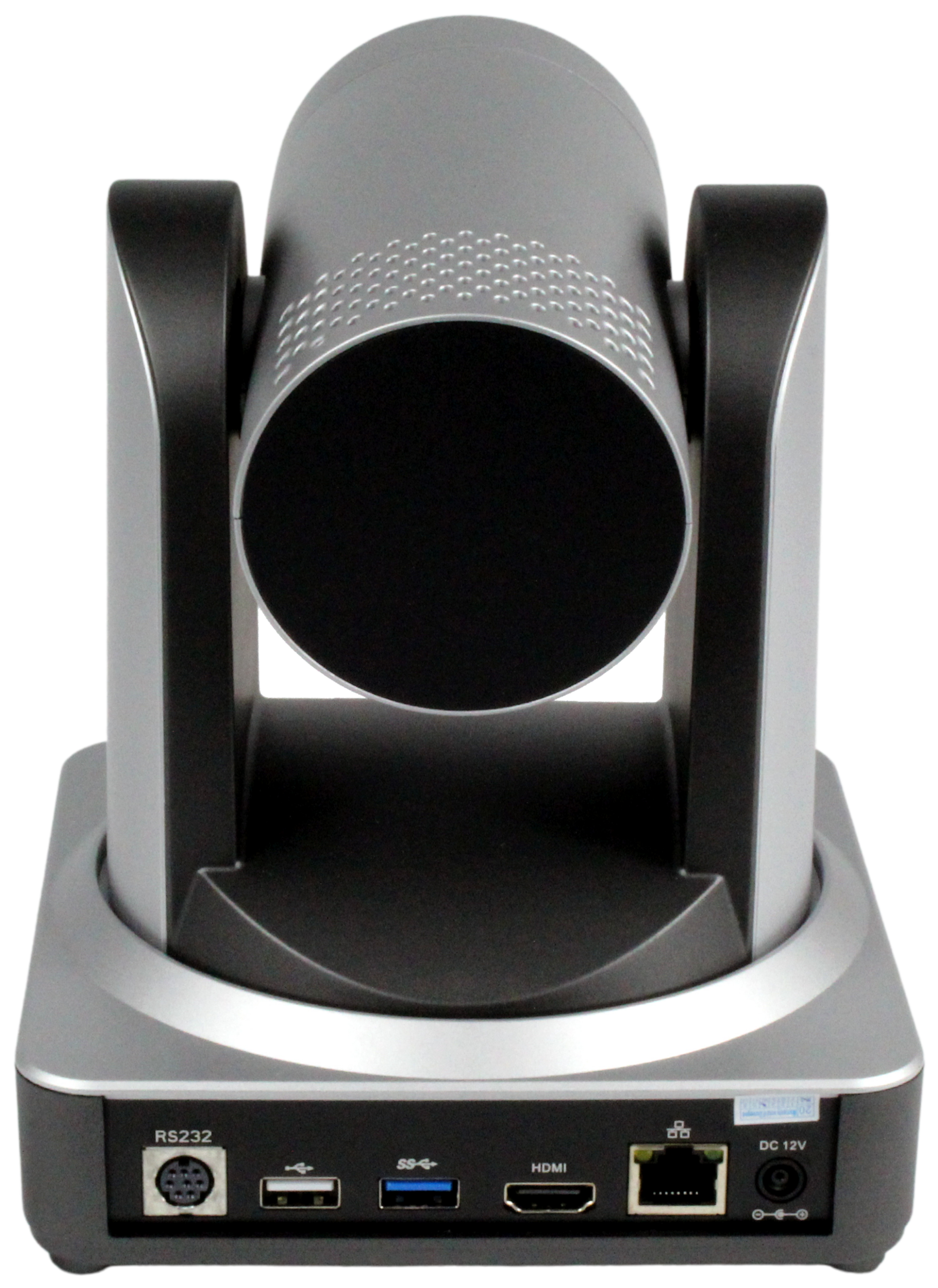

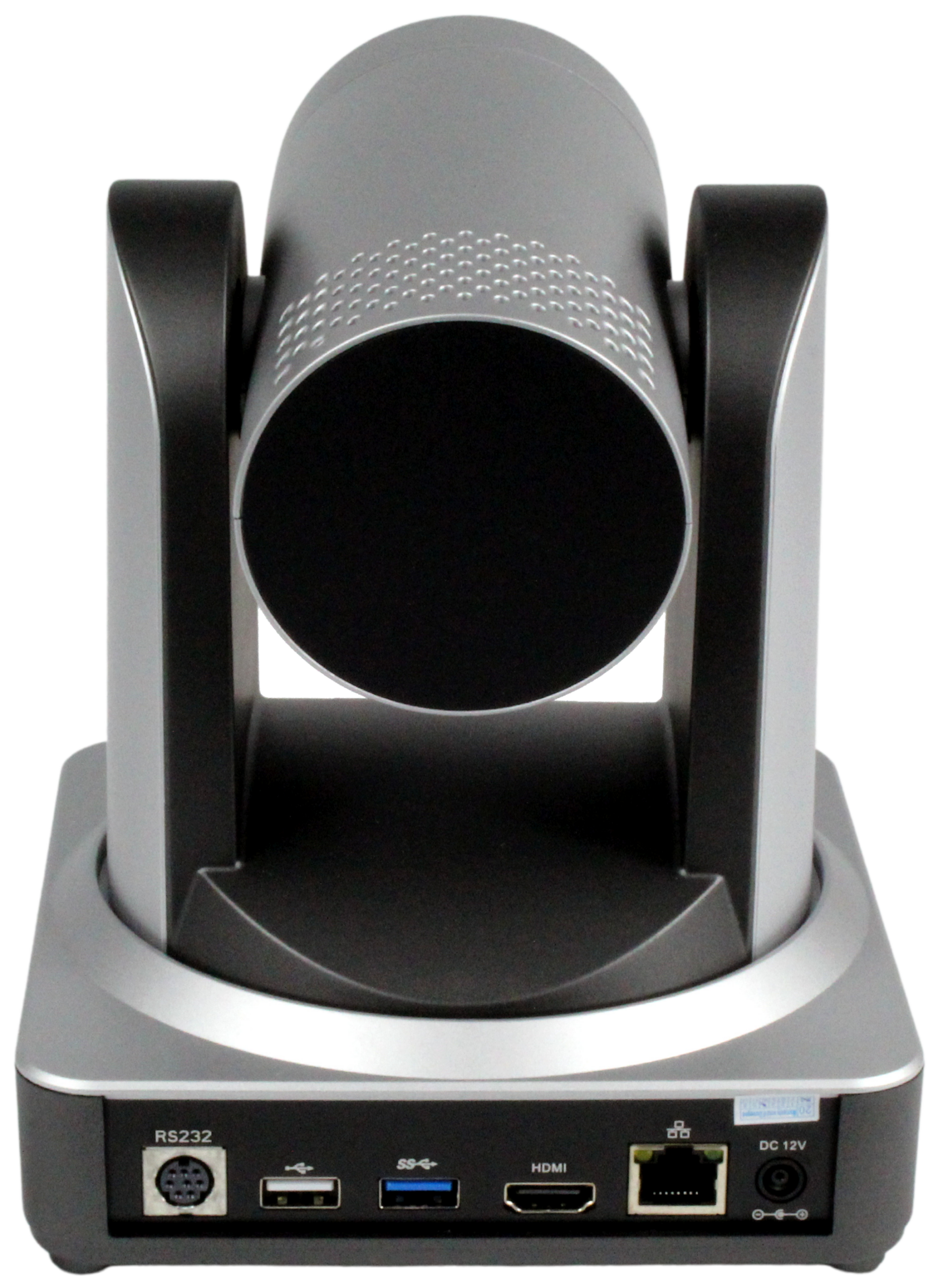

79068-HDMIUSB-5_Back zoom
79068-HDMI_USB-5_1
79068-HDMIUSB-5_Back
Full Screen

Features

  • 5x optical zoom and 10x digital zoom
  • Simultaneous HDMI, USB 2.0, and USB 3.0 video outputs
  • Advanced image correction, noise reduction, and backlight compensation
  • 255 programmable presets for customized operation
  • Controllable via RS-232/RS-485 commands, IR remote, or TCP/IP protocols
Buy on Dealer StoreContact a Sales Rep

Description

TEKVOX’s 79068-HDMI/USB cameras are high-definition HDMI 1080p@60Hz PTZ cameras with 5x or 20x optical zoom lenses. With a 16:9 aspect ratio, 2.1 Megapixel CCD, and 255 programmable presets, these cameras make an excellent choice for any class or conference room. Thanks to its wide field of view, the 79068-HDMI/USB-5 is ideal for capturing footage of an entire room or area. The camera is compatible with Sony VISCA TCP/IP protocols, can stream to multiple points simultaneously using IP control, and offers some of the smoothest PTZ movement available on the market.

HDMI/USB PTZ Camera, 5x Optical Zoom Part Number: 79068-HDMI/USB-5
Sensor 1/2.8 inch high-quality CMOS
Effective Pixels 16:9, 2.07 megapixel
Inputs 1 Audio In (3.5mm mini jack)
Outputs 1 HDMI (19-pin, Female) 1 USB (Type-A, Female, USB 2.0) 1 USB (Type-A, Female, USB 3.0)
Output Resolution HDMI: Up to 1080p @ 60Hz USB 3.0: Up to 1920x1080p @ 60Hz USB 3.0 (Compatible with USB 2.0): Up to 960x540p @ 30Hz USB 2.0: Up to 1920x1080p @ 30Hz
Optical Zoom 5x (f = 3.6 ~ 18mm)
Digital Zoom 10x
View Angle 16.43° (tele) ~ 80.9° (wide)
Aperture Value (AV) F1.6 ~ F3.0
Pan Rotation ±170°
Tilt Rotation -30° ~ 90°
Presets 255 possible presets (10 presets by remote controller)
Control Ports 1 RS232 (8-pin Mini-DIN, Female) 1 TCP/IP (RJ45, Female)
Power Supply Input: 110~220 VAC Output: DC 12V, 2A
Power Consumption 12W (max)
Temperature 14 ~ 122°F (-10 ~ 50°C)
Humidity 20 ~ 80%
Product Dimensions 5.9" (150mm) x 5.9" (150mm) x 6.66" (167.5mm)
Product Weight 3.1 lbs. (1.4kg)
Name
Category
Last Updated
Download

79068 Camera User Manual

Manuals
06/19/2020
Manuals

79068-HDMI/USB Data Sheet

Data Sheets
07/06/2022
Data Sheets
