Wunderbar All-in-One Conferencing Bar

SKU: 79068-WB

79068-WB_1 zoom
79068-WB_back zoom
79068-WB_1
79068-WB_back
Full Screen

Features

  • All-in-one 4K camera, beamforming microphone, and full-frequency speakers
  • Dazzling video with 4K resolution, auto-tracking, and 5x digital zoom
  • Single USB 3.0 connection for unmatched convenience & ease of installation
  • Ultra–wide-angle field of view for capturing full-room video
  • Impressive versatility with multiple mounting options & joint HDMI/USB 3.0 outputs

Description

Ideal for small and medium conference rooms, the Wunderbar includes everything necessary for practical video-conferencing in a single, convenient package. With easy installation in mind, the Wunderbar can be mounted on a wall or table, and can connect to a videoconferencing PC via a single USB 3.0 cable.

The Wunderbar’s UHD camera dynamically tracks speakers to keep them in frame, and features an ultra-wide field of view and 5x digital zoom for stunning, reliable video. A beamforming microphone guarantees clear, full audio recording from anywhere in the room. Featuring three incredible technologies in one, the Wunderbar offers unmatched quality, convenience, and sophistication for an incredibly cost-effective price.

Wunderbar All-in-One Video Conferencing Bar Part Number: 79068-WB
Camera
Supported Resolutions Up to 4Kx2K @ 60Hz
Sensor 1/2.5 inch, CMOS, 8.51M pixel
Lens 120° (DFOV), 110° (HFOV) 5x digital zoom Pan/Tilt: ±15°
PTZ MPT & EPTZ
Digital Noise Reduction 2D & 3D Digital Noise Reduction
Signal-to-Noise Ratio (SNR) ≥55dB
Back-Light Compensation (BLC) Supported
Audio
Full-Frequency Speaker 96dB Sound Pressure Level (SPL) @ 0.5m
Microphone Array Beamforming microphone Pick-up Distance: Up to 20 feet (6m)
USB Features
Connection Type USB 3.0 (compatible with USB 2.0)
Video Compression Format YUY2 / MJPG / NV12
USB Audio 32k sampling rate Supports UAC 2.0
USB Communication Format UVC 1.1 ~ 1.5
UVC PTZ Control Supported
General

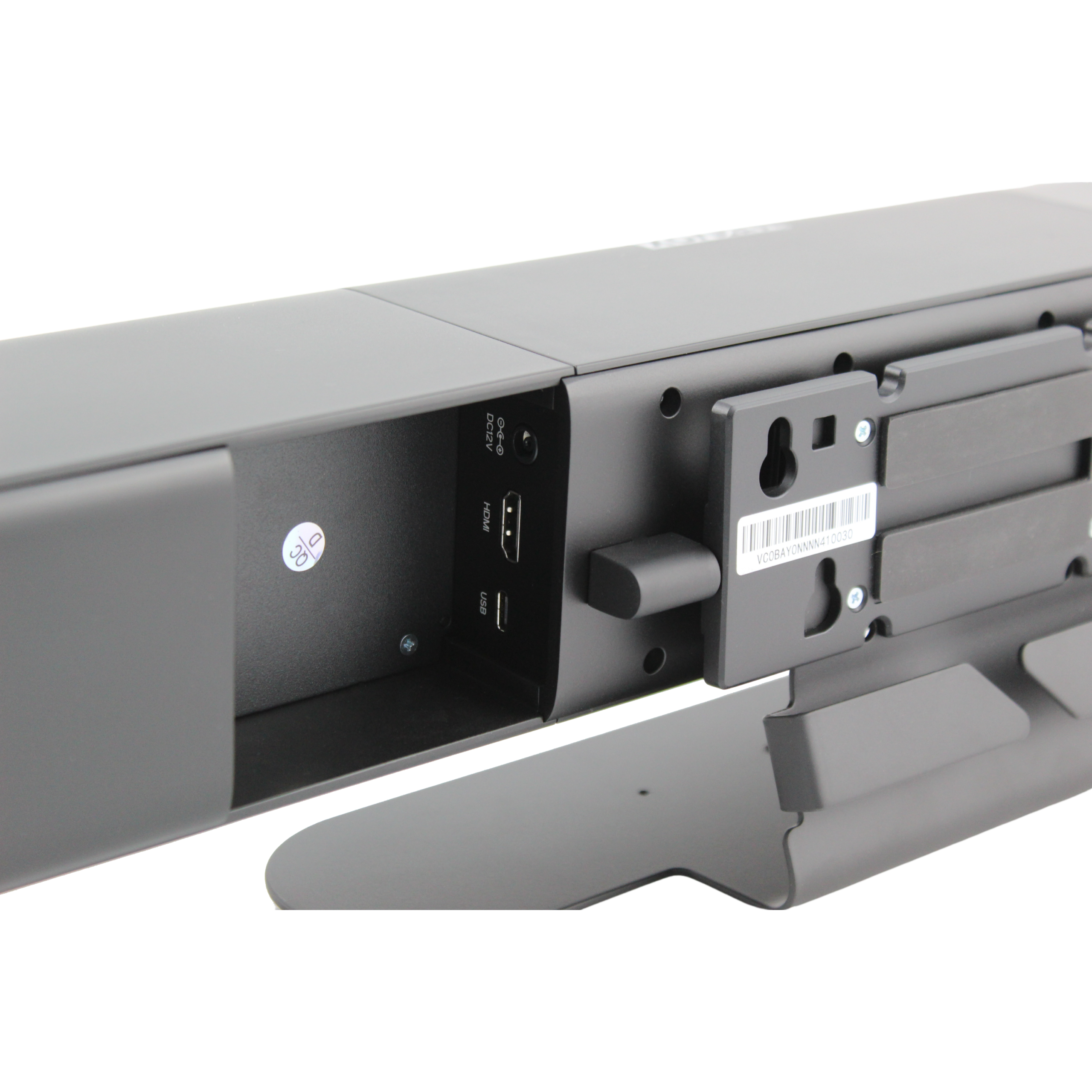

Input/Output Interfaces 1 HDMI (19-Pin, Female, Version 2.0) 1 USB 3.0 (Type-C) 1 USB 2.0 (Type-A)
Power Supply DC 12V, 1.5A (max)
Control Method 2.4G Remote Controller
Installation Method Desktop, wall, or other display device
Operating Temperature 32 ~ 104°F (0 ~ 40°C)
Storage Temperature -40 ~ 140°F (-40 ~ 60°C)
Product Dimensions 23.7" (601mm) x 5.6" (141mm) x 4.5" (151mm)
Product Weight 5.5 lbs. (2.5kg)
