FOUB30 Fiber USB Extender Set

SKU: 79521-S

79521-S zoom
Ex#####-TX_back zoom
Ex#####-RX_back zoom
79521-S

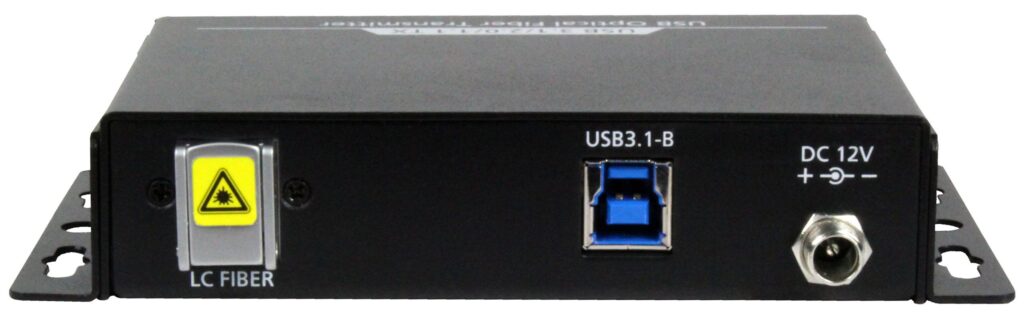

Ex#####-TX_back

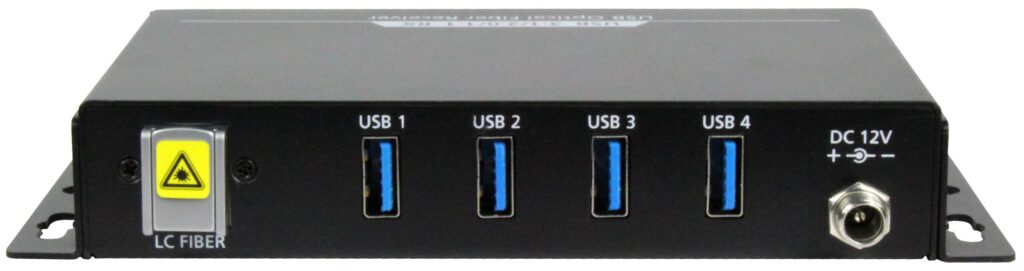

Ex#####-RX_back
Full Screen

Features

  • Data transfer rates of up to 5Gbps over optical fiber
  • Real-time transmission up to 3.7 miles (USB 2.0) or 328 feet (USB 3.1 Gen 1)
  • Plug-and-play; no drivers or software required
  • Receiver acts as a 4-port USB 3.1 USB hub
Buy on Dealer StoreContact a Sales Rep

Description

The FOUB30 is a high-speed USB 3.1/2.0/1.1 fiber extender capable of carrying real-time USB 3.1 signals up to 100m (328 ft), or real-time USB 2.0 signals up to 6km (3.7 mi). The receiver acts as a 4-port USB hub, and the transmitter includes a USB-B host port for connecting to a PC. The receiver includes an external power supply that ensures it is capable of powering multiple connected USB devices (keyboards, mice, etc).

With its compact size, this USB extender set provides a fast, flexible, and high-quality solution for USB extension over long distances.

FOUB30 Fiber USB Extender Set Part Number: 79521-S
USB Interface Transmitter: 1 USB 3.0 (Type-B, Female) Receiver: 4 USB 3.0 (Type-A, Female)
Fiber Interface Transmitter: 1 LC Receiver: 1 LC
Data Transfer Speed USB 3.1 Gen 1: 5 Gbps USB 2.0: 480 Mbps USB 1.1: 12 Mbps
Maximum Transmission Distance USB 3.1 Gen 1 (single-mode or multi-mode fiber) Non-Real-Time Transmission: 985 feet (300m) Real-Time Transmission: 328 feet (100m)USB 2.0/1.1 (single-mode fiber) Non-Real-Time Transmission: 6.2 miles (10km) Real-Time Transmission: 3.7 miles (6km)USB 2.0/1.1 (OM3 multi-mode fiber) Transmission: 1,640 feet (500m)
Power Supply Input: 100 ~ 240 VAC, 50/60Hz Output: DC 12V, 2A
Operating Temperature 14 ~ 140°F (-10 ~ 60°C)
Operating Humidity 20 ~ 80% (non-condensing)
Product Dimensions Transmitter: 5.3" (135mm) x 3" (75mm) x 1" (26mm) Receiver: 6.3" (160mm) x 3.3" (85mm) x 1" (26mm)
Name
Category
Last Updated
Download

79521 User Manual

Manuals
05/31/2022
Manuals

79521-S Data Sheet

Data Sheets
07/22/2021
Data Sheets

TPUH412 HDBase-T 70m Extender Set

SKU: 79080S

TPHD2-WP1 HDBase-T Wall Plate Transmitter

SKU: 79066

ShareView Adapter

SKU: 79060

SUH-2E 1×2 HDMI Splitter

SKU: 79070-E
Summary

The FOUB30 is a high-speed USB 3.1/2.0/1.1 fiber extender capable of carrying real-time USB 3.1 signals up to 100m (328 ft), or real-time USB 2.0 signals up to 6km (3.7 mi). The receiver acts as a 4-port USB hub, and the transmitter includes a USB-B host port for connecting to a PC. The receiver includes an external power supply that ensures it is capable of powering multiple connected USB devices (keyboards, mice, etc).

With its compact size, this USB extender set provides a fast, flexible, and high-quality solution for USB extension over long distances.

Specifications
FOUB30 Fiber USB Extender Set Part Number: 79521-S
USB Interface Transmitter: 1 USB 3.0 (Type-B, Female) Receiver: 4 USB 3.0 (Type-A, Female)
Fiber Interface Transmitter: 1 LC Receiver: 1 LC
Data Transfer Speed USB 3.1 Gen 1: 5 Gbps USB 2.0: 480 Mbps USB 1.1: 12 Mbps
Maximum Transmission Distance USB 3.1 Gen 1 (single-mode or multi-mode fiber) Non-Real-Time Transmission: 985 feet (300m) Real-Time Transmission: 328 feet (100m)USB 2.0/1.1 (single-mode fiber) Non-Real-Time Transmission: 6.2 miles (10km) Real-Time Transmission: 3.7 miles (6km)USB 2.0/1.1 (OM3 multi-mode fiber) Transmission: 1,640 feet (500m)
Power Supply Input: 100 ~ 240 VAC, 50/60Hz Output: DC 12V, 2A
Operating Temperature 14 ~ 140°F (-10 ~ 60°C)
Operating Humidity 20 ~ 80% (non-condensing)
Product Dimensions Transmitter: 5.3" (135mm) x 3" (75mm) x 1" (26mm) Receiver: 6.3" (160mm) x 3.3" (85mm) x 1" (26mm)
Downloads
Name
Category
Last Updated
Download

79521 User Manual

Manuals
05/31/2022
Manuals

79521-S Data Sheet

Data Sheets
07/22/2021
Data Sheets
