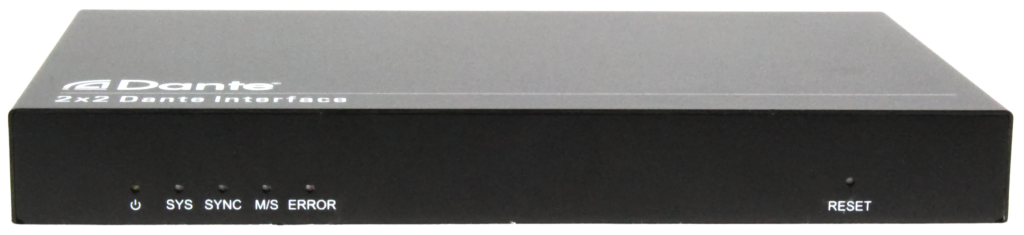

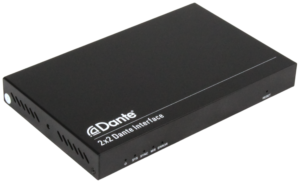

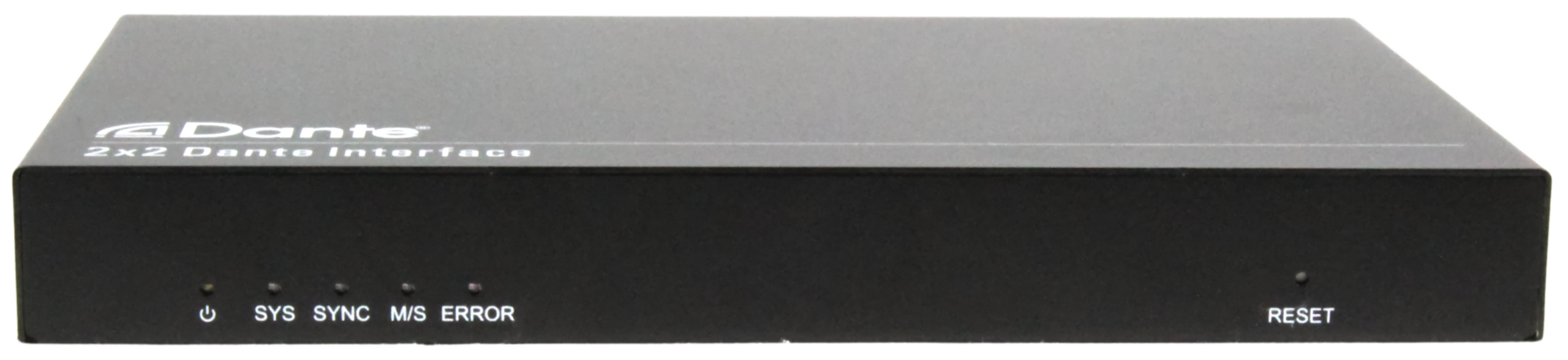

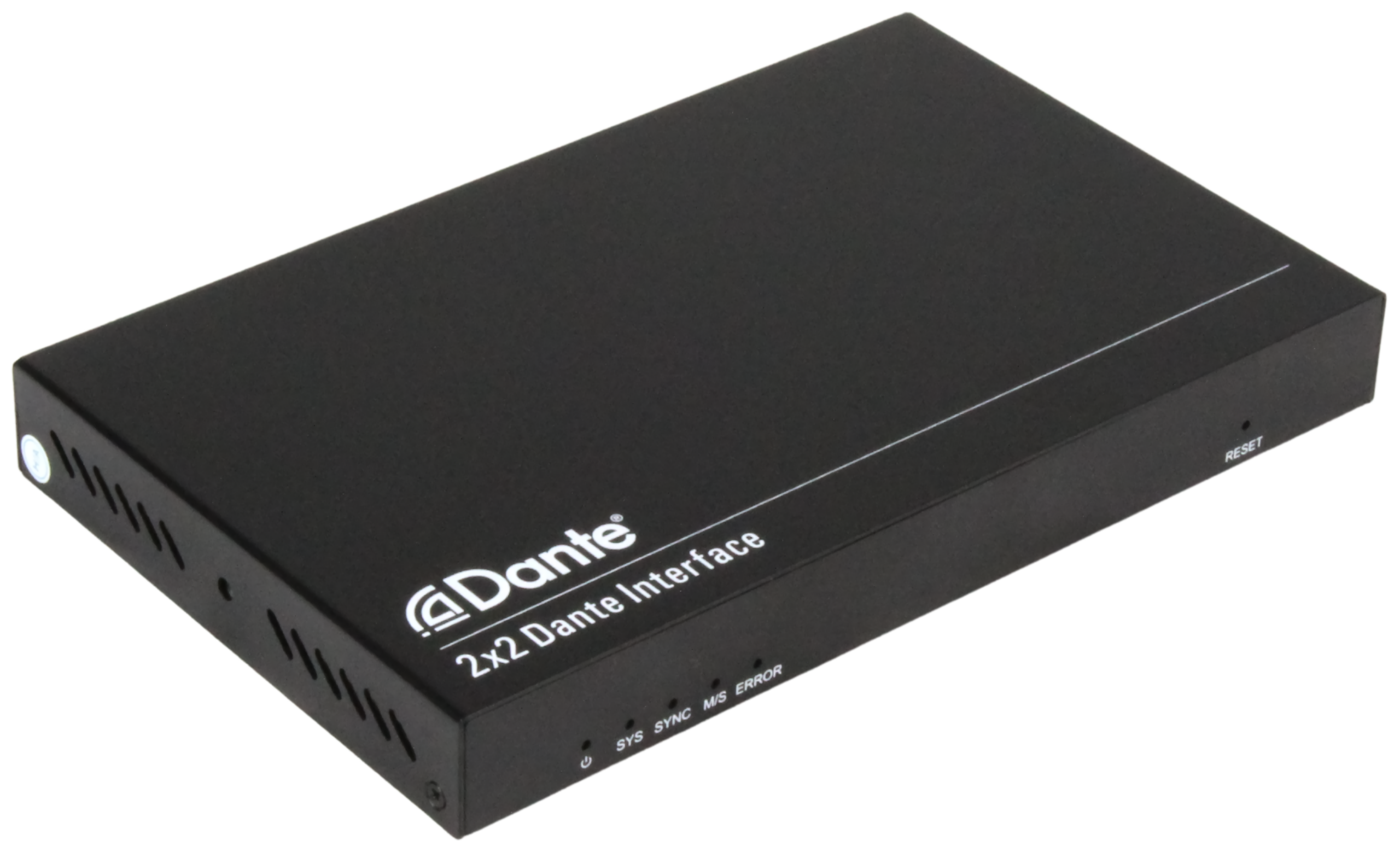

DAN-B202 Dante Audio Interface

Description

The DAN-B202 is a Dante network audio interface allowing users to integrate up to 2 x 2 audio channels of Dante audio into networked AV systems. Each analog input supports line & microphone levels, and features a 48V selectable phantom power option. The DAN-B202 includes per-input adjustable gain and output volume control. It also supports PoE (IEEE802.3af) power and a small form factor that make it easy to put Dante connectivity wherever it’s needed. It can be close to the audio source or sink to eliminate the need for costly and interference-prone analog wiring.

Designed for simplicity and practicality, the DAN-B202 supplies reliable, easy-to-install Dante audio channels to any modern A/V solution.

DAN-B202 Dante Audio Interface	Part Number: 78910
I/O Ports

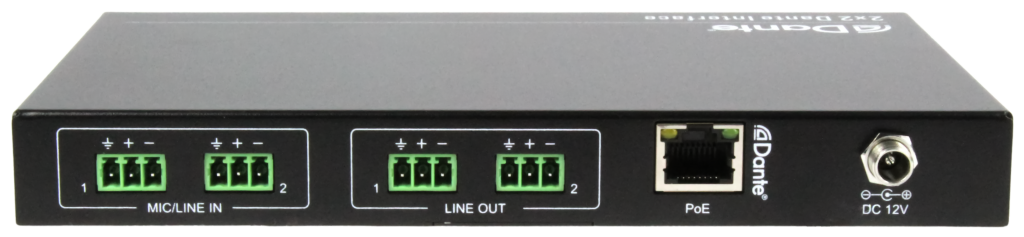

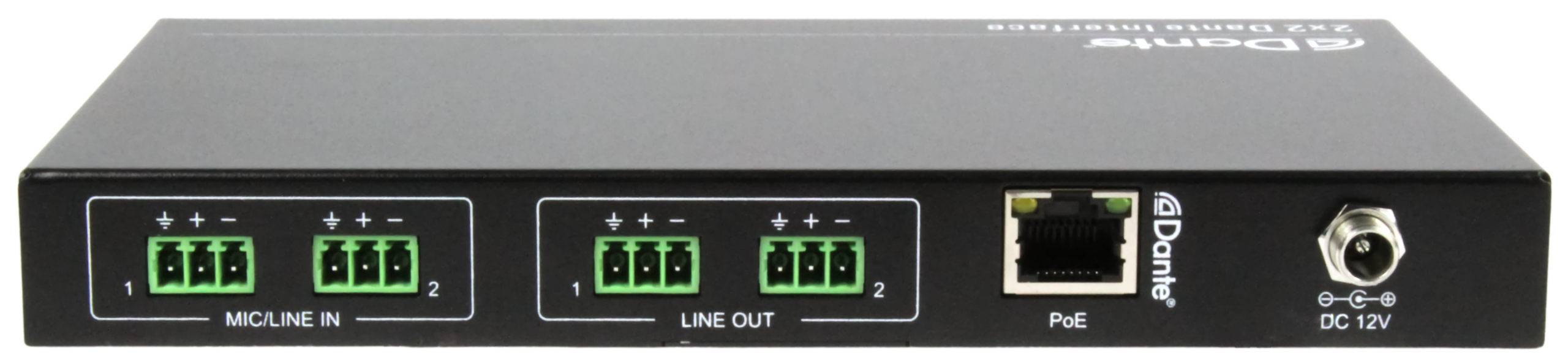

Inputs	2x MIC/LINE IN (3-pin terminal block)
Input Phantom Power	48V, selectable for each input
Outputs	2x LINE OUT (3-pin terminal block)
Control	1x Dante Network (RJ45, Female)
Audio Performance
Gain	Input: 0 ~ 48dB, 6dB per step Output: -60 ~ 0dB, 1dB per step
Max Level	Input: 18dBu @ 0dB input gain Output: 18dBu @ 0dB output gain
Input Impedance	> 1.8kΩ
Effective Input Noise	-119dB @ 48dB gain
Output Noise	< -79dB @ 0dB gain
Total Harmonic Distortion (THD)	< 0.05% at any gain
Sample Rate	44.1kHz or 48kHz
General
Power Supply	Input: 100 ~ 240 VAC, 50/60Hz Output: DC 12V, 1A
Operating Temperature	14 ~ 131°F (-10 ~ 55°C)
Relative Humidity	10 ~ 90%
Product Dimensions	7.28" (185mm) x 4.53" (115mm) x 0.87" (22mm)
Product Weight	1.1 lbs. (500g)

Name

78910 Data Sheet

Data Sheets

11/11/2021

Data Sheets

DAN-B202 Dante Audio Interface	Part Number: 78910
I/O Ports
Inputs	2x MIC/LINE IN (3-pin terminal block)
Input Phantom Power	48V, selectable for each input
Outputs	2x LINE OUT (3-pin terminal block)
Control	1x Dante Network (RJ45, Female)
Audio Performance
Gain	Input: 0 ~ 48dB, 6dB per step Output: -60 ~ 0dB, 1dB per step
Max Level	Input: 18dBu @ 0dB input gain Output: 18dBu @ 0dB output gain
Input Impedance	> 1.8kΩ
Effective Input Noise	-119dB @ 48dB gain
Output Noise	< -79dB @ 0dB gain
Total Harmonic Distortion (THD)	< 0.05% at any gain
Sample Rate	44.1kHz or 48kHz
General
Power Supply	Input: 100 ~ 240 VAC, 50/60Hz Output: DC 12V, 1A
Operating Temperature	14 ~ 131°F (-10 ~ 55°C)
Relative Humidity	10 ~ 90%
Product Dimensions	7.28" (185mm) x 4.53" (115mm) x 0.87" (22mm)
Product Weight	1.1 lbs. (500g)

Part Number: 78910

I/O Ports

Inputs

2x MIC/LINE IN (3-pin terminal block)

Input Phantom Power

48V, selectable for each input

Outputs

2x LINE OUT (3-pin terminal block)

Control

1x Dante Network (RJ45, Female)

Audio Performance

Gain

Input: 0 ~ 48dB, 6dB per step Output: -60 ~ 0dB, 1dB per step

Max Level

Input: 18dBu @ 0dB input gain Output: 18dBu @ 0dB output gain

Input Impedance

> 1.8kΩ

Effective Input Noise

-119dB @ 48dB gain

Output Noise

< -79dB @ 0dB gain

Total Harmonic Distortion (THD)

< 0.05% at any gain

Sample Rate

44.1kHz or 48kHz

General

Power Supply

Input: 100 ~ 240 VAC, 50/60Hz Output: DC 12V, 1A

Operating Temperature

14 ~ 131°F (-10 ~ 55°C)

Relative Humidity

10 ~ 90%

Product Dimensions

7.28" (185mm) x 4.53" (115mm) x 0.87" (22mm)

Product Weight

1.1 lbs. (500g)
