TPUH460S Camera Extender Set

SKU: 79086S

79086S zoom
79086T_6 zoom
79086T_5 zoom
79086R_5 zoom
79086R_6 zoom
79086S
79086T_6
79086T_5
79086R_5
79086R_6
Full Screen

Features

  • Extends 1080p or 4K signals up to 328 feet (100m) over a single CAT Ethernet cable
  • Bi-directional extension of RS-232 serial control & Ethernet LAN
  • Provides up to 30W (DC 12V, 2.5A) for powering 3rd-party devices
  • PoC allows the receiver to power the transmitter via its HDBase-T connection
  • Supports resolutions up to 4Kx2K@60Hz 4:2:0
Buy on Dealer StoreContact a Sales Rep

Description

The TPUH460S Camera Extender is an ultra-thin HDBase-T/LAN extender set supporting transmission of 1080p/4K video, Ethernet LAN, and RS232 commands up to 330 feet (100m) over a single CAT Ethernet cable (Cat6 or better recommended).

It supports PoC, allowing the receiver to power the transmitter via the HDBaseT connection, ensuring that only one power supply is needed to power the extender set. The transmitter also includes a 12V DC, 2.5A power supply for powering 3rd-party devices such as cameras, without needing an additional power supply and cable.

TPUH460S Camera Extender Part Number: 79086S
Transmitter
Inputs 1 HDMI (19-pin, Female)

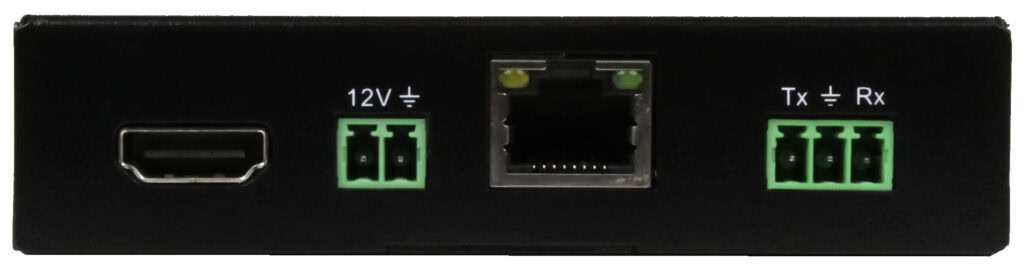

Outputs 1 HDBaseT 2.0 (RJ45 Female) 1 DC 12V, 2.5A Power Supply (2-pin Phoenix)
Control Ports 1 Ethernet LAN (RJ45, Female) 1 RS-232 (3-pin Phoenix)
Receiver

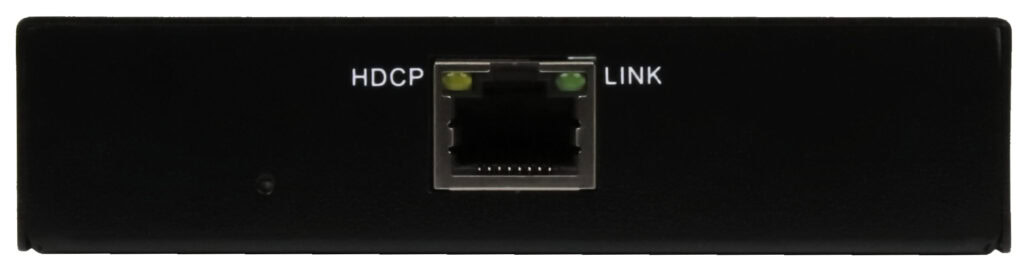

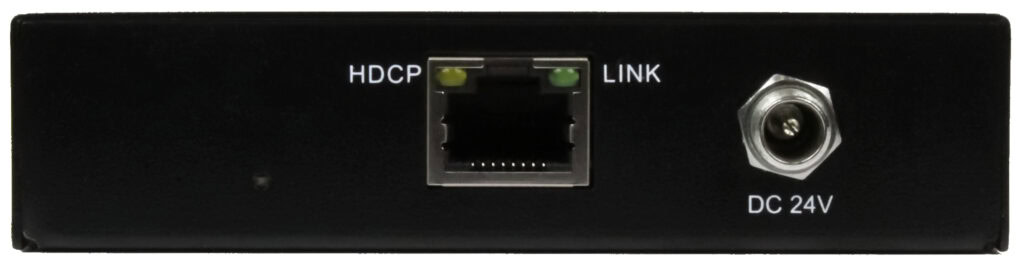

Inputs 1 HDBaseT 2.0 (RJ45 Female)
Outputs 1 HDMI (19-pin, Female)

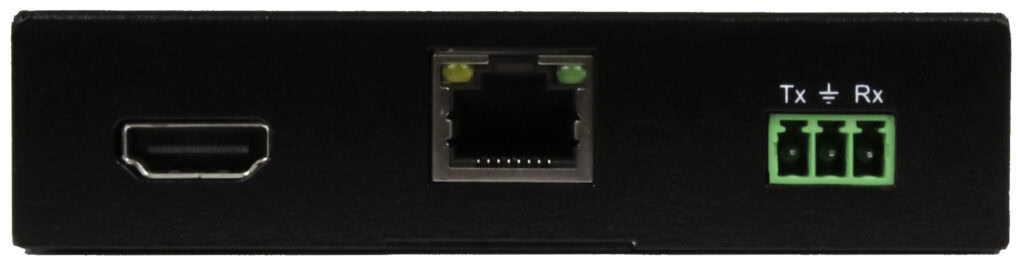

Control Ports 1 Ethernet LAN (RJ45, Female) 1 RS-232 (3-pin Phoenix)
General
Resolution Range Up to 4Kx2K@60Hz 4:2:0
Transmission Distance 330 ft. (100m)
Compliances Compliant w/ HDMI 1.4 & HDCP 2.2 (bypass)
EDID Management Supports EDID Bypass
Operating Temperature 23 ~ 131°F (-5 ~ 55°C)
Storage Temperature -13 ~ 158°F (-25 ~ 70°C)
Humidity 10 ~ 90%
Power Supply (TX Only) Input: 100~240V AC, 50/60Hz Output: DC 24V, 2.71A
Power Consumption 62W (max)
Case Dimensions 3.94"(100mm) x 0.94"(24mm) x 2.36"(60mm)
Product Weight TX: 0.82 lbs. (370g) RX: 0.84 lbs. (380g)
