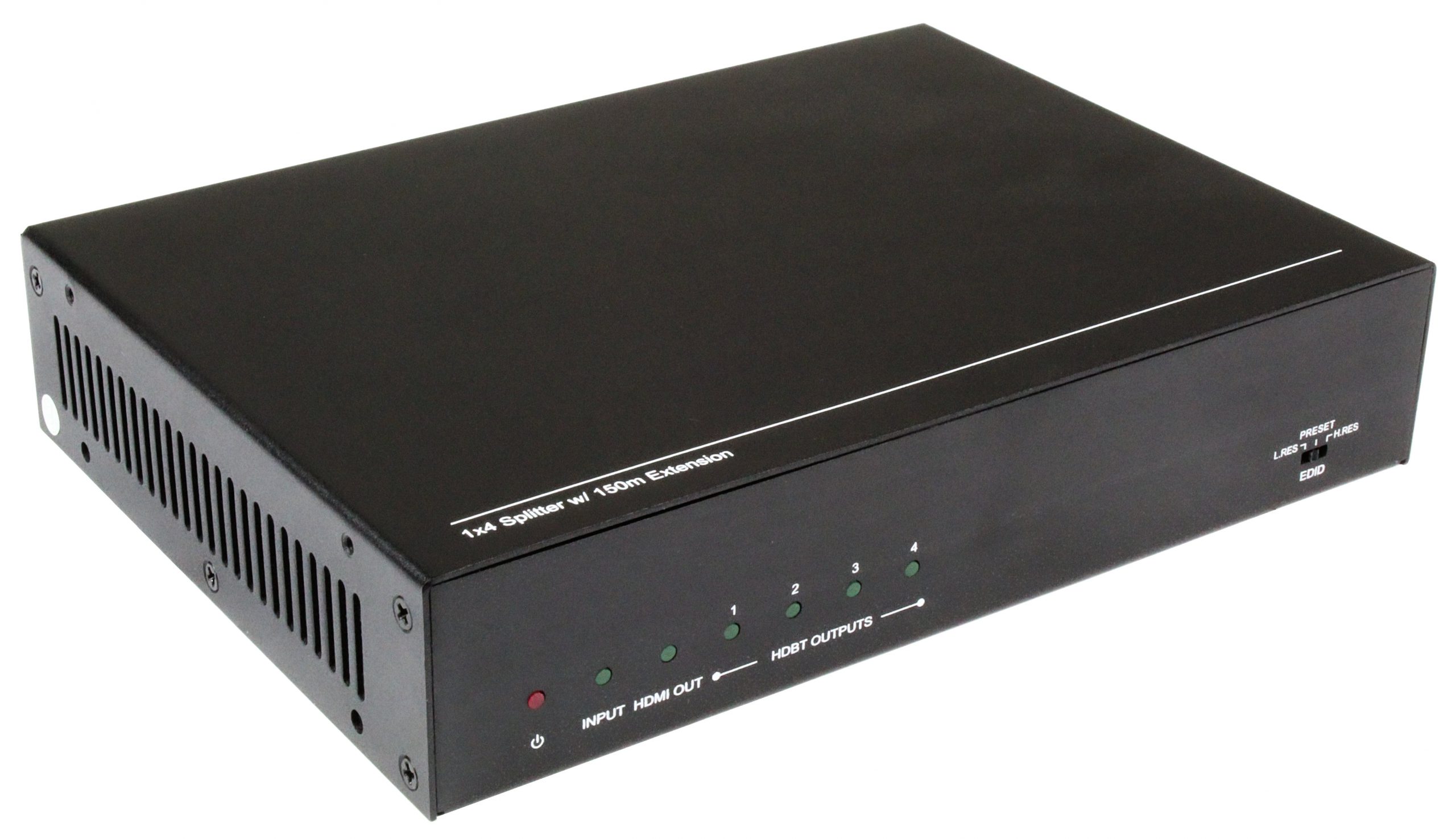

The TEK LR-DA14 is a long range HDBase-T distribution amplifier for transmitting an HDMI source to four remote displays up to 150 meters away. The LR-DA14 accepts a single HD or UHD HDMI input and outputs a mirrored HDMI and four HD HDBase-T outputs. The product includes four compatible receivers and endpoints can be controlled via IR remote control or RS-232 serial interface.
| TEK LR-DA14 1x4 HDBT Distribution Amplifier | Part Number: 79045-DA |
|---|---|
| Input | 1 HDMI (Female) |
| Output | 1 HDMI (Female) 4 HDBaseT (RJ45 Female) |

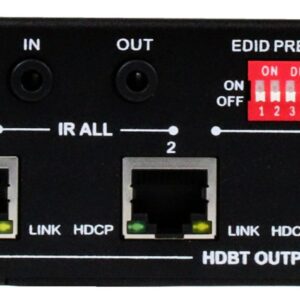

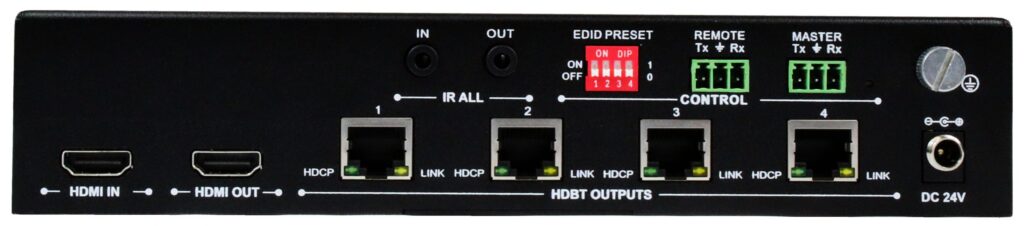

| Control Ports | 1 EDID Settings (3 Pin DIP switch) 1 EDID Preset (4 Pin DIP switch) 2 IR ALL IN/OUT (3.5mm mini jacks) 2 RS-232 Remote/Master (3 Pin Phoenix) |
| Resolution Range | Input: Up to 4Kx2K@30Hz HDMI Output: Up to 4Kx2K@30Hz HDBT Output: Up to 1080P@60Hz |
| Transmission Distance | 492 ft. (150m) |
| Power Supply | Input: 100~240V AC, 50/60Hz Output: DC 24V, 2.71A |
| Power Consumption | 35W (max) |
| Temperature | 14 ~ 131°F (-10 ~ 55°C) |
| Humidity | 10% ~ 90% |
| Case Dimensions | 8.6"(219mm) x 1.7"(44mm) x 6.2"(157.5mm) |
| Product Weight | 2.75 lbs. (1.24kg) |
