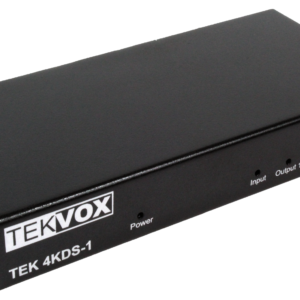

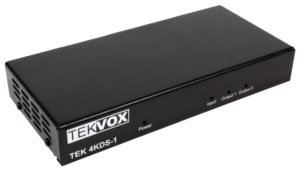

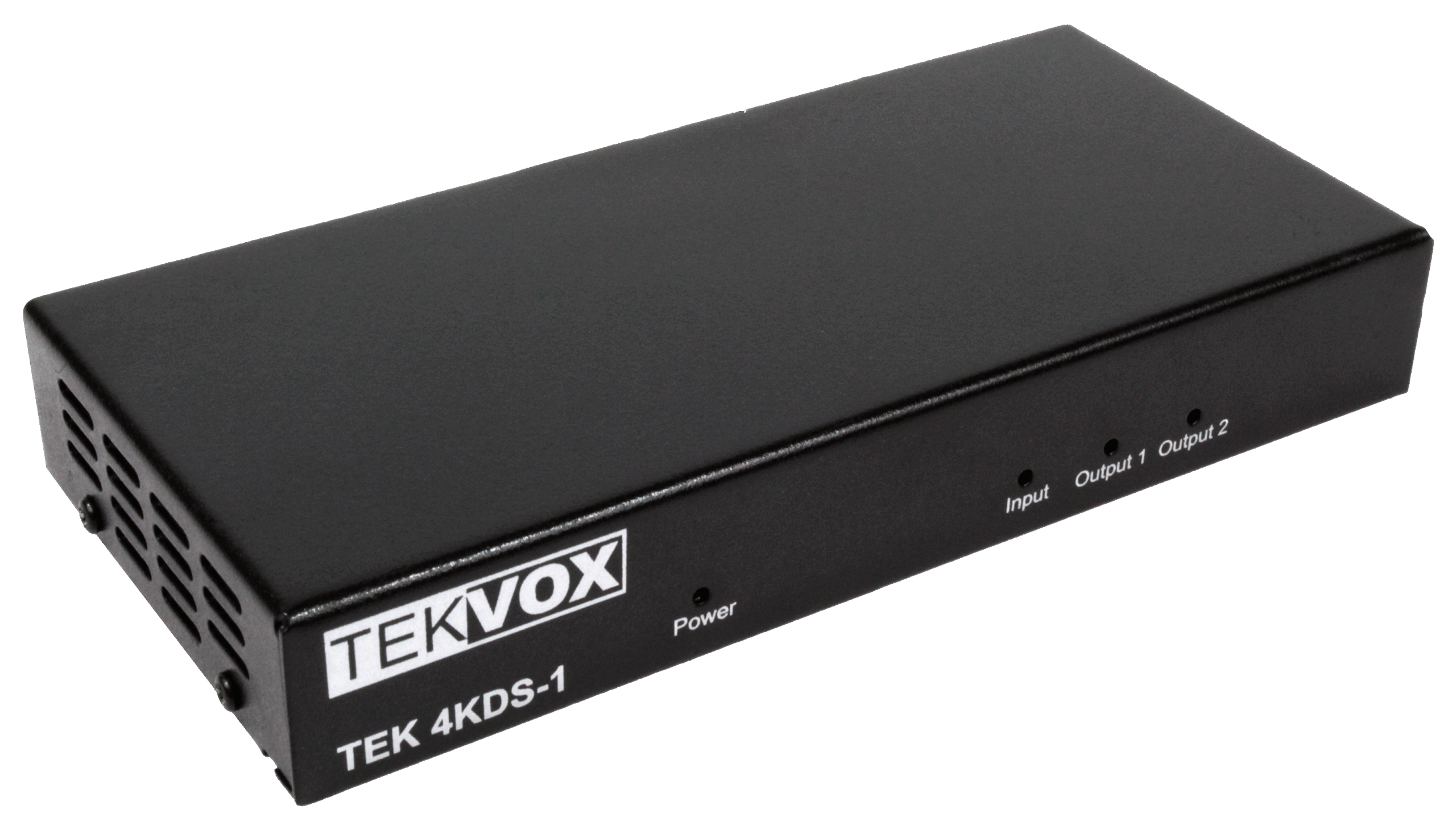

The 4KDS-1 4K downscaler provides both upscaling and downscaling to 1080P. This unique device allows for 4K2K content to be shown on a high resolution 4K2K display while downscaling to 1080P in order to show the same content on standard displays. Unlike other downscalers that maintain the vertical 24/25/30Hz rate of the original content, the TEK 4KDS-1 scaler will reformat to 1080P/60Hz.
| TEK 4KDS-1 HDMI Down-Scaler | Part Number: 79063 |
|---|---|
| Inputs | 1 HDMI (Female) |

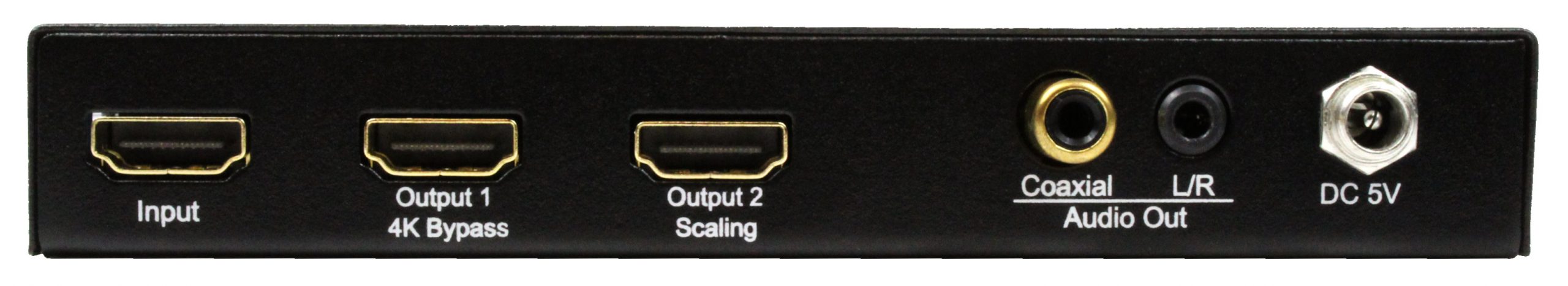

| Outputs | 1 Scaled HDMI (Female) 1 4K Bypass HDMI (Female) 1 SPDIF (RCA) 1 Stereo Audio (3.5mm mini jack) |
| Resolution Range | Input: Up to 4Kx2K@30Hz Output: 1080P@60Hz |
| Bandwidth | 2.97Gbps per color |
| Control Ports | EDID 4 Pin DIP switch |
| Power Supply | DC 5V, 2A |
| Temperature | 32 ~ 104°F (0 ~ 40°C) |
| Case Dimensions | 5.9"(150mm) x 2.8"(71mm) x 0.9"(23mm) |
| Product Weight | 0.66 lbs (299g) |
