MV41-USB Multiview Capture Switcher

SKU: 79079-USB

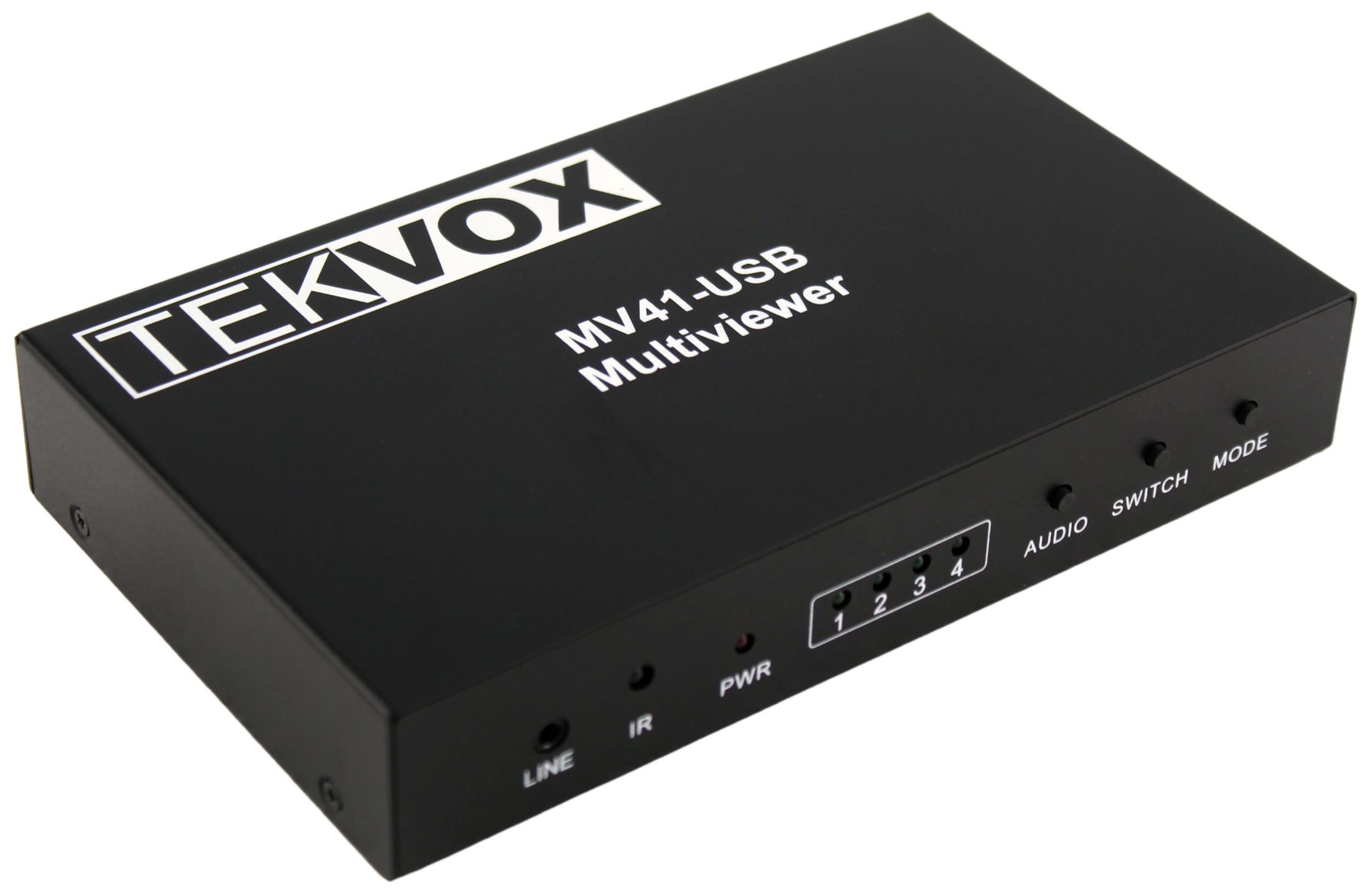

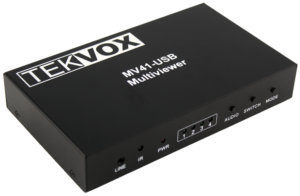

79079-USB_1 zoom

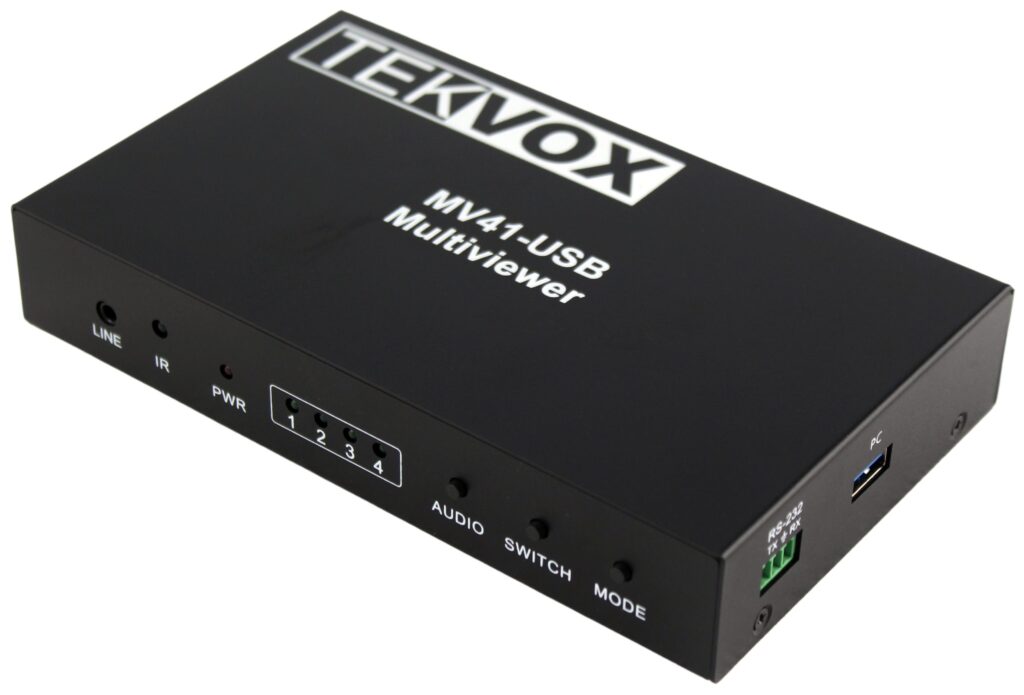

79079-USB_2 zoom

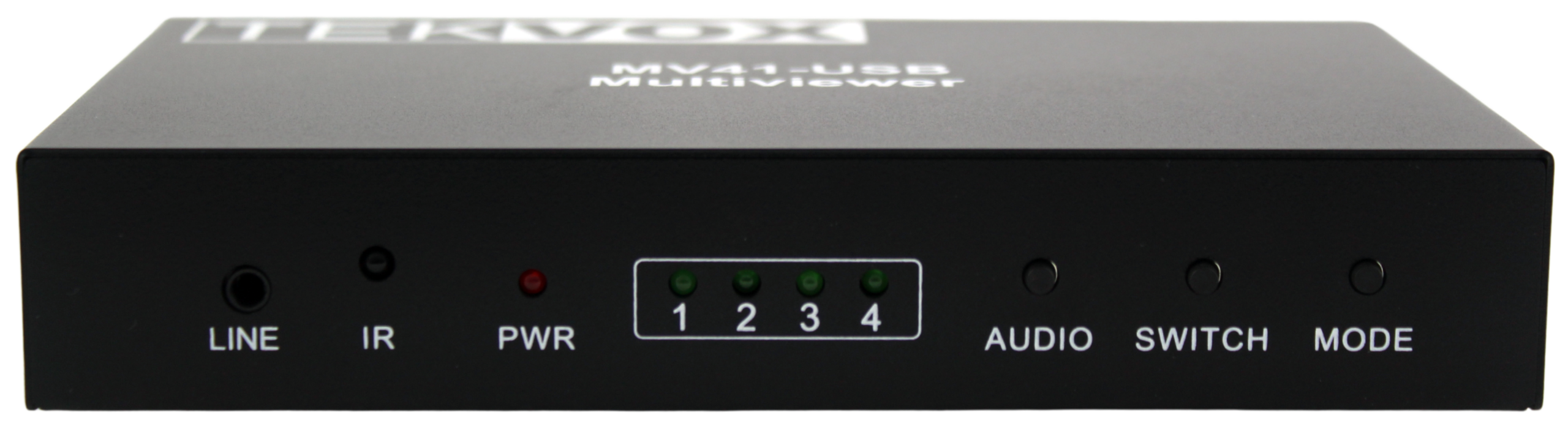

79079-USB_front zoom

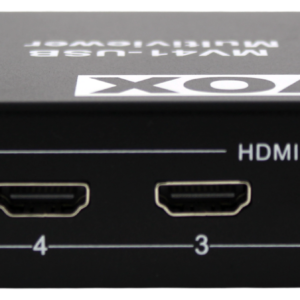

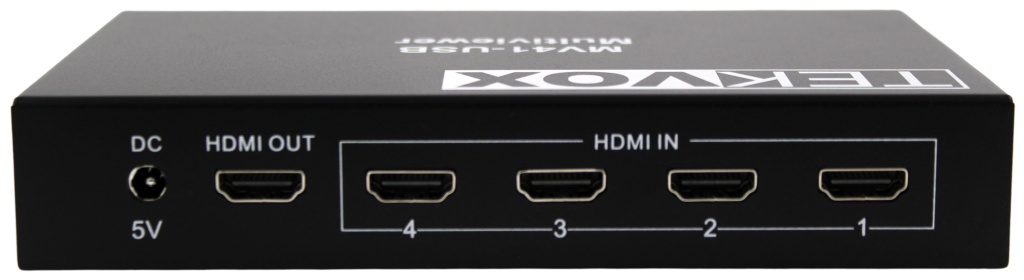

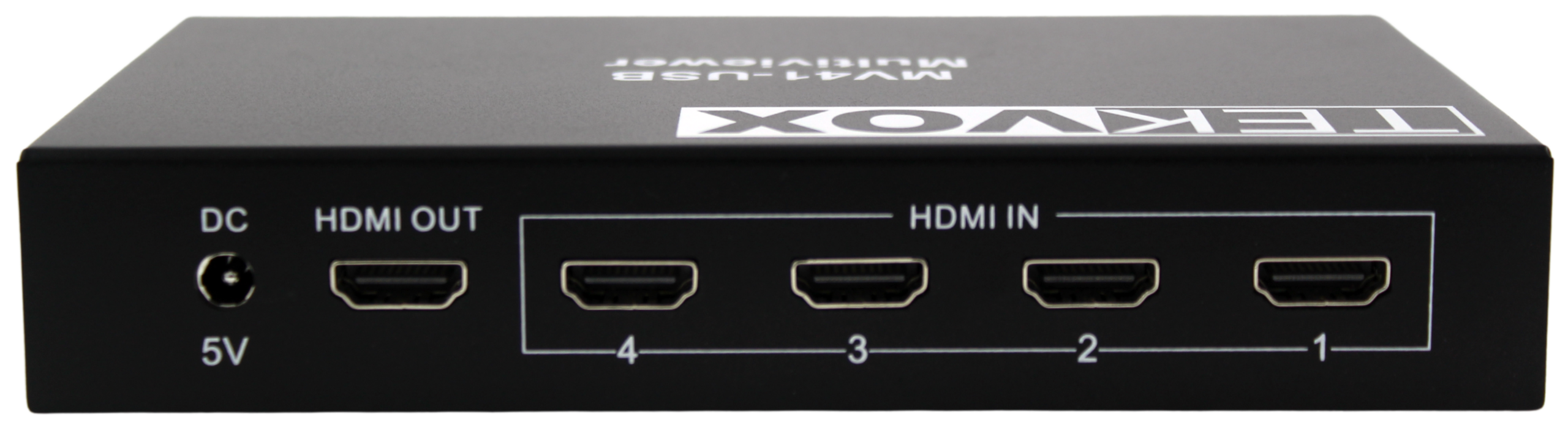

79079-USB_back zoom
79079-USB_1
79079-USB_2
79079-USB_front
79079-USB_back
Full Screen

Description

  • 4 HDMI inputs and 1 HDMI/USB output
  • 5 multiview modes, including Side-by-Side, Quad View, and Picture-in-Picture (PIP)
  • Support video resolutions up to 1080p @ 60Hz
  • Breakaway audio switching for independent audio source selection
  • Line-level stereo audio input for microphone audio embedding
  • Controllable via IR remote, RS232, USB, or USB-to-RS232 passthrough
Buy on Dealer StoreContact a Sales Rep

Description

The MV41-USB is a professional-grade 4×1 HDMI multiview switcher with USB 3.0 capture, which makes it easy to integrate multiple cameras into a video conferencing system. The advanced features of the MV41-USB enable seamless switching and showing multiple cameras to the far-end. Systems that do not support full bandwidth USB 2.0 can take advantage of the MV41-USB for its support of H.264 UVC. The MV41-USB allows multiple cameras—such as instructor and student cameras—to be shown side-by-side or in any of 4 other multiview modes.

MV41-USB Multiview Capture Switcher Part Number: 79079-USB
Inputs 4x HDMI (19-pin, female) 1x Stereo Audio (3.5mm mini jack, line level)
Outputs 1x HDMI (19-pin, female) 1x USB 3.0 (Type-A, female, supports USB 2.0 H.264 UVC)
Control Ports RS232 (3-pin terminal block)
Input Resolution Up to 1920 x 1080 @ 60Hz
Output Resolution 720p @ 60Hz (default); 1080p @ 60Hz
EDID Auto / 720p @ 60Hz
Compliances HDMI: 1.4 HDCP: Up to 1.4, Auto
Power Supply Input: 100 ~ 240 VAC, 50/60Hz Output: DC 5V, 2A
Power Consumption 5W (max)
Operating Temperature 23 ~ 131°F (-5 ~ 55°C)
Humidity 10 ~ 90%, non-condensing
Product Dimensions 6.69" (170mm) x 0.33" (8.4mm) x 6.3" (160mm)
Product Weight 0.82 lbs. (370g)
Name
Category
Last Updated
Download

79079-USB Data Sheet

Data Sheets
12/13/2022
Data Sheets

MV41 Multiviewer Switcher

SKU: 79079

TFX-IBT+ 4K HDBaseT 100m PoE Input Card

SKU: 79253

TFX-IUH 4K HDMI Input Card

SKU: 79230

TFX-OBT+ 4K HDBaseT 100m PoE Output Card

SKU: 79263
Summary

The MV41-USB is a professional-grade 4x1 HDMI multiview switcher with USB 3.0 capture, which makes it easy to integrate multiple cameras into a video conferencing system. The advanced features of the MV41-USB enable seamless switching and showing multiple cameras to the far-end. Systems that do not support full bandwidth USB 2.0 can take advantage of the MV41-USB for its support of H.264 UVC. The MV41-USB allows multiple cameras—such as instructor and student cameras—to be shown side-by-side or in any of 4 other multiview modes.

Specifications
MV41-USB Multiview Capture Switcher Part Number: 79079-USB
Inputs 4x HDMI (19-pin, female) 1x Stereo Audio (3.5mm mini jack, line level)
Outputs 1x HDMI (19-pin, female) 1x USB 3.0 (Type-A, female, supports USB 2.0 H.264 UVC)
Control Ports RS232 (3-pin terminal block)
Input Resolution Up to 1920 x 1080 @ 60Hz
Output Resolution 720p @ 60Hz (default); 1080p @ 60Hz
EDID Auto / 720p @ 60Hz
Compliances HDMI: 1.4 HDCP: Up to 1.4, Auto
Power Supply Input: 100 ~ 240 VAC, 50/60Hz Output: DC 5V, 2A
Power Consumption 5W (max)
Operating Temperature 23 ~ 131°F (-5 ~ 55°C)
Humidity 10 ~ 90%, non-condensing
Product Dimensions 6.69" (170mm) x 0.33" (8.4mm) x 6.3" (160mm)
Product Weight 0.82 lbs. (370g)
