SCU11-KVM USB-C to HDMI Converter

SKU: 79111

79111-1 zoom
79111-front zoom
79111-back zoom
79111-1
79111-front
79111-back
Full Screen

Features

  • USB-C input with 60W charging and Ethernet tunneling
  • Internal USB 3.1 hub connected to USB-C input
  • Supports up to 4Kx2K @ 60Hz resolutions
  • Plug-and-play operation; no additional software or drivers needed
Buy on Dealer StoreContact a Sales Rep

Description

TEKVOX’s SCU11-KVM is a powerful, compact USB-C to HDMI converter capable of supplying 60W of power, USB 3.1 communication, and Ethernet LAN to a connected user laptop, all over a single USB-C cable. It supports up to 4Kx2K @ 60Hz 4:4:4 resolutions, includes a built-in 3-port USB 3.1 hub, and automatically tunnels USB data and network connectivity to a connected device.

With a number of premium features, a compact design, and effortless plug-and-play operation, the SCU11-KVM is the perfect option for converting a USB-C input to an HDMI video signal.

SCU11-KVM USB-C to HDMI Converter Part Number: 79111
Inputs 1 USB-C (USB 3.1, Gen 2)
Input Resolution Up to 4Kx2K @ 60Hz 4:4:4
Outputs 1 HDMI (19-pin, Female)
Output Resolution Up to 4Kx2K @ 60Hz 4:4:4
Compliances HDMI: 2.0 HDCP: 2.3 (backwards-compatible)

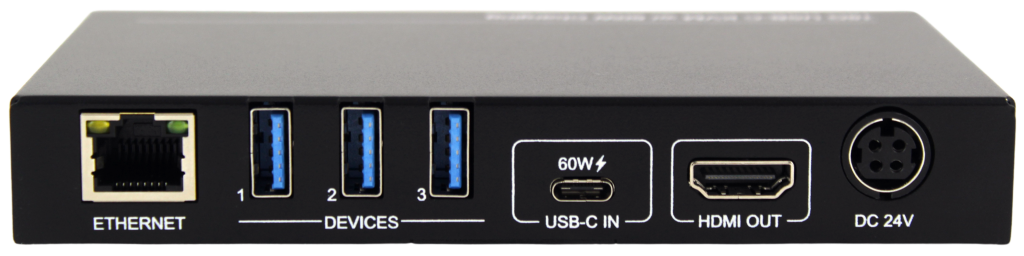

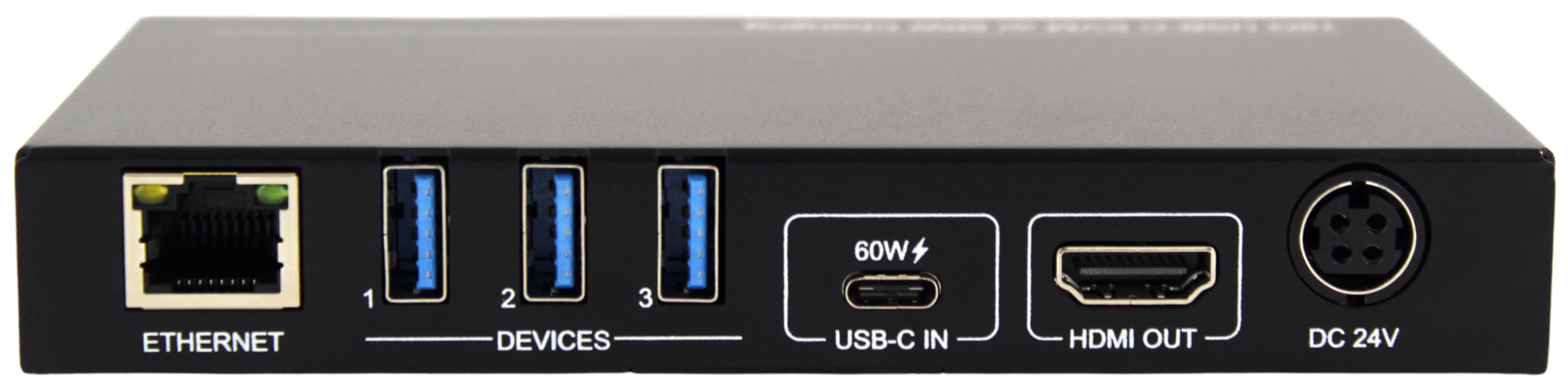

USB Ports 3 USB Devices (Type-A, Female, USB 3.1, Gen 1) 1 USB-C (USB 3.1, Gen 2)
Ethernet 1 RJ45 (10/100/1000BaseT)
Bandwidth 18Gbps
Operating Temperature 14 ~ 131°F (-10 ~ 55°C)
Relative Humidity 10 ~ 90%
Power Supply DC 24V, 5A
USB-C Power Delivery 60W (max)
Power Consumption 68W (max)
Product Dimensions 5.7" (145mm) x 3.15" (80mm) x 0.87" (22mm)
Product Weight 1.26 lbs. (270g)
