The TPUH422 is an ultra-thin HDBaseT extender set supporting 4K signal transmission up to 230ft (70m), 1080p signal and Ethernet up to 330ft (100m) over a single CAT 5e/6 Cable (CAT 6 recommended). The TPUH422 set supports CEC, bi-directional RS232 & IR Control, and bi-directional PoH function.
| TEK TPUH422 HDBaseT Extender | Part Number: 79082S |
|---|---|

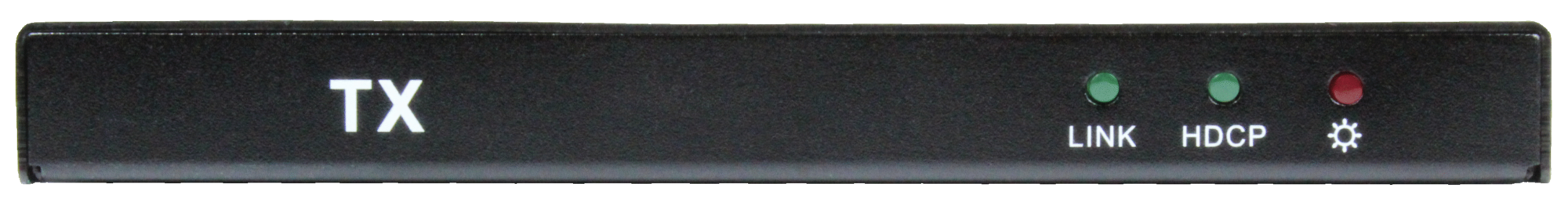

| TPUH422T | |
| Inputs | 1 HDMI (Female) 1 IR (3.5mm mini jack) 1 RS-232 (3 Pin Phoenix) |
| Outputs | 1 HDBaseT (RJ45 Female) 1 IR (3.5mm mini jack) 1 RS-232 (3 Pin Phoenix) |
| Other Connections | 2 Ethernet (RJ45 Female, Adaptive 10M/100M, Green & Yellow) |

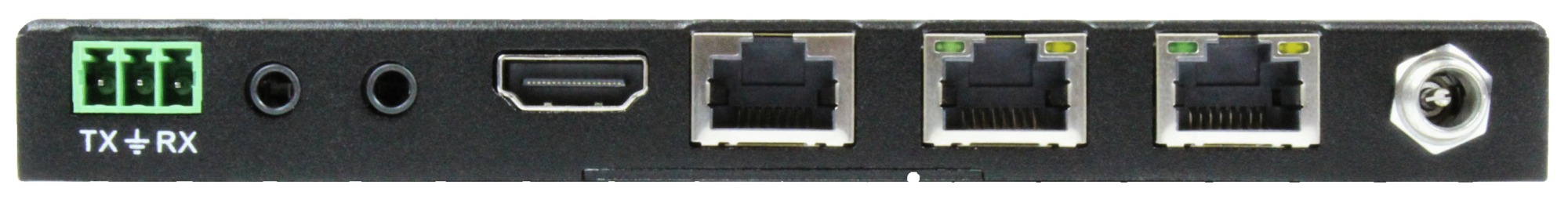

| TPUH422R | |
| Inputs | 1 HDBaseT (RJ45 Female) 1 IR (3.5mm mini jack) 1 RS-232 (3 Pin Phoenix) |
| Outputs | 1 HDMI (Female) 1 IR (3.5mm mini jack) 1 RS-232 (3 Pin Phoenix) |
| Other Connections | 2 Ethernet (RJ45 Female, Adaptive 10M/100M, Green & Yellow) |
| General | |
| Resolution Range | Up to 4Kx2K@60Hz |
| Transmission Distance | 1080P: 330 ft. (100m) 4Kx2K: 230 ft. (70m) |
| Bandwidth | 10.2Gbps |
| Compliances | Compliant w/ HDMI 1.4 & HDCP 2.2 |
| Temperature | 32 ~ 122°F (0 ~ 50°C) |
| Humidity | 0 ~ 90% |
| Power over HDBaseT (PoH) | Bi-Directional |
| Power Supply | Input: 100~240V AC, 50/60Hz Output: DC 24V, 1.25A |
| Power Consumption | 10W (max) |
| Case Dimensions | 6"(152mm) x 0.64"(16.2mm) x 4.1"(104mm) |
| Product Weight | 0.53 lbs. (241g) Each |
