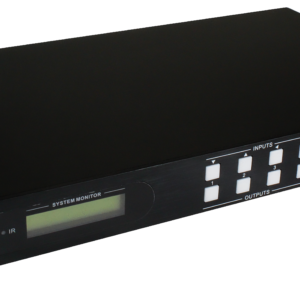

MUH44TP 4×4 HDMI Matrix Switcher

SKU: 79055

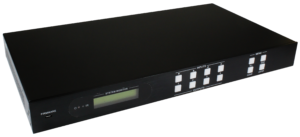

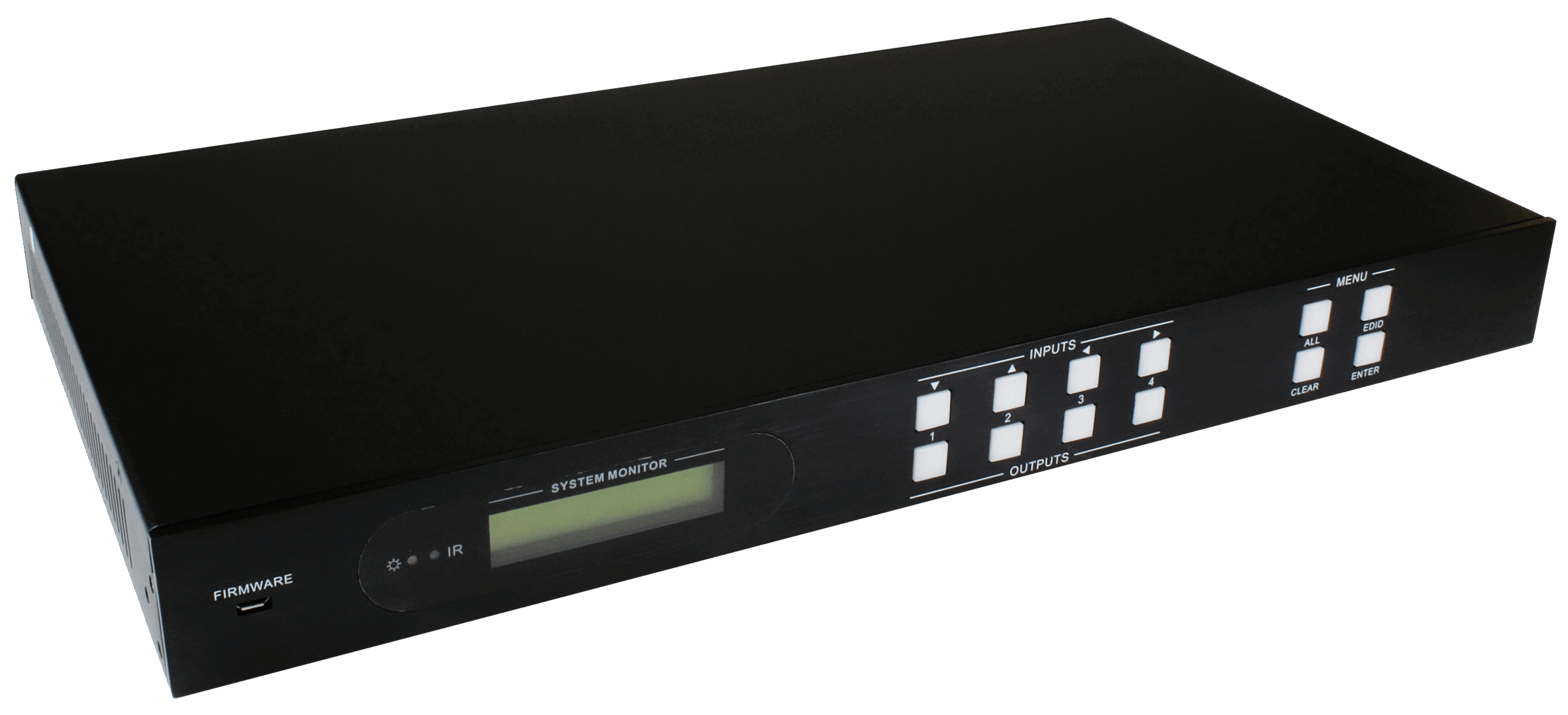

79055_1 zoom

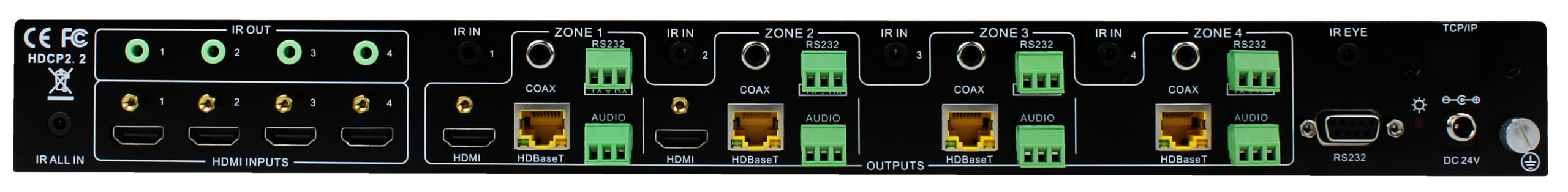

79055_back zoom
79055_1
79055_back
Full Screen

Features

  • Transmits at 4Kx2K@60Hz & 1080p 3D resolutions for 8m (HDMI) and 40m (HDBaseT)
  • Audio, video, IR, and RS232 controllable via front panel buttons, RS232, and TCP/IP
  • LCD readout for real-time monitoring of I/O connection, switching, HDCP, and output resolution status
  • Supports HDMI 1.4 & HDCP2.2, and compliant with lower standards
  • Supports manual HDCP management and auto-detecting
Buy on Dealer StoreContact a Sales Rep

Description

The TEK MUH44TP 79055 is a unique 4×4 HDMI matrix switcher with 4 HDMI inputs, and 2 HDMI & 4 HDBaseT outputs. Any input can be routed to any output with support for ultra-high resolution 4Kx2K@60Hz and 1080p-3D. HDMI signals can be transmitted without significant distortion up to 8m (25 ft), and HDBaseT up to 40m (130 ft). The MUH44TP provides 4 auxiliary audio outputs, and the switching can be controlled via RS232, IR remote, TCP/IP, or front-panel buttons.

With a 1U rack-mountable form factor, the MUH44TP provides extremely versatile switching in a compact, convenient package that makes installation and room control nearly effortless. All HDBaseT outputs support RS232 tunneling, allowing a single controller to manage the entire system without additional serial cables creating clutter.

TEK MUH44TP Matrix Switcher Part Number: 79055
Input 4 HDMI (Female)
Output 2 HDMI (Female) 4 HDBaseT (RJ45 Female)
Resolution Range Up to 1920x1200 or 1080P@60Hz
Bandwidth 6.75Gbps
Switching Speed 200ns (max)
Transmission Distance 200 ft. (70m)
EDID Management EDID data and manual EDID management
HDCP Supports HDCP 1.3, auto and manual HDCP management
Audio Outputs 4 Stereo audio (3 Pin Phoenix) 4 Digital audio (RCA Coax)
Coax Output Supports PCM, Dolby, DTS 5.1
Frequency Response 20Hz~20KHz
Control Ports 4 IR OUT (3.5mm mini jack, Green) 4 IR IN (3.5mm mini jack, Black) 1 IR EYE (3.5mm mini jack, Black) 1 TCP/IP (Female RJ45) 1 RS232 (DB-9 Female) 4 RS232 (3 Pin Phoenix)
Panel Control Front panel buttons
TCP/IP Control Works with PTNET2.2
Power Supply Input: 100VAC ~ 240VAC, 50/60Hz Output: DC 48V, 1.6A
Power Consumption 48W
Temperature -4 ~ 158°F (-20 ~ 70°C)
Humidity 10% ~ 90%
Case Dimension 19"(483mm) x 1.73"(44mm) x 9.25"(235mm) 1U Rack-Mountable
Product Weight 4 lbs. (1.8kg)
Name
Category
Last Updated
Download

79055 MUH44TP Data Sheet

Data Sheets
04/24/2019
Data Sheets

79055 MUH44TP User Manual

Manuals
04/24/2019
Manuals

HDBaseT 4×4 HDMI Matrix Switcher Kit

SKU: 79055-K

TFX-OBT+ 4K HDBaseT 100m PoE Output Card

SKU: 79263

TFX-OUH 4K HDMI Output Card

SKU: 79240

TFX-IUH 4K HDMI Input Card

SKU: 79230
Summary

The TEK MUH44TP 79055 is a unique 4x4 HDMI matrix switcher with 4 HDMI inputs, and 2 HDMI & 4 HDBaseT outputs. Any input can be routed to any output with support for ultra-high resolution 4Kx2K@60Hz and 1080p-3D. HDMI signals can be transmitted without significant distortion up to 8m (25 ft), and HDBaseT up to 40m (130 ft). The MUH44TP provides 4 auxiliary audio outputs, and the switching can be controlled via RS232, IR remote, TCP/IP, or front-panel buttons.

With a 1U rack-mountable form factor, the MUH44TP provides extremely versatile switching in a compact, convenient package that makes installation and room control nearly effortless. All HDBaseT outputs support RS232 tunneling, allowing a single controller to manage the entire system without additional serial cables creating clutter.

Specifications
TEK MUH44TP Matrix Switcher Part Number: 79055
Input 4 HDMI (Female)
Output 2 HDMI (Female) 4 HDBaseT (RJ45 Female)
Resolution Range Up to 1920x1200 or 1080P@60Hz
Bandwidth 6.75Gbps
Switching Speed 200ns (max)
Transmission Distance 200 ft. (70m)
EDID Management EDID data and manual EDID management
HDCP Supports HDCP 1.3, auto and manual HDCP management
Audio Outputs 4 Stereo audio (3 Pin Phoenix) 4 Digital audio (RCA Coax)
Coax Output Supports PCM, Dolby, DTS 5.1
Frequency Response 20Hz~20KHz
Control Ports 4 IR OUT (3.5mm mini jack, Green) 4 IR IN (3.5mm mini jack, Black) 1 IR EYE (3.5mm mini jack, Black) 1 TCP/IP (Female RJ45) 1 RS232 (DB-9 Female) 4 RS232 (3 Pin Phoenix)
Panel Control Front panel buttons
TCP/IP Control Works with PTNET2.2
Power Supply Input: 100VAC ~ 240VAC, 50/60Hz Output: DC 48V, 1.6A
Power Consumption 48W
Temperature -4 ~ 158°F (-20 ~ 70°C)
Humidity 10% ~ 90%
Case Dimension 19"(483mm) x 1.73"(44mm) x 9.25"(235mm) 1U Rack-Mountable
Product Weight 4 lbs. (1.8kg)
