Description

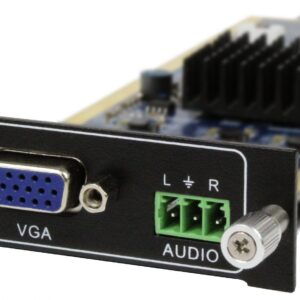

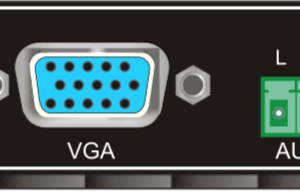

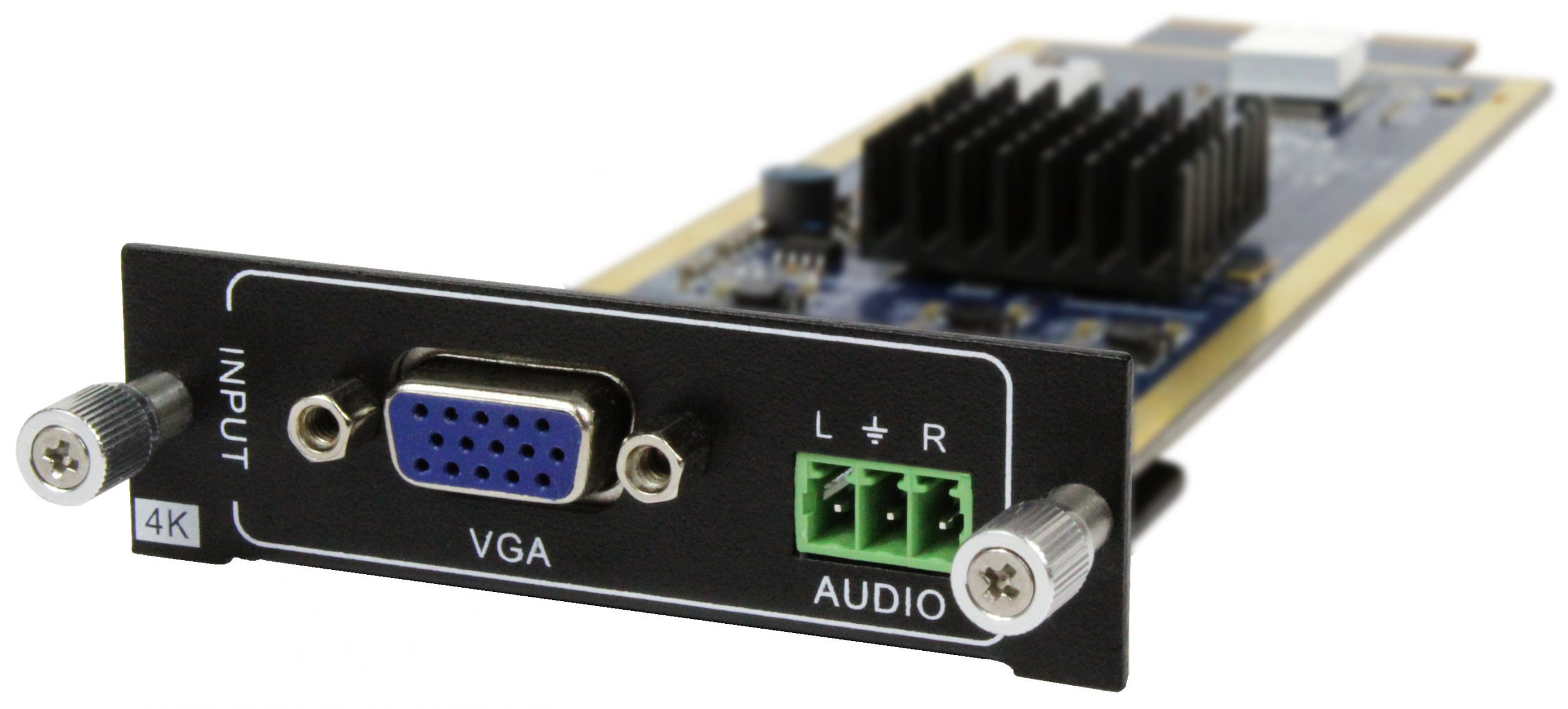

The TEK TFX-IUV is a TekFlex 4K VGA Input Card with analog audio input that works with our TekFlex-16 and TekFlex-32 Chassis.
Description
- 4K seamless VGA signal input card
- Max VGA input resolutions: 1920×1200p@60Hz
- External analog audio input for VGA video signal
- Video signal can be adjusted as 4K@30Hz 4:4:4
- Compatible with our TekFlex-16 or -32
| TekFlex Flexible Matrix 4K VGA Input Card | Part Number: 79232 |
|---|---|
| Input | 1 VGA (15-Pin, Female) 1 PCM Analog Audio (3 Pin Phoenix) |
| Supported Resolutions | Up to 1920x1080p@50/60Hz |
| Frequency Response | 20Hz ~ 20kHz, ±0.5dB |
| Power Consumption | 2W (max) |
| Temperature | 32 ~ 122°F (0 ~ 50°C) |
| Humidity | 10 ~ 90% |
