Description

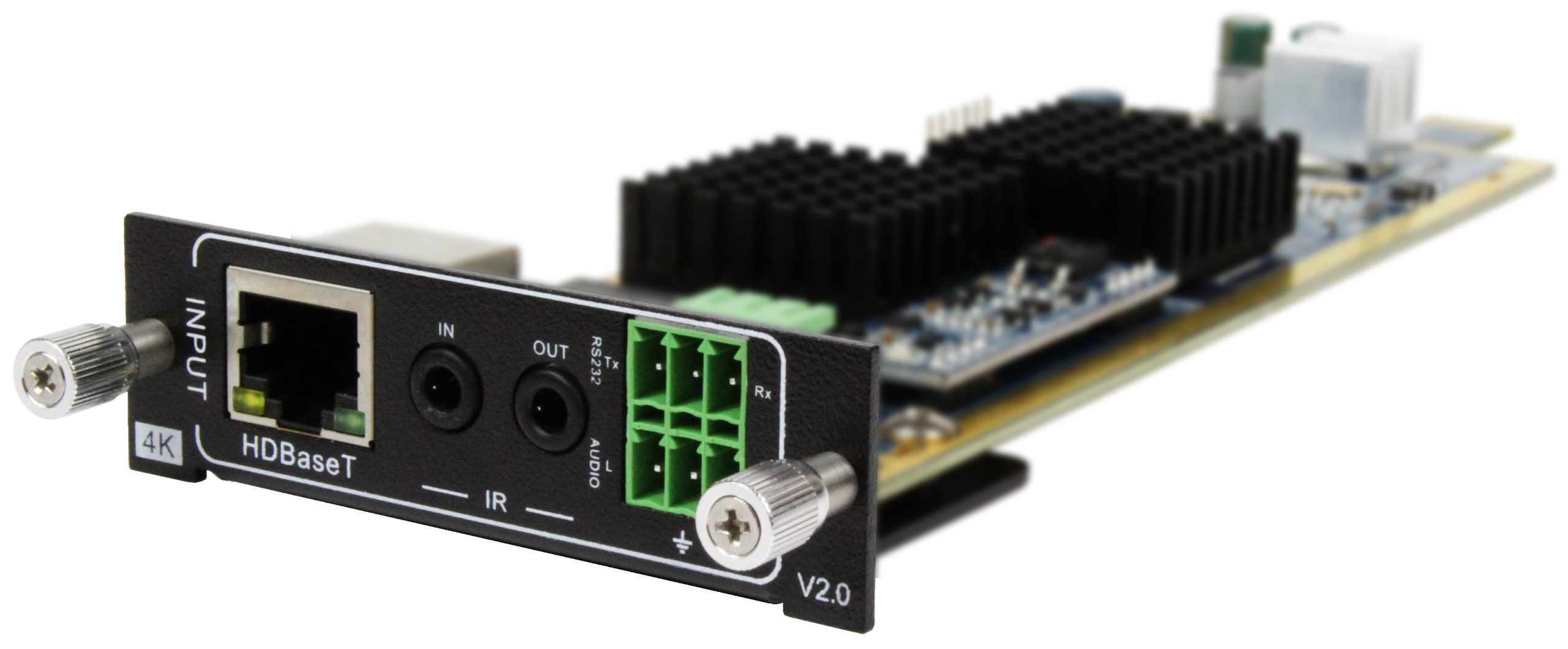

An upgraded version of the TFX-IBT, the TFX-IBT+ is an input card that works with our TekFlex-16 and TekFlex-32 Chassis. The card has a 4K HDBaseT 100m PoE input at 4Kx2K @60Hz resolution, with 4:2:0 Aux Audio Port and RS232 control.
Description
- Transmission of video, power, and serial commands up to 100m (325 ft)
- Capable of resolutions up to 4Kx2K @60Hz
- Compatible with any input slot of a TekFlex-16 or -32 flexible matrix switcher
| TekFlex Flexible Matrix 4K HDBaseT Input Card | Part Number: 79253 |
|---|---|

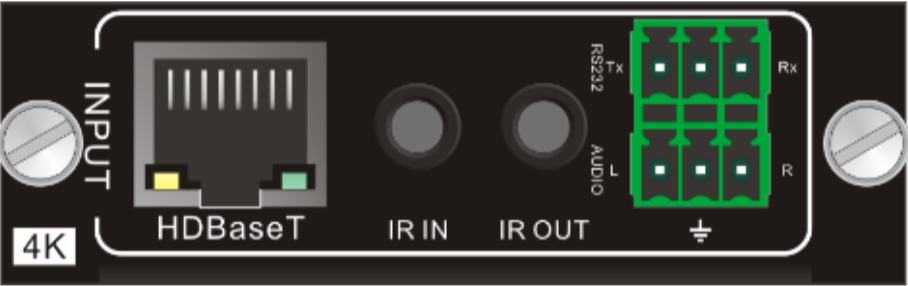

| Input | 1 HDBaseT (RJ45, Female) 1 Analog Audio (3 Pin Phoenix) 1 RS232 (3 Pin Phoenix) |
| Compliances | HDMI 2.0, HDCP 2.2, HDBaseT 1.0 |
| Supported Resolutions | 4Kx2K@60/30Hz, 1024x768, 1920x1080, 1280x720 |
| Bandwidth | 18 Gbps |
| Transmission Distance | 1080p: 325 ft (100m) 4K: 230 ft (70m) |
| Power Consumption | 15W (max) |
| Temperature | 32 ~ 122°F (0 ~ 50°C) |
| Humidity | 10 ~ 90% |
