Description

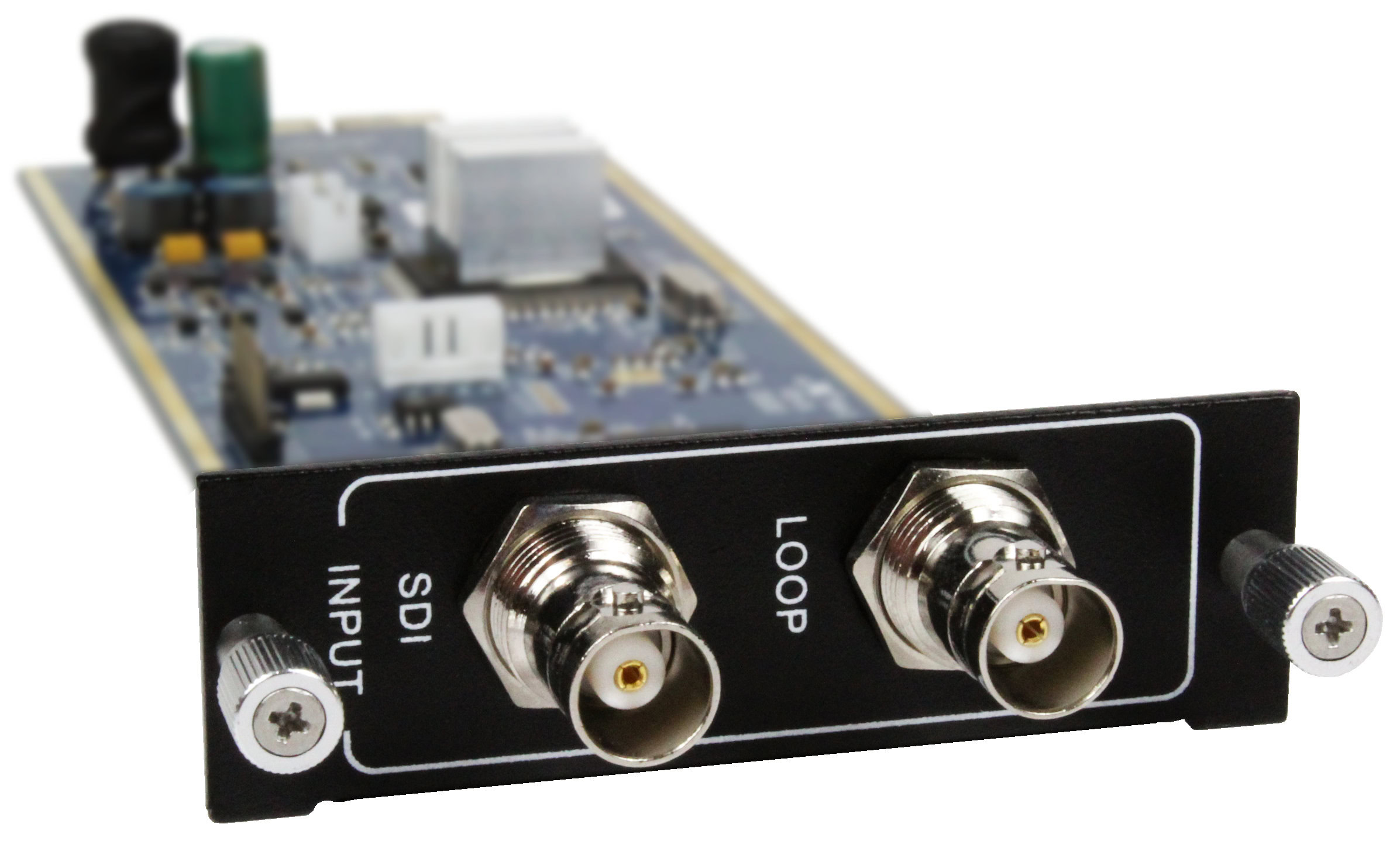

The TEK TFX-ISD is an SDI input card with loop output that works with our TekFlex-16 and TekFlex-32 Chassis.
Description

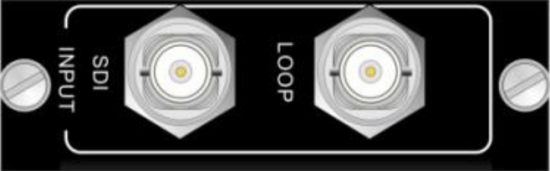

- SDI Input and SDI Loop output
- Capable of resolutions up to full 1080P
- Transmission distances of up to 160m (530 ft)
- Maximum power consumption of only 6.1W
- Compatible with our TekFlex-16 or -32
| TekFlex Flexible Matrix HD SDI Input Card | Part Number: 79214 |
|---|---|
| Input | 1 SDI (BNC, Female) |
| Output | 1 SDI Loop (BNC, Female) |
| Signal Format | 3G-SDI/HD-SDI/SDI |
| Supported Resolutions | Up to 1920x1080p |
| Transmission Distance | Up to 325 ft. (100m) @1080p |
| Power Consumption | 6.1W (max) |
| Temperature | 32 ~ 122°F (0 ~ 50°C) |
| Humidity | 10 ~ 90% |
