Description

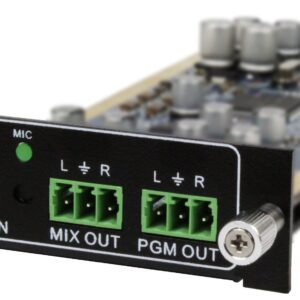

The TEK TFX-OAU is a TekFlex Audio output card with EQ Control that works with our TekFlex-16 and TekFlex-32 Chassis.
Description
- Single input, dual output stereo audio
- Mic/Line In, Mix and Pgm Out
- 3-pin pluggable terminal block connectors
- Maximum power consumption of only 5W
- Compatible with our TekFlex-16 or -32
| TekFlex Flexible Matrix Audio Output Card | Part Number: 79250 |
|---|---|
| Input | Mic/Line PCM Audio (3 Pin Phoenix) |
| Output | 1 Mix PCM Audio (3 Pin Phoenix) 1 PGM PCM Audio (3 Pin Phoenix) |
| Frequency Response | 20Hz ~ 20kHz, ±0.5 dB |
| Common-Mode Rejection Ratio (CMRR) | >85dB@20Hz ~ 20kHz |
| Power Consumption | 5W |
| Temperature | 32 ~ 122°F (0 ~ 50°C) |
| Humidity | 10 ~ 90% |
