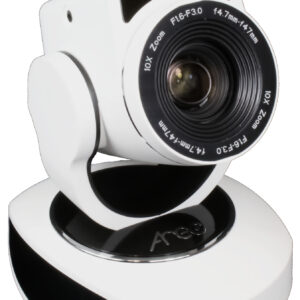

HD/1080p Auto-Tracking Camera – 10x Zoom

SKU: 79068-Auto10

79068-STD-10T_1 zoom
79068-STD-10T_panel zoom
79068-STD-10T_1
79068-STD-10T_panel
Full Screen

Description

  • Smooth, high-accuracy automatic tracking of speaker
  • Crisp full-HD video with 10x optical zoom and sophisticated noise reduction
  • Controllable via RS-232, remote control, or VISA/PELCO-D/PELCO-P
  • Advanced configuration and live previews through intuitive web console
  • Continuous tracking operation for up to four hours, at distances of 3 ~ 10m (10 ~ 33 ft)
Buy on Dealer StoreContact a Sales Rep

Description

With full-HD video and 10x optical zoom, the 79068-Auto10 provides exceptional video quality and smooth, precise auto-tracking. The camera features a modern, sophisticated design, and its precision-engineered mechanisms guarantee fluid & silent PTZ movement. 255 configurable presets provide near-limitless customizability, while support for RS-232, IR remote, or TCP/IP commands provides versatility for any installation.

The 79068-Auto10’s exemplary auto-tracking produces higher-caliber lecture recording and remote education, allowing instructors to move naturally, and to focus on providing students with a first-class education.

HD Auto-Tracking PTZ Camera, 10x Optical Zoom Part Number: 79068-Auto10
Optical Zoom 10x f = 4.7 ~ 47mm
Effective Pixels 16:9, 2.07 Megapixel
Video Resolution Up to 1080p @ 60Hz
View Angle 6.43° (tele) ~ 60.9° (wide)

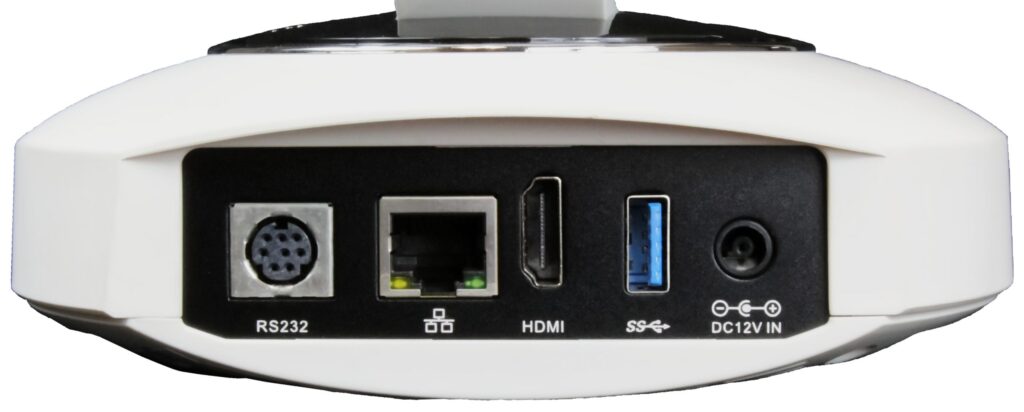

Video Outputs HDMI (19-pin, Female) USB3.0 (Type-A, Female) LAN (100Base-T, RJ45, Female)
Control Ports RS-232 Input (8-pin Mini-DIN, Female)
Range of Motion Pan: ±135° Tilt: ±30°
Power Supply Input: 110 ~ 220 VAC Output: DC 12V / 2A
Power Consumption 24W (max)
Presets Up to 255 configurable presets (10 via remote control)
Tracking Distance 10 ~ 33 ft (3 ~ 10m)
Tracking Pendant Battery Life ~4 hours (continuous operating time)
Temperature 14 ~ 122°F (-10 ~ 50°C)
Humidity 20 ~ 80%
Product Dimensions 5.15" (131mm) x 5.94" (151mm) x 7.09" (180mm)
Product Weight 2.4 lbs. (1.1kg)
Name
Category
Last Updated
Download

79068-Auto10 Auto-Tracking Camera Data Sheet

Data Sheets
09/18/2020
Data Sheets

79068-Auto10 Camera User Manual

Manuals
09/18/2020
Manuals

HD/1080p Auto-Tracking PTZ Camera – 20x Zoom

SKU: 79068-Auto

PTZ Auto-Tracking Camera – 20x Zoom

SKU: 79068-Auto20

HD/1080p HDBase-T PTZ Camera – 12x Zoom

SKU: 79068-HDBT-12

PTZ Camera Control Joystick and Keyboard

SKU: 79068-Kybd
Summary

With full-HD video and 10x optical zoom, the 79068-Auto10 provides exceptional video quality and smooth, precise auto-tracking. The camera features a modern, sophisticated design, and its precision-engineered mechanisms guarantee fluid & silent PTZ movement. 255 configurable presets provide near-limitless customizability, while support for RS-232, IR remote, or TCP/IP commands provides versatility for any installation.

The 79068-Auto10's exemplary auto-tracking produces higher-caliber lecture recording and remote education, allowing instructors to move naturally, and to focus on providing students with a first-class education.

Specifications
HD Auto-Tracking PTZ Camera, 10x Optical Zoom Part Number: 79068-Auto10
Optical Zoom 10x f = 4.7 ~ 47mm
Effective Pixels 16:9, 2.07 Megapixel
Video Resolution Up to 1080p @ 60Hz
View Angle 6.43° (tele) ~ 60.9° (wide)
Video Outputs HDMI (19-pin, Female) USB3.0 (Type-A, Female) LAN (100Base-T, RJ45, Female)
Control Ports RS-232 Input (8-pin Mini-DIN, Female)
Range of Motion Pan: ±135° Tilt: ±30°
Power Supply Input: 110 ~ 220 VAC Output: DC 12V / 2A
Power Consumption 24W (max)
Presets Up to 255 configurable presets (10 via remote control)
Tracking Distance 10 ~ 33 ft (3 ~ 10m)
Tracking Pendant Battery Life ~4 hours (continuous operating time)
Temperature 14 ~ 122°F (-10 ~ 50°C)
Humidity 20 ~ 80%
Product Dimensions 5.15" (131mm) x 5.94" (151mm) x 7.09" (180mm)
Product Weight 2.4 lbs. (1.1kg)
Downloads
Name
Category
Last Updated
Download

79068-Auto10 Auto-Tracking Camera Data Sheet

Data Sheets
09/18/2020
Data Sheets

79068-Auto10 Camera User Manual

Manuals
09/18/2020
Manuals
