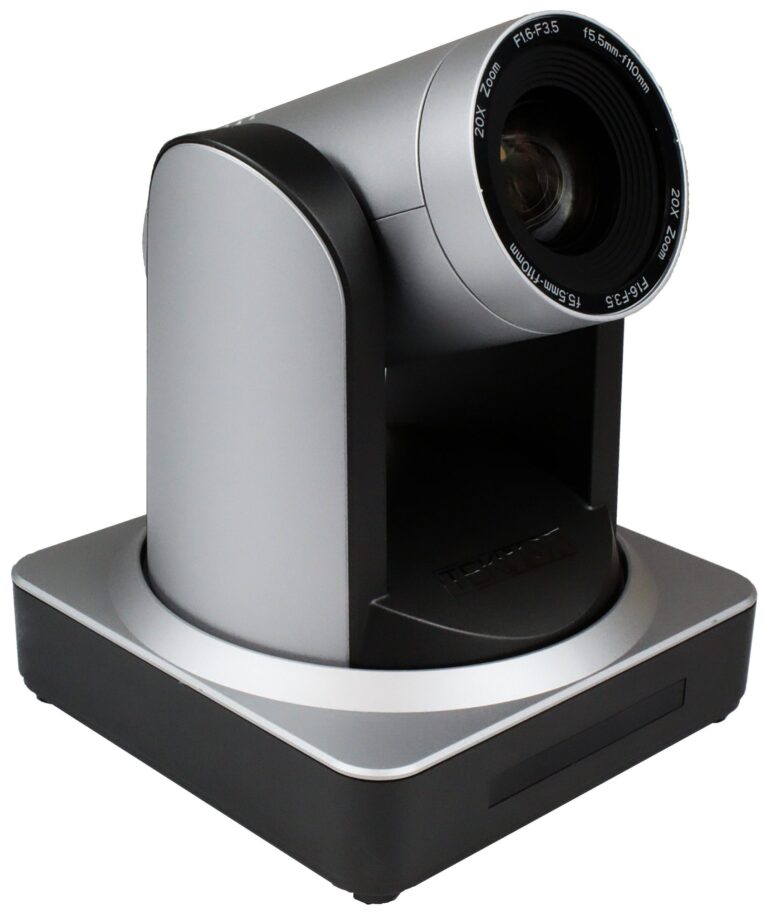

HD/1080p HDMI/USB PTZ Camera – 20x Zoom

SKU: 79068-HDMI/USB-20

79068-HDMI-20_main zoom
79068-HDMI-20_5 zoom
79068-HDMI-20_main
79068-HDMI-20_5
Full Screen

Description

  • 20x optical zoom and 10x digital zoom
  • Simultaneous HDMI, USB 2.0, and USB 3.0 video outputs
  • Advanced image correction, noise reduction, and backlight compensation
  • 255 programmable presets for customized operation
  • Controllable via RS-232/RS-485 commands, IR remote, or TCP/IP protocols
Buy on Dealer StoreContact a Sales Rep

Description

TEKVOX’s 79068-HDMI/USB cameras are high-definition HDMI 1080p@60Hz PTZ cameras with 5x or 20x optical zoom lenses. With a 16:9 aspect ratio, 2.1 Megapixel CCD, and 255 programmable presets, these cameras make an excellent choice for any class or conference room. The 79068-HDMI/USB-20 excels at capturing flawless video of distant subjects. The camera is compatible with Sony VISCA TCP/IP protocols, can stream to multiple points simultaneously using IP control, and offers some of the smoothest PTZ movement available on the market.

HDMI/USB PTZ Camera, 20x Optical Zoom Part Number: 79068-HDMI/USB-20
Sensor 1/2.8 inch high-quality CMOS
Effective Pixels 16:9, 2.07 megapixel
Inputs 1 Audio In (3.5mm mini jack)

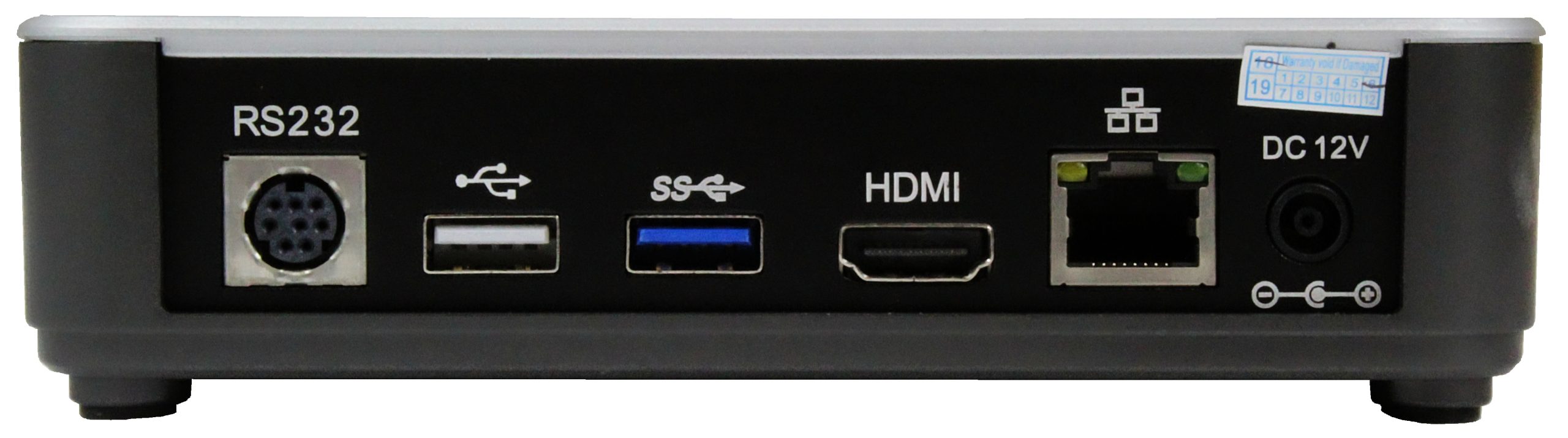

Outputs 1 HDMI (19-pin, Female) 1 USB (Type-A, Female, USB 2.0) 1 USB (Type-A, Female, USB 3.0)
Output Resolution HDMI: Up to 1080p @ 60Hz USB 3.0: Up to 1920x1080p @ 60Hz USB 3.0 (Compatible with USB 2.0): Up to 960x540p @ 30Hz USB 2.0: Up to 1920x1080p @ 30Hz
Optical Zoom 20x (f = 5.5 ~ 110mm)
Digital Zoom 10x
View Angle 3.3° (tele) ~ 54.7° (wide)
Aperture Value (AV) F1.6 ~ F3.5
Pan Rotation ±170°
Tilt Rotation -30° ~ 90°
Presets 255 possible presets (10 presets by remote controller)
Control Ports 1 RS232 (8-pin Mini-DIN, Female) 1 TCP/IP (RJ45, Female)
Power Supply Input: 110~220 VAC Output: DC 12V, 2A
Power Consumption 12W (max)
Temperature 14 ~ 122°F (-10 ~ 50°C)
Humidity 20 ~ 80%
Product Dimensions 5.9" (150mm) x 5.9" (150mm) x 6.66" (167.5mm)
Product Weight 3.1 lbs. (1.4kg)
Name
Category
Last Updated
Download

79068 Camera User Manual

Manuals
06/19/2020
Manuals

79068-HDMI/USB Data Sheet

Data Sheets
07/06/2022
Data Sheets

PTZ Auto-Tracking Camera – 20x Zoom

SKU: 79068-Auto20

HD/1080p HDBase-T PTZ Camera – 12x Zoom

SKU: 79068-HDBT-12

PTZ Camera Control Joystick and Keyboard

SKU: 79068-Kybd

HD/1080p Auto-Tracking PTZ Camera – 20x Zoom

SKU: 79068-Auto
Summary

TEKVOX’s 79068-HDMI/USB cameras are high-definition HDMI 1080p@60Hz PTZ cameras with 5x or 20x optical zoom lenses. With a 16:9 aspect ratio, 2.1 Megapixel CCD, and 255 programmable presets, these cameras make an excellent choice for any class or conference room. The 79068-HDMI/USB-20 excels at capturing flawless video of distant subjects. The camera is compatible with Sony VISCA TCP/IP protocols, can stream to multiple points simultaneously using IP control, and offers some of the smoothest PTZ movement available on the market.

Specifications
HDMI/USB PTZ Camera, 20x Optical Zoom Part Number: 79068-HDMI/USB-20
Sensor 1/2.8 inch high-quality CMOS
Effective Pixels 16:9, 2.07 megapixel
Inputs 1 Audio In (3.5mm mini jack)
Outputs 1 HDMI (19-pin, Female) 1 USB (Type-A, Female, USB 2.0) 1 USB (Type-A, Female, USB 3.0)
Output Resolution HDMI: Up to 1080p @ 60Hz USB 3.0: Up to 1920x1080p @ 60Hz USB 3.0 (Compatible with USB 2.0): Up to 960x540p @ 30Hz USB 2.0: Up to 1920x1080p @ 30Hz
Optical Zoom 20x (f = 5.5 ~ 110mm)
Digital Zoom 10x
View Angle 3.3° (tele) ~ 54.7° (wide)
Aperture Value (AV) F1.6 ~ F3.5
Pan Rotation ±170°
Tilt Rotation -30° ~ 90°
Presets 255 possible presets (10 presets by remote controller)
Control Ports 1 RS232 (8-pin Mini-DIN, Female) 1 TCP/IP (RJ45, Female)
Power Supply Input: 110~220 VAC Output: DC 12V, 2A
Power Consumption 12W (max)
Temperature 14 ~ 122°F (-10 ~ 50°C)
Humidity 20 ~ 80%
Product Dimensions 5.9" (150mm) x 5.9" (150mm) x 6.66" (167.5mm)
Product Weight 3.1 lbs. (1.4kg)
