PTZ Auto-Tracking Camera – 20x Zoom

SKU: 79068-Auto20

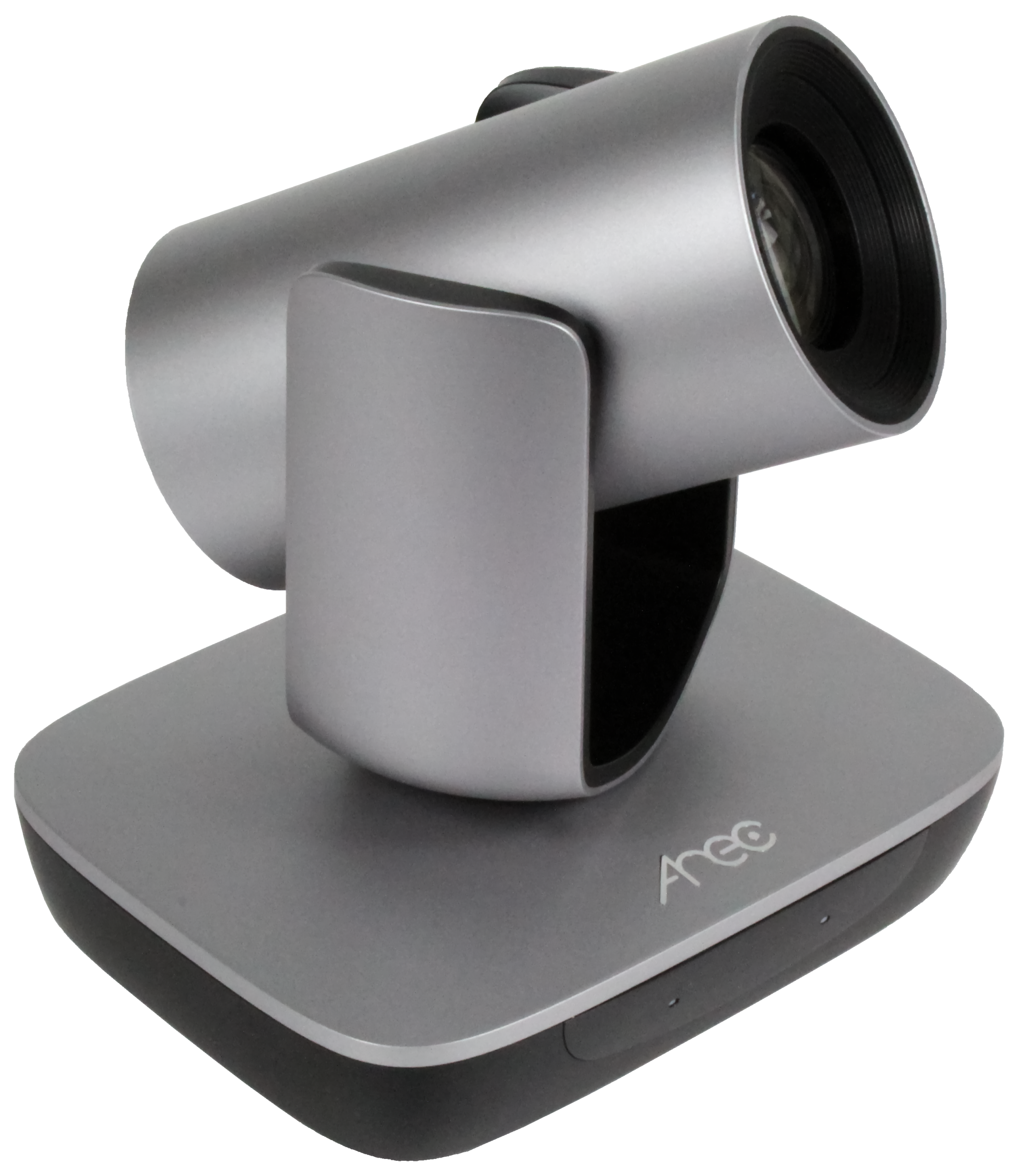

79068-Auto20_1 zoom

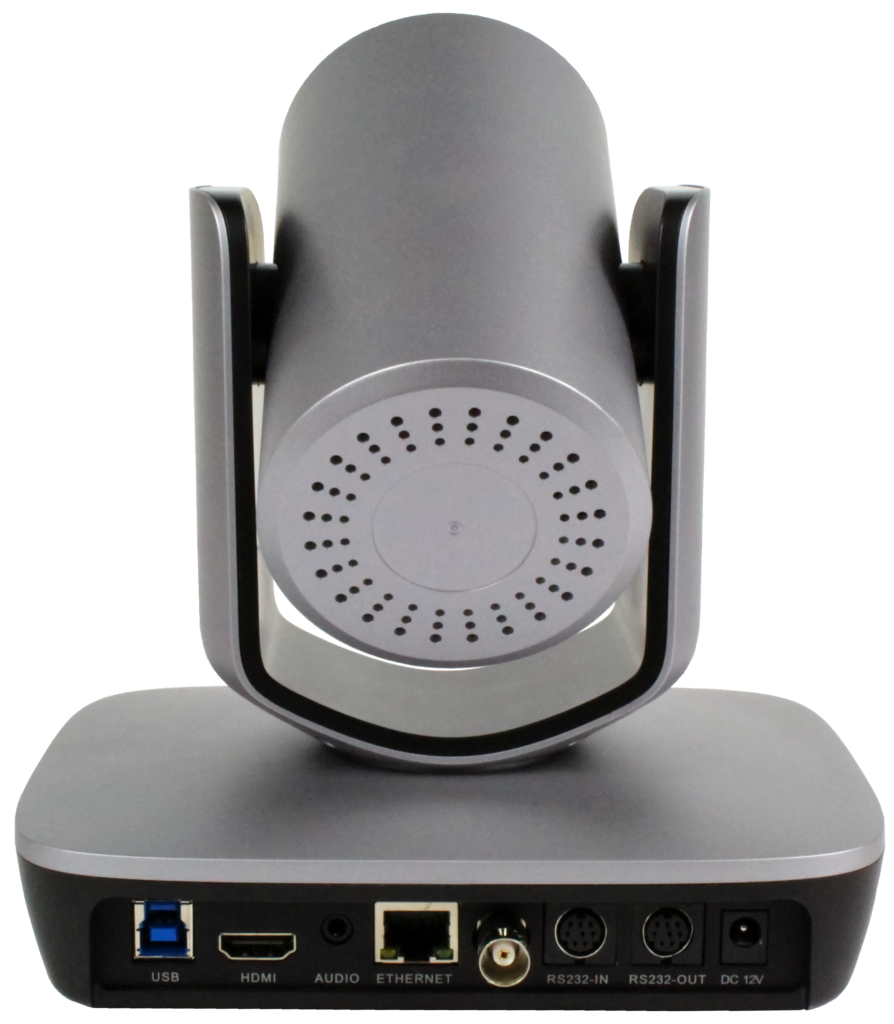

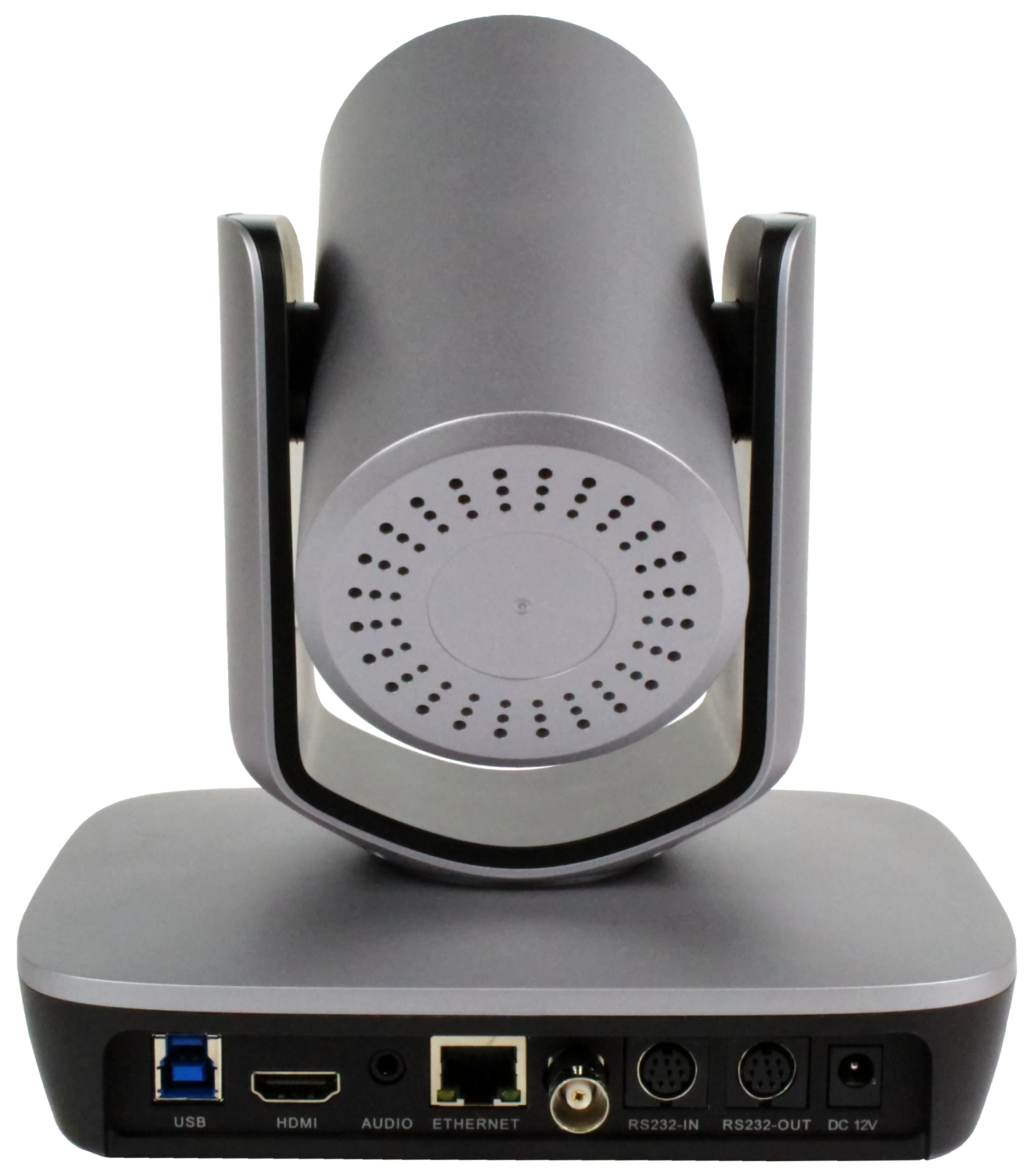

79068-Auto20_back zoom
79068-Auto20_1
79068-Auto20_back
Full Screen

Description

  • Advanced ISP algorithm and face detection for unrivalled auto-tracking
  • Exceptional image quality in any space with 20x optical zoom and 1080p@60Hz resolution
  • Unbelievably smooth and quiet PTZ movement
  • Up to 64 programmable preset positions for near-limitless customization
  • Simultaneous HDMI, USB 3.0, IP, and 3G-SDI video outputs offer universal compatibility

Description

With 1920×1080@60Hz resolution and 20x optical zoom, the 79068-Auto20 guarantees consistent HD image quality in rooms of any size. The camera’s sophisticated facial recognition and ISP algorithms deliver accurate tracking of a presenter, and incredibly smooth and silent PTZ movement and ultra-wide range of motion keep presenters in-frame no matter how far they move. Finally, the 79068-Auto20 includes 64 programmable presets, control via RS232, IR, or TCP/IP, and simultaneous HDMI, USB 3.0, IP, and 3G-SDI video outputs.

With exceptional PTZ movement, cutting-edge auto-tracking, full HD video, and 20x optical zoom to accommodate any room size, the 79068-Auto20 is an unmatched option for capturing high quality video of dynamic speakers in any industry.

PTZ Auto-Tracking Camera, 20x Optical Zoom Part Number: 79068-Auto20
Image Sensor 1/2.8" CMOS, 2.14MP
Minimum Illumination 0.5 Lux @ F1.6
Lens 20x optical zoom
Video Resolution Up to 1920x1080 @ 60Hz
Field of View (FOV) 2.9° (tele) ~ 59.5° (wide)
Video Outputs HDMI (19-pin, Female) USB 3.0 (Type-B, Female) LAN (RJ45, Female) 3G-SDI
Control Ports RS-232 (8-pin Mini-DIN, Female)
Range of Motion Pan: ±170° Tilt: -30 ~ 90°
Presets 64 programmable
Temperature 32 ~ 104°F (0 ~ 40°C)
Humidity 10 ~ 90%
Power Supply Input: 100 ~ 240 VAC, 50/60Hz Output: DC 12V / 2A
Power Consumption 15W (max)
Product Dimensions 6.93” (176mm) x 6.65” (169mm) x 5.35” (136mm)
Product Weight 2.4 lbs. (1.1kg)
