4K ePTZ Auto-Tracking Camera

SKU: 79068-AT2

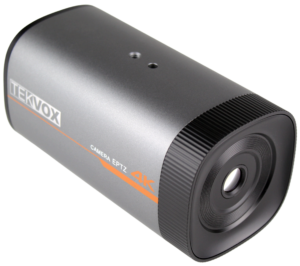

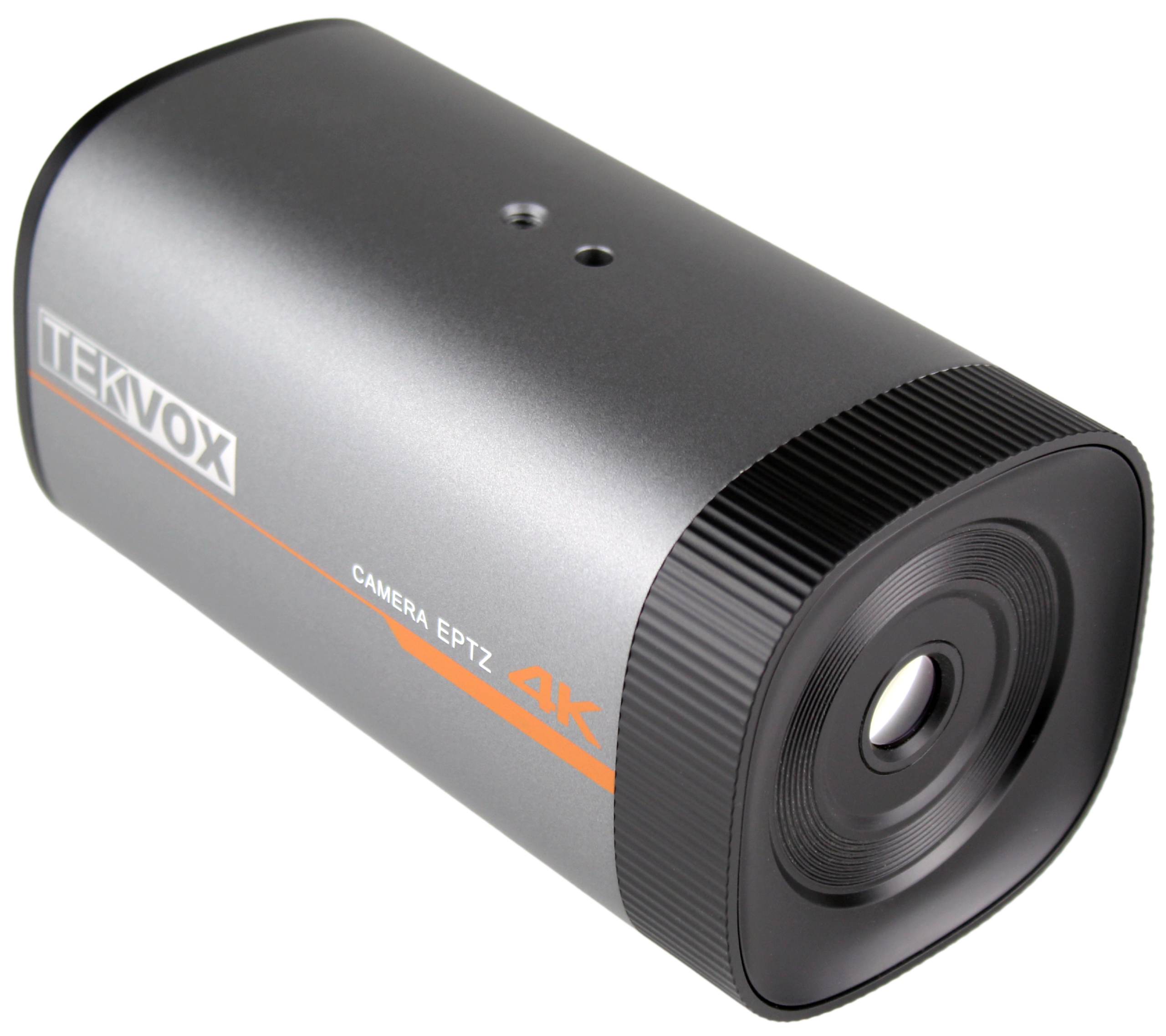

79068-AT2_1 zoom

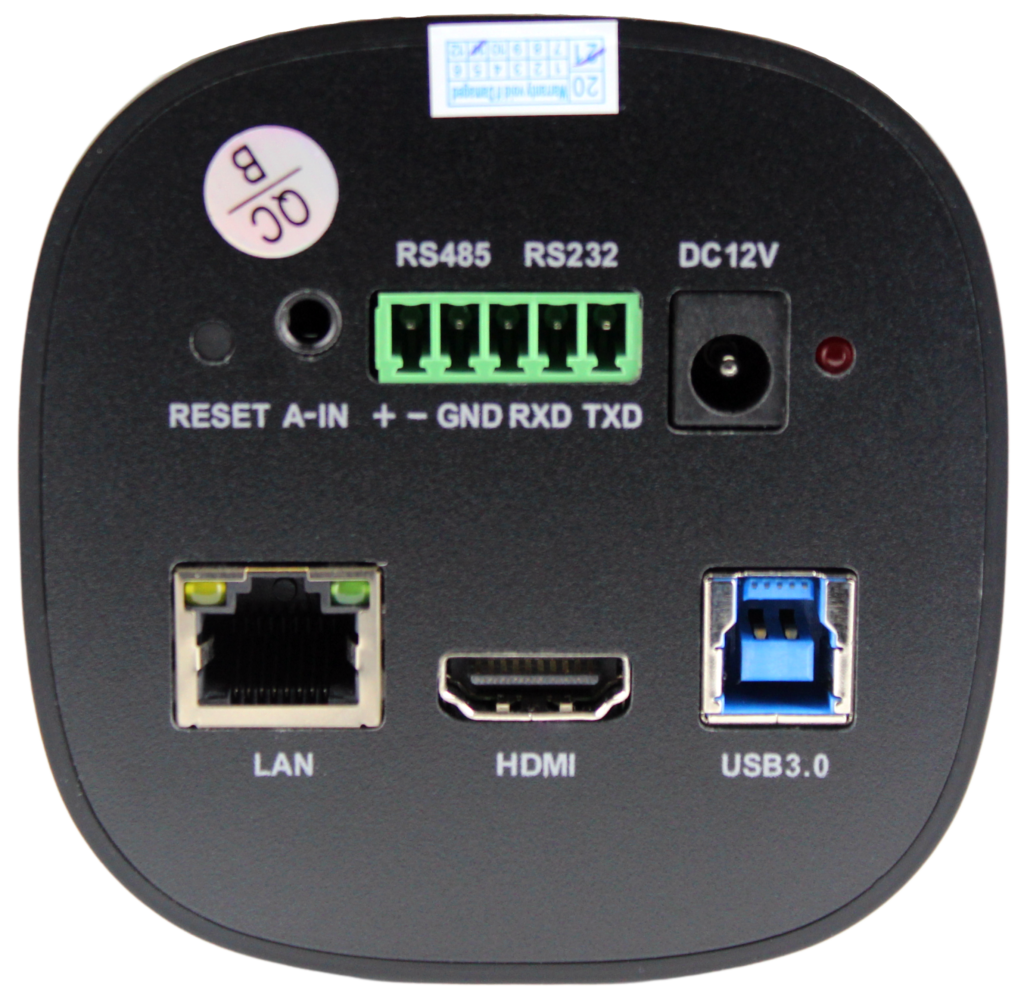

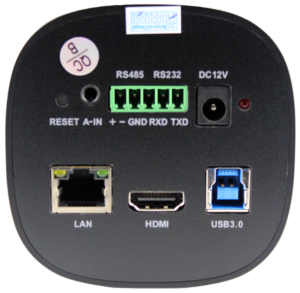

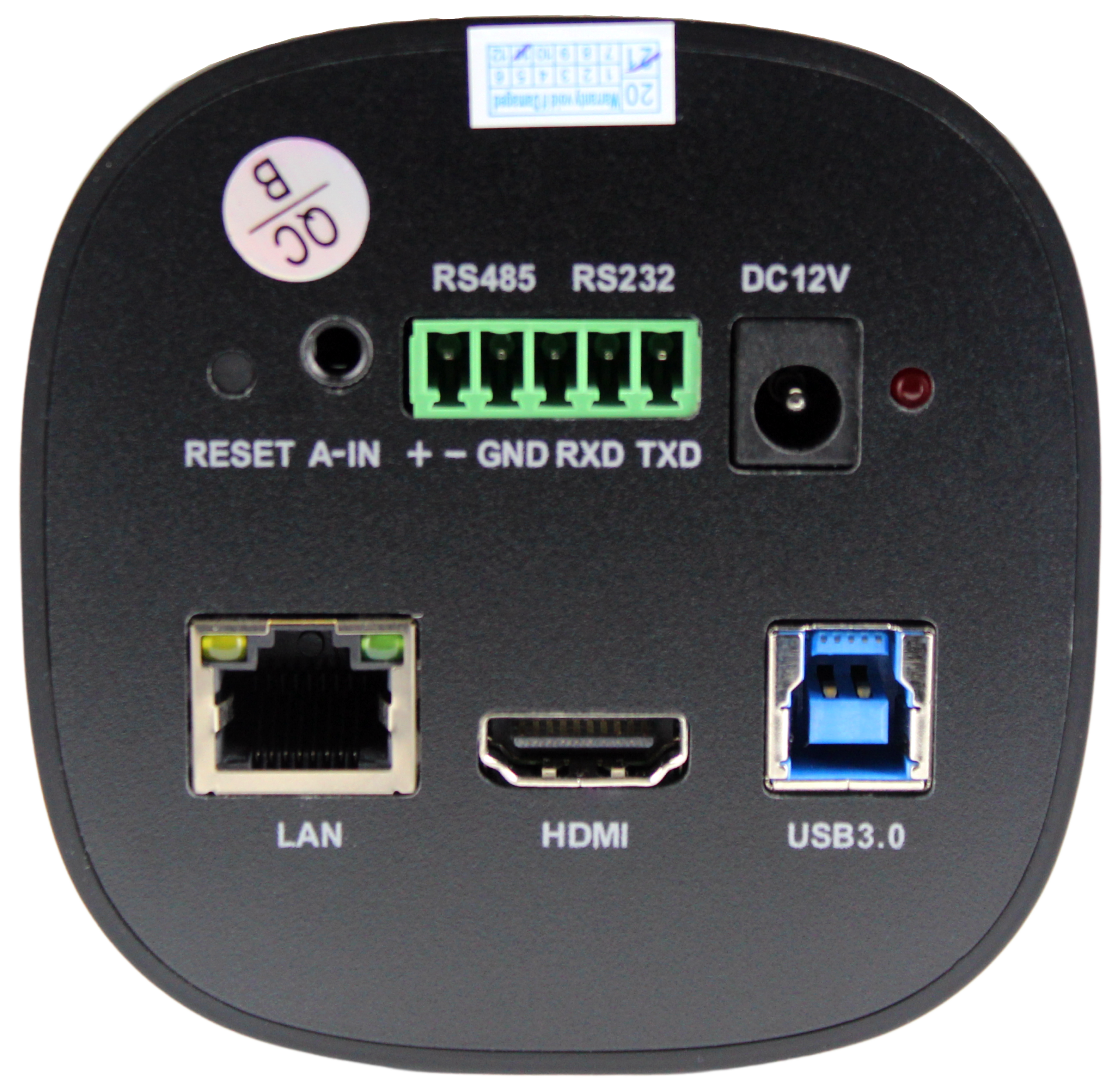

79068-AT2_back zoom
79068-AT2_1
79068-AT2_back
Full Screen

Features

  • Smooth, intelligent auto-tracking with multiple tracking modes
  • Mount anywhere with ePTZ (no motors or PTZ movement needed)
  • Exceptional image quality with ultra-wide 4K lens
  • Simultaneous USB 3.0, HDMI, and and Gigabit LAN video outputs
  • Controllable via RS-232/485, VISCA network protocols, or Pelco-D/P commands
  • Can be powered via included 12V adapter or via PoE
Buy on Dealer StoreContact a Sales Rep

Description

TEKVOX’s 4K ePTZ auto-tracking camera performs smooth, natural tracking without any PTZ motors. By capturing a 4K image with its ultra-wide lens and dynamically selecting a window from within that view, the 79068-AT2 silently tracks active presenters. The camera includes multiple tracking modes, and is perfect for any room size, light level, or orientation. The camera offers simultaneous USB 3.0, HDMI, and Gigabit LAN video outputs, and can be powered from its LAN connection with PoE.

With a compact design and no PTZ motors, the 79068-AT2 is a robust, versatile, and high-quality ePTZ auto-tracking camera perfect for video conferencing in classrooms, training centers, conference rooms, and more.

4K ePTZ Auto-Tracking Camera Part Number: 79068-AT2
Effective Pixels 8.28M, 16:9
Output Resolution HDMI: 1080p@30/29.97/25Hz; 720p@29.97Hz USB 3.0: 1920x1080p@30/25Hz; 1280x720p@60/50/30/25Hz; 960x540p@30Hz; 640x360p@30Hz; 640x480p@30Hz; 352x288p@30Hz; 960x540p@30Hz; 800x600p@30Hz; Compatible with USB2.0
View Angle 57.2° (D) / 47° (H) / 36° (V)
Digital Zoom 3x
Video Outputs 1x HDMI (19-pin, Female) 1x USB 3.0 (Type-B) 1x 10M/100M/1000M Ethernet LAN (Adaptive, supports PoE)
Audio Inputs Dual audio channel (3.5mm mini jack)
Control Interfaces VISCA, Pelco-D/P Supports baud rates 115200/38400/960/4800/2400 Supports VISCA network control protocols
Power Input Power Adapter: DC 12V, 0.42A (max) PoE: DC 48V, 0.104A (max)
Power Consumption 5W (max)
Operating Temperature 14 ~ 122°F (-10 ~ 50°C)
Operating Humidity 20 ~ 80%
Product Dimensions 5.86" (149mm) x 3" (76mm) x 3" (76mm)
Product Weight 1.17 lbs. (0.53kg)
Name
Category
Last Updated
Download

79068-AT2 Camera Data Sheet

Data Sheets
04/16/2021
Data Sheets

79068-AT2 User Manual

Manuals
07/07/2021
Manuals

HD/1080p HDBase-T PTZ Camera – 5x Zoom

SKU: 79068-HDBT-5

HD/1080p Auto-Tracking Camera – 10x Zoom

SKU: 79068-Auto10

PTZ Camera Control Joystick and Keyboard

SKU: 79068-Kybd

HD/1080p HDBase-T PTZ Camera – 20x Zoom

SKU: 79068-HDBT-20
Summary

TEKVOX's 4K ePTZ auto-tracking camera performs smooth, natural tracking without any PTZ motors. By capturing a 4K image with its ultra-wide lens and dynamically selecting a window from within that view, the 79068-AT2 silently tracks active presenters. The camera includes multiple tracking modes, and is perfect for any room size, light level, or orientation. The camera offers simultaneous USB 3.0, HDMI, and Gigabit LAN video outputs, and can be powered from its LAN connection with PoE.

With a compact design and no PTZ motors, the 79068-AT2 is a robust, versatile, and high-quality ePTZ auto-tracking camera perfect for video conferencing in classrooms, training centers, conference rooms, and more.

Specifications
4K ePTZ Auto-Tracking Camera Part Number: 79068-AT2
Effective Pixels 8.28M, 16:9
Output Resolution HDMI: 1080p@30/29.97/25Hz; 720p@29.97Hz USB 3.0: 1920x1080p@30/25Hz; 1280x720p@60/50/30/25Hz; 960x540p@30Hz; 640x360p@30Hz; 640x480p@30Hz; 352x288p@30Hz; 960x540p@30Hz; 800x600p@30Hz; Compatible with USB2.0
View Angle 57.2° (D) / 47° (H) / 36° (V)
Digital Zoom 3x
Video Outputs 1x HDMI (19-pin, Female) 1x USB 3.0 (Type-B) 1x 10M/100M/1000M Ethernet LAN (Adaptive, supports PoE)
Audio Inputs Dual audio channel (3.5mm mini jack)
Control Interfaces VISCA, Pelco-D/P Supports baud rates 115200/38400/960/4800/2400 Supports VISCA network control protocols
Power Input Power Adapter: DC 12V, 0.42A (max) PoE: DC 48V, 0.104A (max)
Power Consumption 5W (max)
Operating Temperature 14 ~ 122°F (-10 ~ 50°C)
Operating Humidity 20 ~ 80%
Product Dimensions 5.86" (149mm) x 3" (76mm) x 3" (76mm)
Product Weight 1.17 lbs. (0.53kg)
