PTZ Camera Control Joystick and Keyboard

SKU: 79068-Kybd

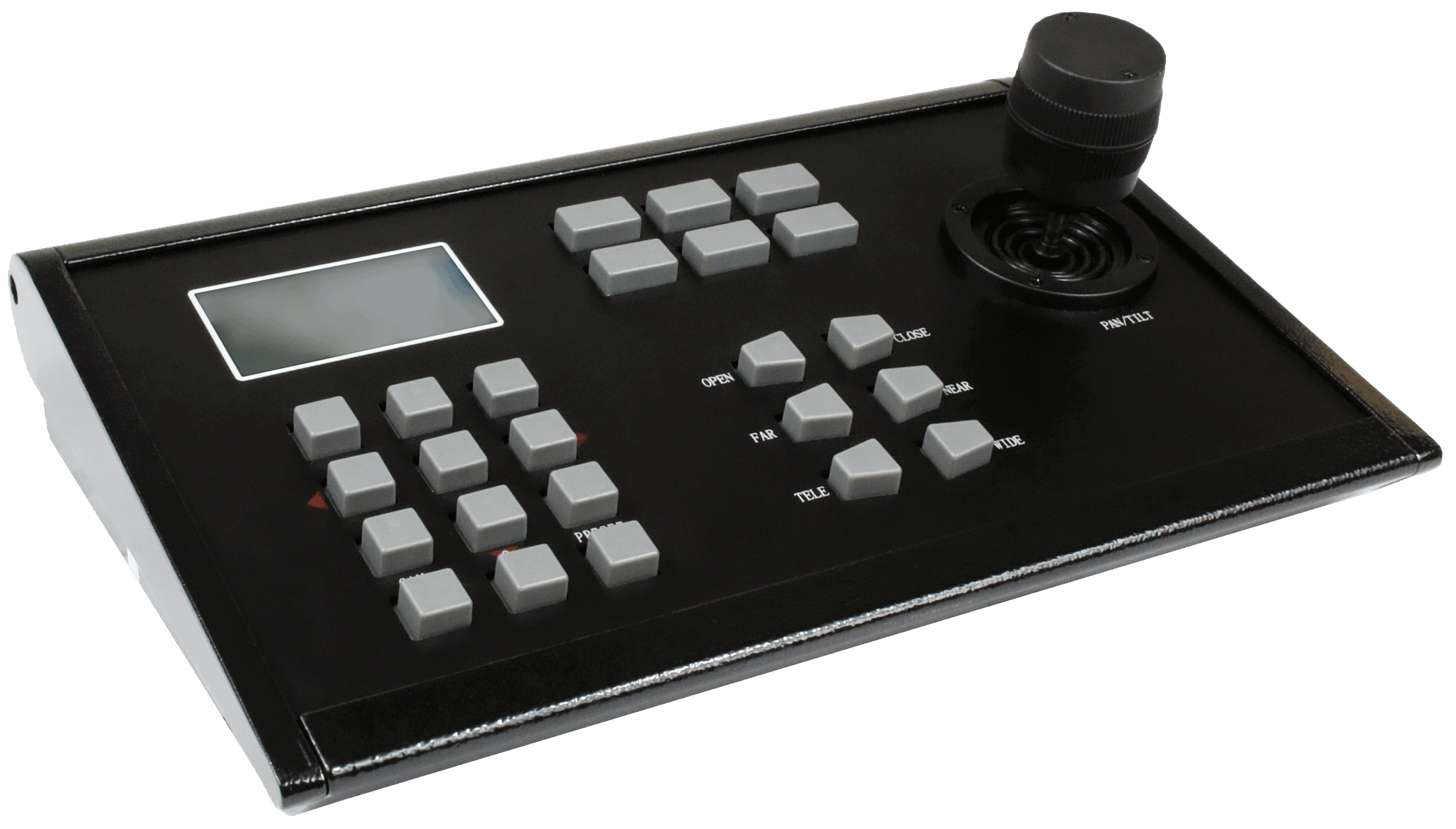

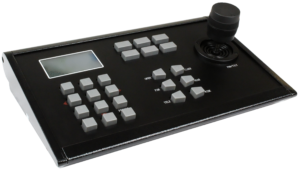

79068-Kybd_1 zoom

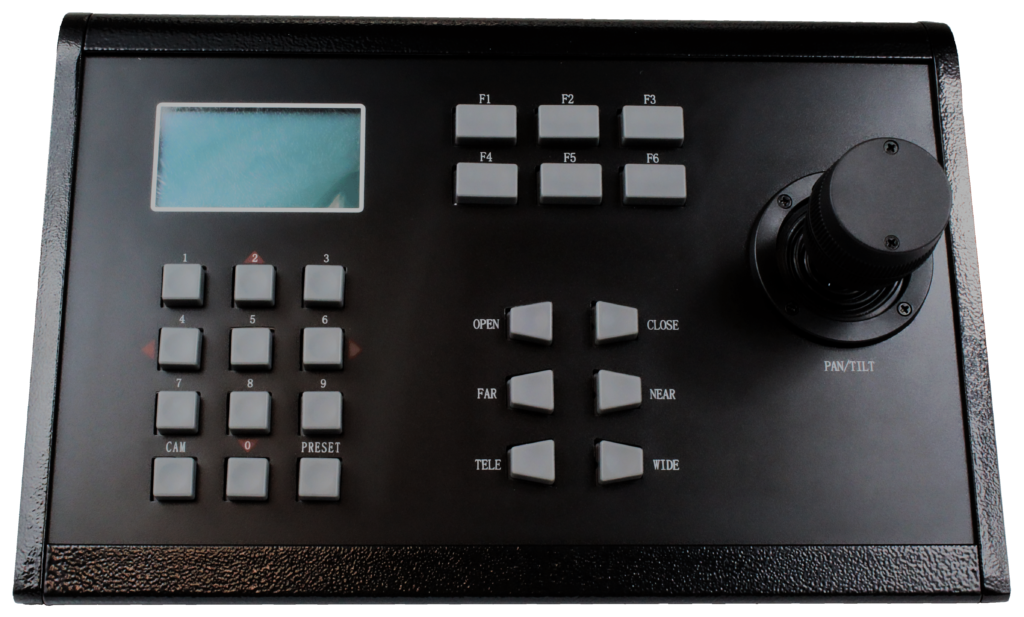

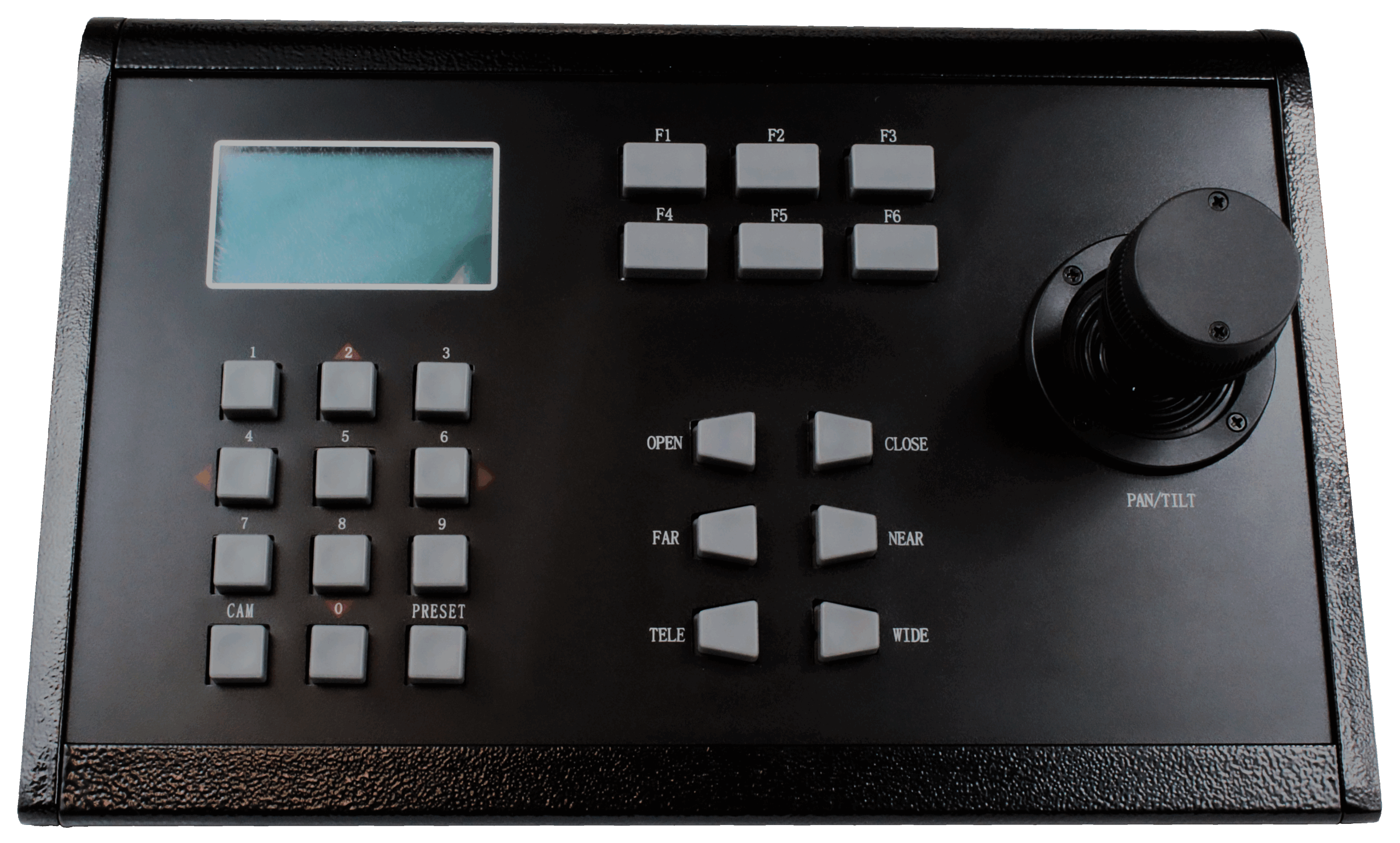

79068-Kybd_front zoom
79068-Kybd_1
79068-Kybd_front
Full Screen

Description

  • Controls pan, tilt, zoom, iris, and focus of PTZ cameras
  • 3-axis joystick for precise direction and speed control
  • Compatible with RS232, Pelco P/D or VISCA protocol
  • Energy-saving, with maximum power usage of only 5W

Description

The TEK 79068-Kybd offers a comprehensive, easy-to-use control interface for TEKVOX PTZ cameras, with controls for pan, tilt, zoom, and focus. Included 3-axis joystick can control camera movement direction & speed, as well as rotating for zoom adjustment. An LCD display and keyboard buttons allow key-control of the camera, along with setting and execution of position presets and customization of camera & controller settings.

Camera Control Joystick & Keyboard Part Number: 79068-Kybd
Interfaces 1 TCP/IP/RS-485 (RJ45 Female) RS-422 (4 Pin Phoenix) RS-485 (2 Pin Phoenix) RS-232 (DB-9 Male)
Display 3.2" Digital LCD Display
Joystick 3 Axis, Auto Home Position
Power Supply Input: 100 ~ 240V AC Output: DC 12V, 500mA
Power Consumption 5W (max)
Temperature -4 ~ 158°F (-20 ~ 70°C)
Humidity 10% ~ 90%
Product Dimensions 13.4"(340mm) x 7.1"(180mm) x 2"(50mm)
Product Weight 3.3 lbs. (1.5kg)
