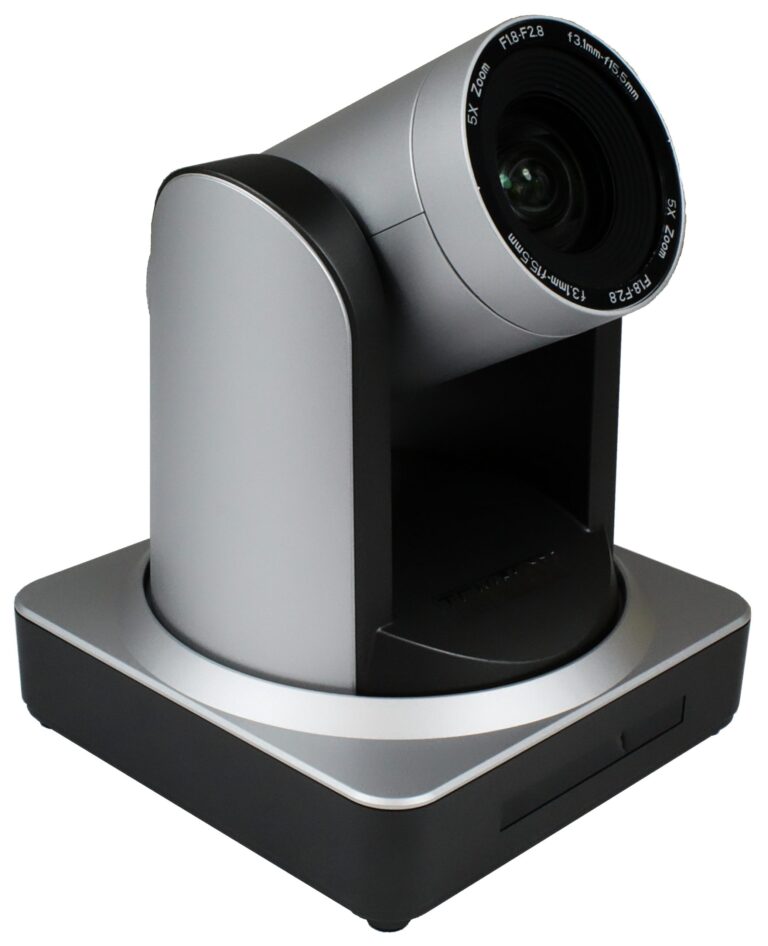

The TEK 79068-HDBT-5 conference camera is a high-definition single cable HDBaseT 1080P/60 PTZ camera with 5X optical zoom lens. With 16:9 aspect ratio, 2.1 Mega pixel CCD and 120 presets this camera makes an excellent camera for small videoconferencing rooms and lecture capture systems. The camera can be configured to use multiple resolutions and be ceiling, wall, or table-mounted. The camera can be controlled using IP commands, IR Remote, or RS232 serial.
| HDBase-T PTZ Camera, 5x Optical Zoom | Part Number: 79068-HDBT-5 |
|---|---|

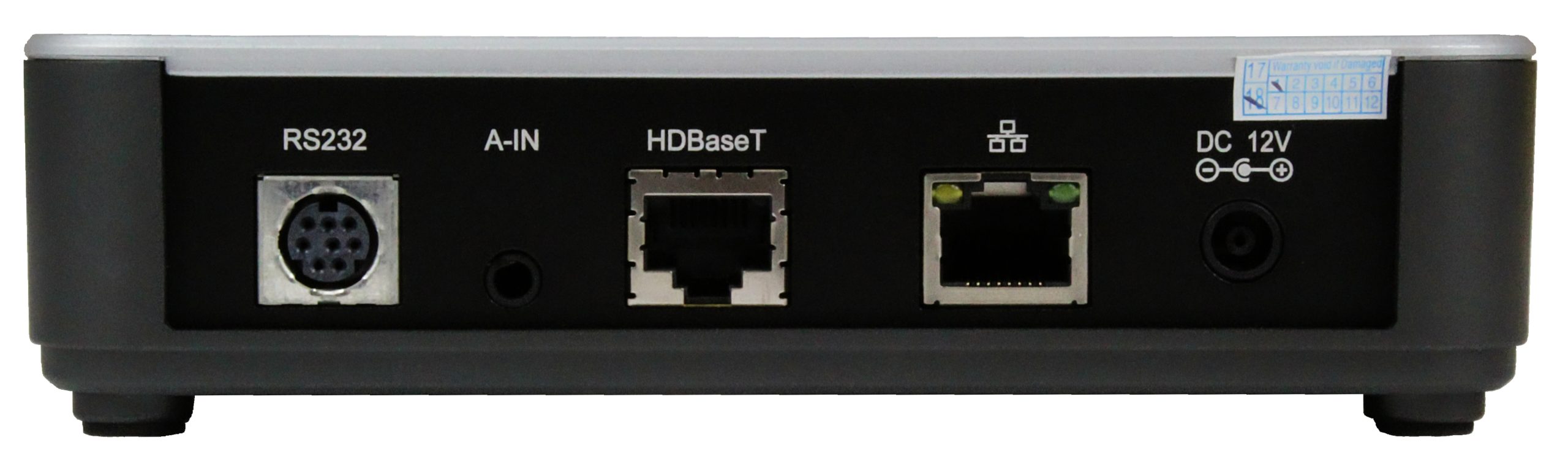

| Inputs | 1 RS232 (Mini-DIN, Female) 1 Stereo Audio (3.5mm, Female) 1 Ethernet (100M Base-TX, RJ45 Female) |
| Outputs | 1 HDBase-T (RJ45, Female) |
| Supported Video Resolutions | 1920x1080P@60/50/30/25Hz, 1280x720P@60/50/30/25Hz, 960x540P@30Hz, 640x360P@30Hz, 640x480P@30Hz, 352x288P@30Hz |
| Optical Zoom | 5x (f=3.6 ~ 18mm) |
| View Angle | 16.43° (tele) 80.9° (wide) |
| Aperture Priority (AV) | F1.6 ~ F3.0 |
| Digital Zoom | 10x |
| Digital Noise Reduction (DNR) | 2D & 3D DNR |
| White Balance | Auto / Manual / One-Push / 3000K / 4000K / 5000K / 6500K |
| Pan Rotation | ±170° |
| Tilt Rotation | -30° ~ 90° |
| Presets | 255 possible presets (10 presets by remote controller) |
| Power Supply | Input: 110~220 VAC, 2A (max) Output: DC 12V, 1A |
| Power Consumption | 12W (max) |
| Temperature | 14 ~ 122° F(-10 ~ 50° C) |
| Humidity | 20 ~ 80% |
| Product Dimensions | 5.9" (150mm) x 5.9" (150mm) x 6.66" (167.5mm) |
| Product Weight | 3.1 lbs. (1.4kg) |
