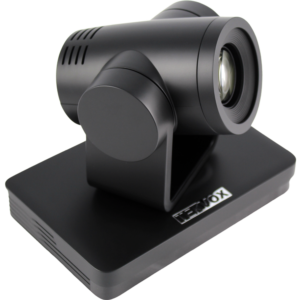

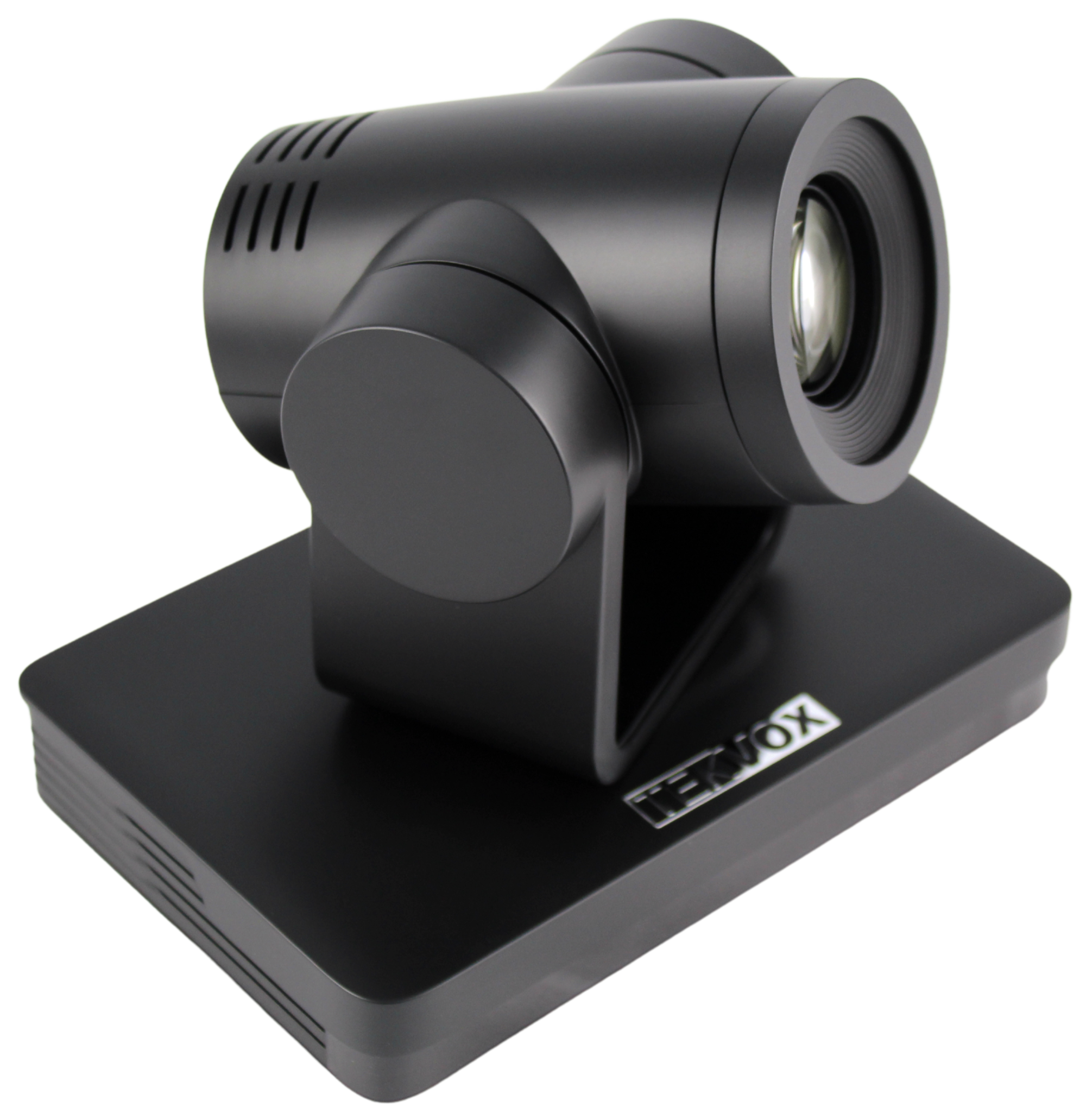

UV570 PTZ Auto-Tracking Camera – 20x Zoom

SKU: 79068-A20_G2

79068-A2-_G2_1 zoom
79068-A2-_G2_back zoom
79068-A2-_G2_1
79068-A2-_G2_back
Full Screen

Description

  • Simultaneous HDMI, SDI, USB 3.0, and LAN video outputs
  • Support full-HD resolutions with up to 60Hz framerates
  • 20x optical zoom for exceptional, lossless zoom in any space
  • Advanced, AI-driven auto-tracking and auto-focus algorithms
  • Outstandingly quiet and smooth PTZ motion with wide range of motion
  • Controllable via RS232/422/485, VISCA, PELCO-D/P, and IR remote
  • Supports power via PoE network connection or included power supply
Buy on Dealer StoreContact a Sales Rep

Description

TEKVOX’s UV570 is a professional-grade PTZ auto-tracking camera. With 20x optical zoom and support for full HD (1080p @ 60Hz) resolution, the UV570 delivers stunning video quality in any space. Advanced AI-driven auto-tracking keeps presenters in view at all times, without requiring any on-site configuration. The UV570 features simultaneous HDMI, USB 3.0, SDI, and LAN video outputs, guaranteeing seamless compatibility with any system. The UV570 also includes a gravity sensor to automatically re-orient the image when mounted upside-down for fast, easy installations. The camera is controllable via RS232, RS422, RS485, VISCA, PELCO-D, PELCO-P, or IR remote.

With exceptional auto-tracking performance, vivid image quality, extremely quiet and smooth PTZ movement, and effortless installation, the UV570 is the perfect option for demanding HyFlex, streaming, and conferencing applications.

UV570 PTZ Auto-Tracking Camera, 20x Optical Zoom Part Number: 79068-A20_G2
Focus 5.2 ~ 98mm
Field of View (FOV) 3.2° (Narrow) 56° (Wide)
Aperture Value (AV) F1.5 ~ F3.0
Effective Pixels 2.07M, 1/2.8 high-quality CMOS sensor
Video Format HDMI/SDI: Up to 1080p @ 60Hz USB 3.0: Up to 1920x1080 @ 30Hz
Range of Motion Pan: -170 ~ 170° Tilt: -30 ~ 90°
Movement Speed Pan: 0.1 ~ 100°/s Tilt: 0.1 ~ 45°/s
Minimum Illumination 0.5 Lux (F1.8, AGC ON)
Inputs/Outputs 1x HDMI Out (19-pin, female) 1x USB Out (USB 3.0, Type-B, Female, compatible with USB 2.0) 1x SDI Out (BNC, Female) 1x Audio In (3.5mm, Female)
Control Ports 1x LAN (10M/100M/1000M, RJ45, Female, supports PoE) 1x RS232 In (8-pin mini-DIN, Female) 1x RS232 Out (8-pin mini-DIN, Female) 1x RS422/485 (4-pin Phoenix)
Temperature 14 ~ 122°F (-10 ~ 50°C)
Humidity 20 ~ 80%
Power Supply Input: 110 ~ 220 VAC Output: DC 12V, 2.5AOR Power via PoE network connection
Power Consumption 12W (max)
Product Dimensions 7.13" (181mm) x 4.53" (115mm) x 5.87" (149mm)
Product Weight 2.54 lbs. (1.15kg)
Name
Category
Last Updated
Download

79068-A20_G2 Data Sheet

Data Sheets
01/19/2023
Data Sheets

HD/1080p HDMI/USB PTZ Camera – 5x Zoom

SKU: 79068-HDMI/USB-5

Broadcast-Quality UHD/4K HDMI PTZ Camera – 12x Zoom

SKU: 79068-4K-12B

HD/1080p Auto-Tracking PTZ Camera – 20x Zoom

SKU: 79068-Auto

HD/1080p HDBase-T PTZ Camera – 20x Zoom

SKU: 79068-HDBT-20
Summary

TEKVOX’s UV570 is a professional-grade PTZ auto-tracking camera. With 20x optical zoom and support for full HD (1080p @ 60Hz) resolution, the UV570 delivers stunning video quality in any space. Advanced AI-driven auto-tracking keeps presenters in view at all times, without requiring any on-site configuration. The UV570 features simultaneous HDMI, USB 3.0, SDI, and LAN video outputs, guaranteeing seamless compatibility with any system. The UV570 also includes a gravity sensor to automatically re-orient the image when mounted upside-down for fast, easy installations. The camera is controllable via RS232, RS422, RS485, VISCA, PELCO-D, PELCO-P, or IR remote.

With exceptional auto-tracking performance, vivid image quality, extremely quiet and smooth PTZ movement, and effortless installation, the UV570 is the perfect option for demanding HyFlex, streaming, and conferencing applications.

Specifications
UV570 PTZ Auto-Tracking Camera, 20x Optical Zoom Part Number: 79068-A20_G2
Focus 5.2 ~ 98mm
Field of View (FOV) 3.2° (Narrow) 56° (Wide)
Aperture Value (AV) F1.5 ~ F3.0
Effective Pixels 2.07M, 1/2.8 high-quality CMOS sensor
Video Format HDMI/SDI: Up to 1080p @ 60Hz USB 3.0: Up to 1920x1080 @ 30Hz
Range of Motion Pan: -170 ~ 170° Tilt: -30 ~ 90°
Movement Speed Pan: 0.1 ~ 100°/s Tilt: 0.1 ~ 45°/s
Minimum Illumination 0.5 Lux (F1.8, AGC ON)
Inputs/Outputs 1x HDMI Out (19-pin, female) 1x USB Out (USB 3.0, Type-B, Female, compatible with USB 2.0) 1x SDI Out (BNC, Female) 1x Audio In (3.5mm, Female)
Control Ports 1x LAN (10M/100M/1000M, RJ45, Female, supports PoE) 1x RS232 In (8-pin mini-DIN, Female) 1x RS232 Out (8-pin mini-DIN, Female) 1x RS422/485 (4-pin Phoenix)
Temperature 14 ~ 122°F (-10 ~ 50°C)
Humidity 20 ~ 80%
Power Supply Input: 110 ~ 220 VAC Output: DC 12V, 2.5AOR Power via PoE network connection
Power Consumption 12W (max)
Product Dimensions 7.13" (181mm) x 4.53" (115mm) x 5.87" (149mm)
Product Weight 2.54 lbs. (1.15kg)
