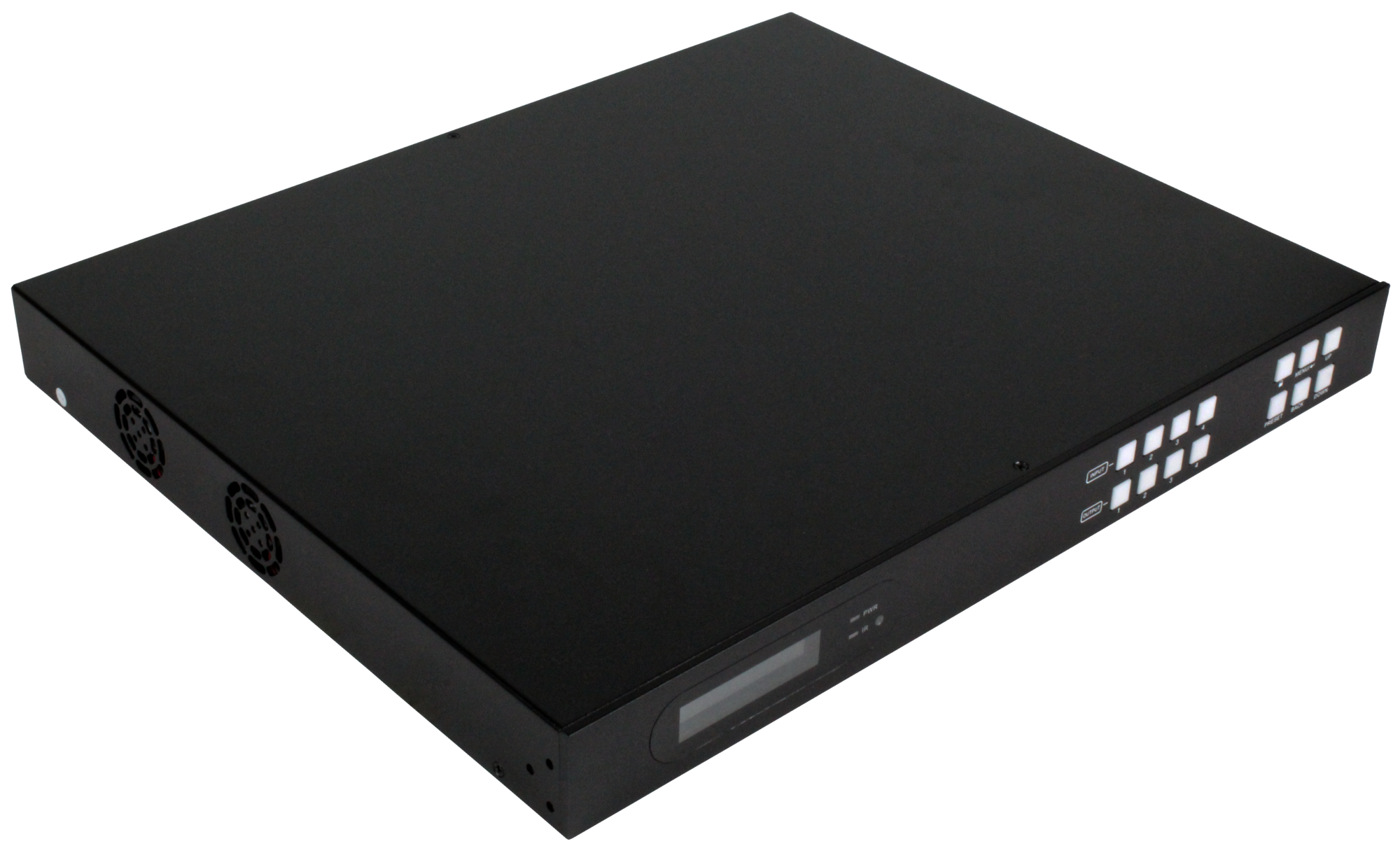

MUH44T-H2 4×4 HDMI Matrix Switcher

SKU: 79244

79244_1-Web zoom
79244_back zoom
79055+_RX_1 zoom
79244_front zoom

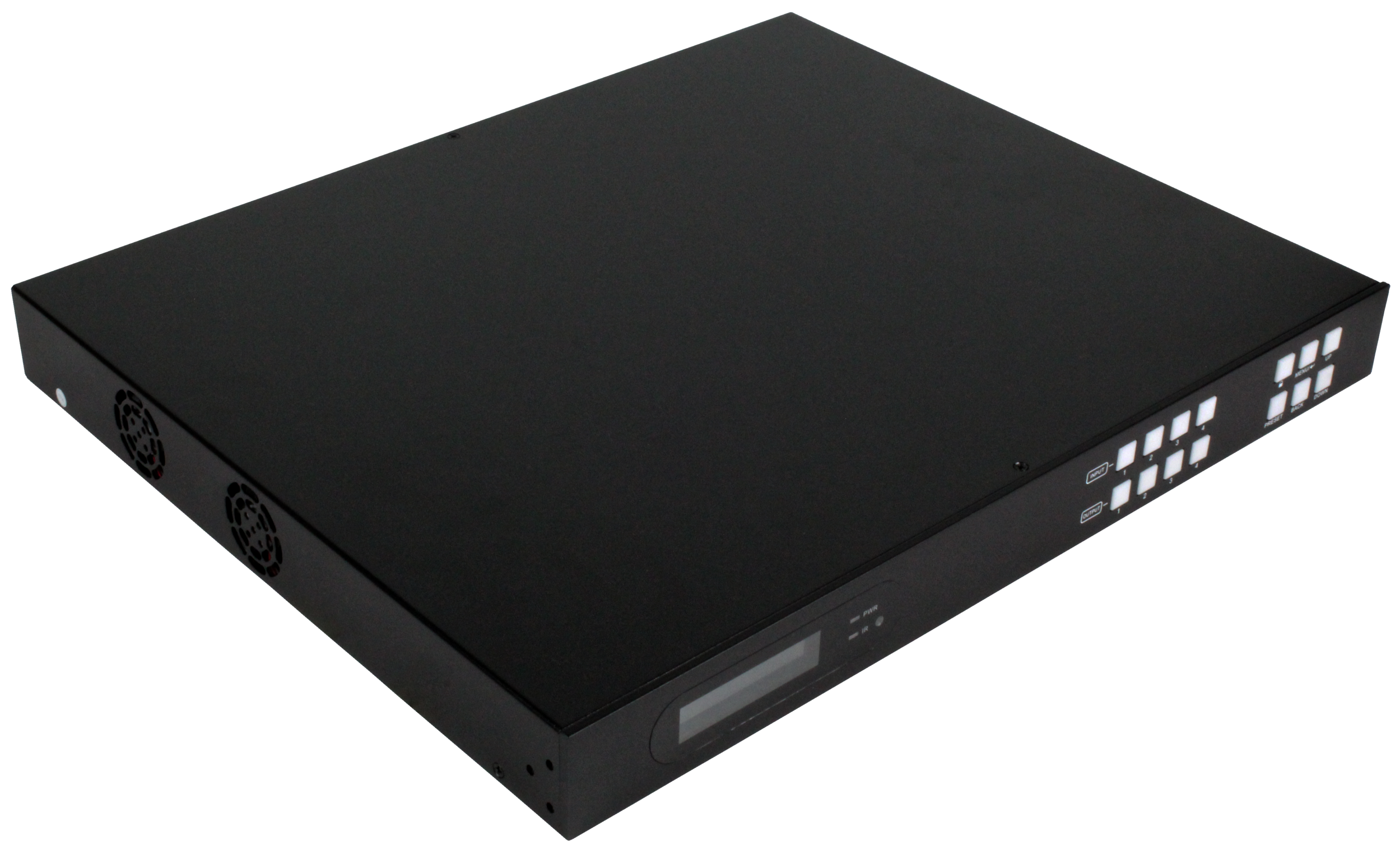

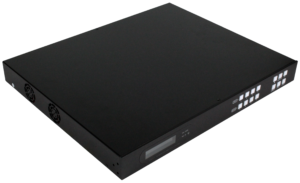

79244_1-Web

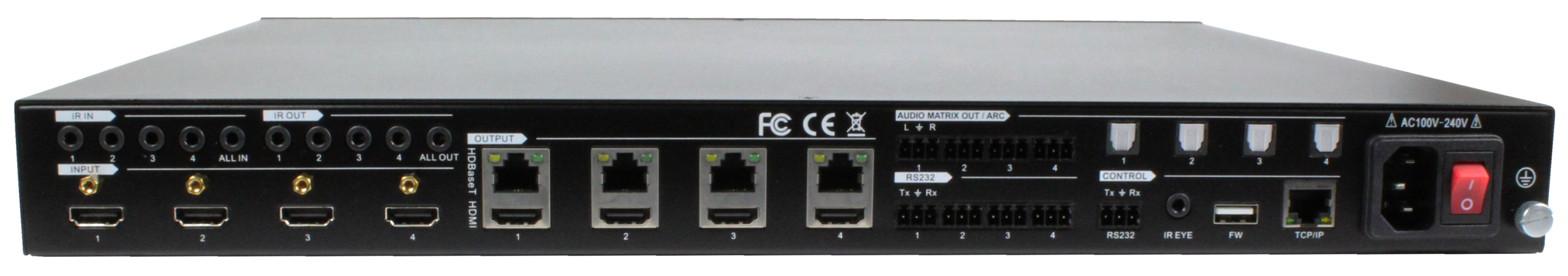

79244_back
79055+_RX_1

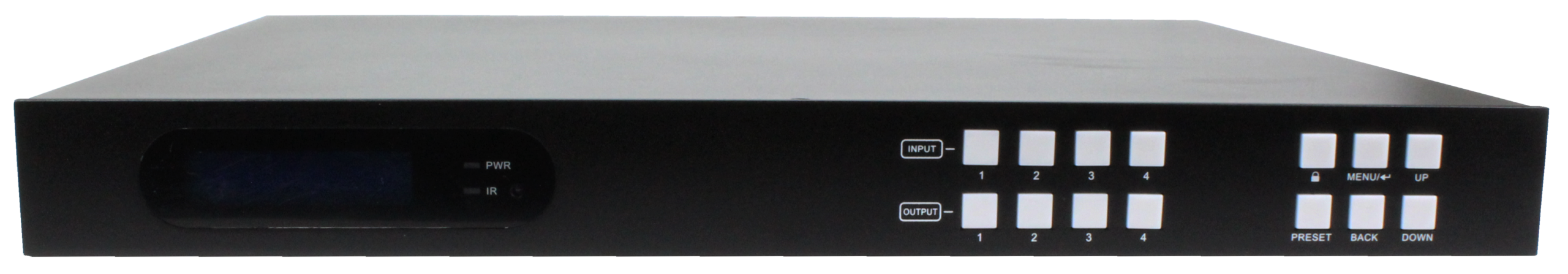

79244_front
Full Screen

Features

  • Supports up to 4Kx2K@60Hz & 1080p 3D resolutions
  • Independently route any input to any output with seamless matrix switching
  • Controllable via front panel buttons, IR, RS232, and TCP/IP
  • 4 HDMI inputs, and 4 pairs of mirrored HDMI & HDBaseT outputs
  • Supports HDMI 2.0 & HDCP2.2, and compliant with lower standards
  • Includes four PoC-capable HDBaseT receivers
Buy on Dealer StoreContact a Sales Rep

Description

TEKVOX’s MUH44T-H2 is a 4×4 matrix switcher with four HDMI 2.0 inputs and four sets of mirrored HDMI & HDBaseT Lite outputs. It supports stunning 4Kx2K@60Hz resolutions, and can transmit HD signals up to 230 feet (70m) without any compression.

The switcher is compatible with a wide range of video sources & displays thanks to its advanced EDID and HDCP handling. It can be controlled via bi-directional IR, RS232, TCP/IP commands, and front panel buttons, making it perfect for any use case. The MUH44T-H2’s 4 HDBaseT receivers can be powered via PoC, simplifying installation by eliminating the need for external power supplies.

The MUH44T-H2’s flexibility makes it ideal for distributing up to 4 sources to multiple displays and video monitors. Its four included receivers make for clean, reliable installations, and support PoC so that they can be powered via the HDBaseT connection.

TEK MUH44TP Matrix Switcher Part Number: 79244
Input 4 HDMI (Female)
Output 4 HDMI (Female) 4 HDBaseT (RJ45 Female)
Resolution Range Up to 4Kx2K @ 60Hz 4:4:4, HDR10, 1080p 3D
Bandwidth 18 Gbps
Transmission Distance 1080p: 230 feet (70m) 4K: 130 feet (40m)
EDID Management EDID data and manual EDID management
HDCP Supports HDCP 2.2 (HDCP 1.4–compliant)
Audio Outputs 4 Stereo audio (3 Pin Phoenix) 4 Optical audio (SPDIF/Toslink)
Audio Formats Supports PCM, Dolby Digital, DTS, and DTS-HD
Frequency Response 20Hz~20KHz ±3dB
Control Ports 4 IR OUT (3.5mm mini jack) 1 IR ALL OUT (3.5mm mini jack) 4 IR IN (3.5mm mini jack) 1 IR ALL IN (3.5mm mini jack) 1 IR EYE (3.5mm mini jack) 1 TCP/IP (Female RJ45) 5 RS232 (3 Pin Phoenix)
Power Supply 100VAC ~ 240VAC, 50/60Hz
Power Consumption 65W (max)
Temperature 23 ~ 131°F (-5 ~ 55°C)
Humidity 10% ~ 90%
Case Dimension 17.2"(436.4mm) x 1.73"(44mm) x 14"(356.6mm) 1U Rack-Mountable
Product Weight 7.28 lbs. (3.3kg)
Name
Category
Last Updated
Download

79244 MUH44T-H2 Data Sheet

Data Sheets
07/12/2021
Data Sheets

HDBaseT 4×4 Matrix Switcher

SKU: 79666

TFX-IBT+ 4K HDBaseT 100m PoE Input Card

SKU: 79253

MV71 4K Multiviewer Switcher

SKU: 79064

TFX-ISD SDI Input Card with Loop Output

SKU: 79214
Summary

TEKVOX’s MUH44T-H2 is a 4x4 matrix switcher with four HDMI 2.0 inputs and four sets of mirrored HDMI & HDBaseT Lite outputs. It supports stunning 4Kx2K@60Hz resolutions, and can transmit HD signals up to 230 feet (70m) without any compression.

The switcher is compatible with a wide range of video sources & displays thanks to its advanced EDID and HDCP handling. It can be controlled via bi-directional IR, RS232, TCP/IP commands, and front panel buttons, making it perfect for any use case. The MUH44T-H2's 4 HDBaseT receivers can be powered via PoC, simplifying installation by eliminating the need for external power supplies.

The MUH44T-H2’s flexibility makes it ideal for distributing up to 4 sources to multiple displays and video monitors. Its four included receivers make for clean, reliable installations, and support PoC so that they can be powered via the HDBaseT connection.

Specifications
TEK MUH44TP Matrix Switcher Part Number: 79244
Input 4 HDMI (Female)
Output 4 HDMI (Female) 4 HDBaseT (RJ45 Female)
Resolution Range Up to 4Kx2K @ 60Hz 4:4:4, HDR10, 1080p 3D
Bandwidth 18 Gbps
Transmission Distance 1080p: 230 feet (70m) 4K: 130 feet (40m)
EDID Management EDID data and manual EDID management
HDCP Supports HDCP 2.2 (HDCP 1.4–compliant)
Audio Outputs 4 Stereo audio (3 Pin Phoenix) 4 Optical audio (SPDIF/Toslink)
Audio Formats Supports PCM, Dolby Digital, DTS, and DTS-HD
Frequency Response 20Hz~20KHz ±3dB
Control Ports 4 IR OUT (3.5mm mini jack) 1 IR ALL OUT (3.5mm mini jack) 4 IR IN (3.5mm mini jack) 1 IR ALL IN (3.5mm mini jack) 1 IR EYE (3.5mm mini jack) 1 TCP/IP (Female RJ45) 5 RS232 (3 Pin Phoenix)
Power Supply 100VAC ~ 240VAC, 50/60Hz
Power Consumption 65W (max)
Temperature 23 ~ 131°F (-5 ~ 55°C)
Humidity 10% ~ 90%
Case Dimension 17.2"(436.4mm) x 1.73"(44mm) x 14"(356.6mm) 1U Rack-Mountable
Product Weight 7.28 lbs. (3.3kg)
Downloads
Name
Category
Last Updated
Download

79244 MUH44T-H2 Data Sheet

Data Sheets
07/12/2021
Data Sheets
